Mechanical basin mixer

Ref. 2445
Wall-mounted mixer with swivel spout L .200mm, sculptured lever
Mechanical basin mixer

Presentation

DESCRIPTION

Mechanical basin mixer

Ref. 2445

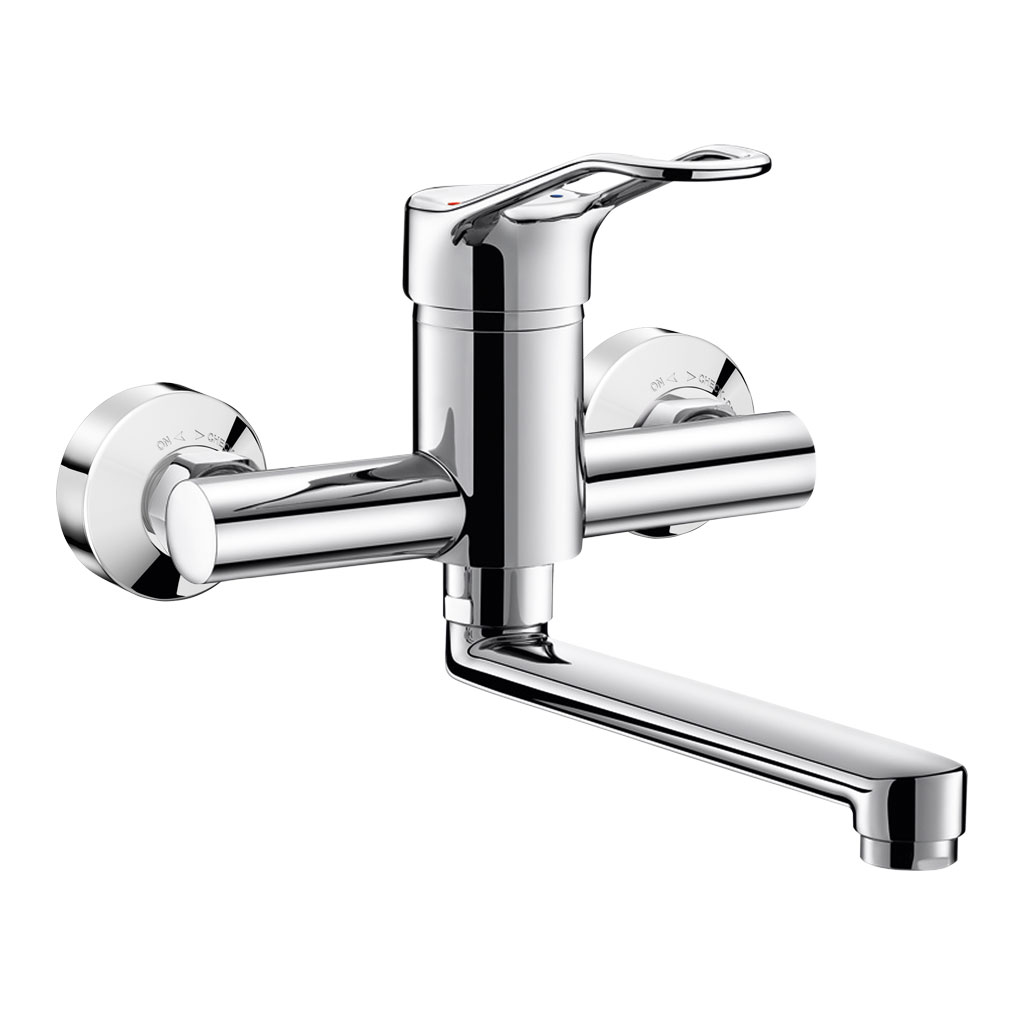

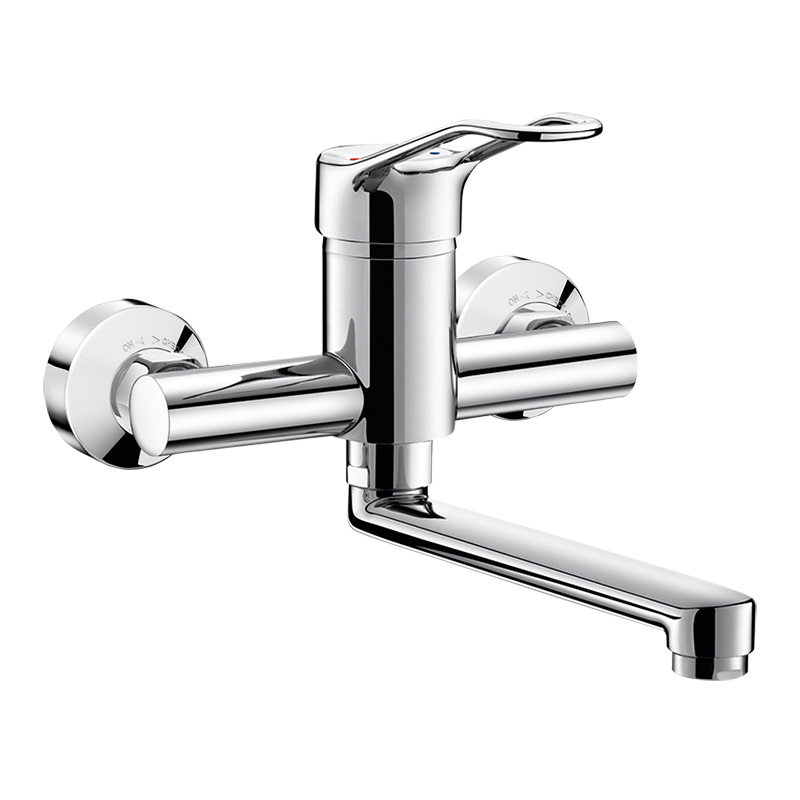

Wall-mounted mechanical basin mixer.
Mechanical mixer with flat, swivelling under spout L. 200mm with hygienic flow straightener.
Spout suitable for fitting a BIOFIL point-of-use filter.
Securitouch thermal insulation prevents burns.
Ø 40mm standard ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume.
Flow rate 5 lpm 3 bar.
Chrome-plated brass body.
Sculptured control lever.

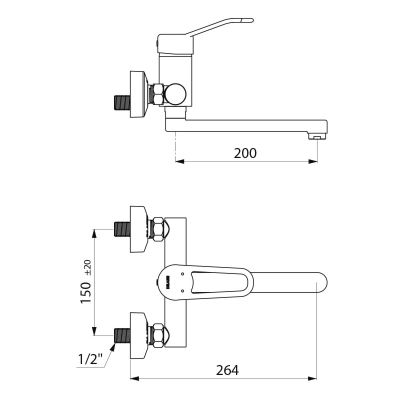

Mixer with 150mm centres, supplied with offset STOP/CHECK wall connectors M1/2" M3/4" ideal for hospitals.
Recommended installation height: 110 - 200mm above the basin surface.
Mechanical mixer ideal for healthcare facilities, retirement and care homes. hospitals and clinics.
Mixer suitable for people with reduced mobility.
Wall-mounted mixer with 30-year warranty.

ADVANTAGES

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Sécurité anti-brûlure

Pre-set maximum temperature limiter

Sécurité anti-brûlure

Securitouch thermal insulation prevents burns

Confort - Ergonomie - Déclenchement souple

Ergonomic sculptured control lever is easy to grip

Characteristics

TECHNICAL CHARACTERISTICS

Mechanical basin mixer

Ref. 2445
Connector M1/2"
Technology Securitouch
Spout length 200mm
Flow rate 5 lpm
Temperature limiter YES
Finish Chrome-plated
Certificates ACS Logo WRAS Logo DIN-DVGW Logo PZH Logo DoP
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Mechanical basin mixer

Ref. 2445

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

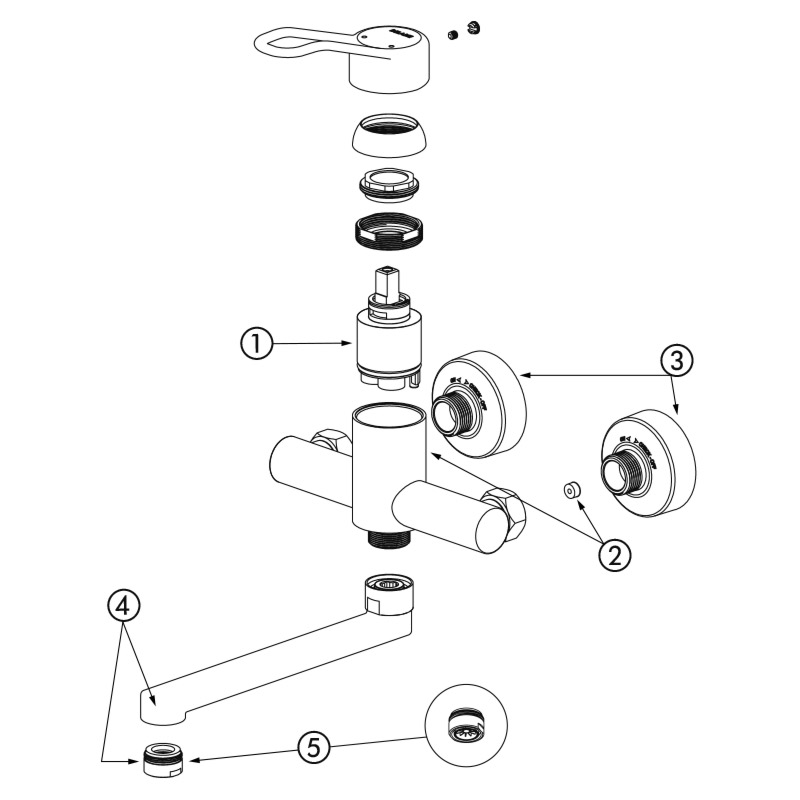

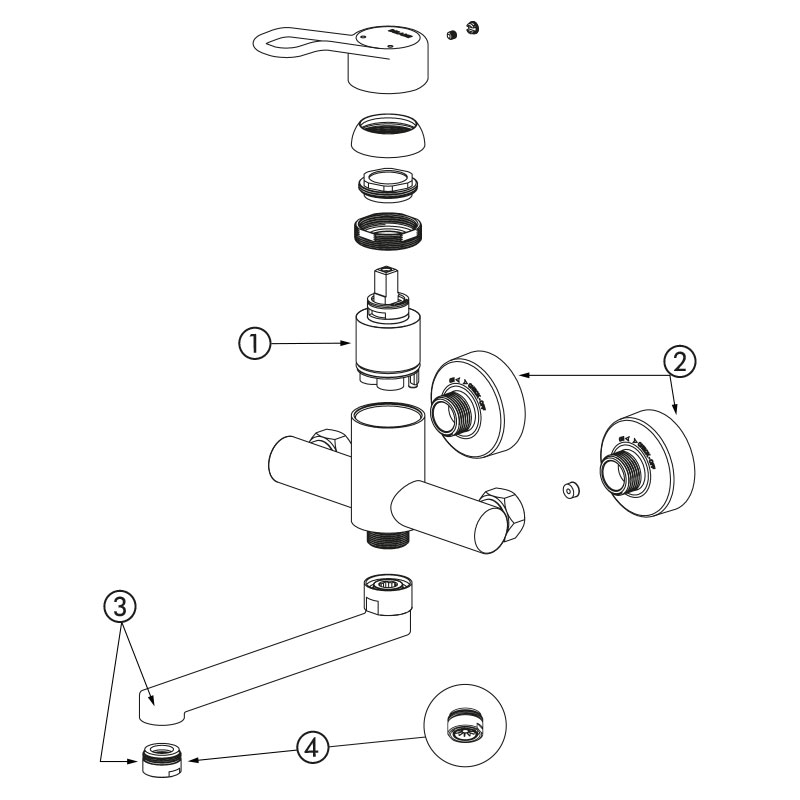

SPARE PARTS

Mechanical basin mixer

Ref. 2445
1. N009AG75
Ø40mm ceramic cartridge
2. 900005
Flow limiter
3. 855755.2P
Offset connectors
4. 943200
Flat swivelling spout
5. 921024.2P
Star-shaped flow straightener

VARIANTS

2446EP EP cartridge - swivel spout L. 150mm - sculpt lever, STOP/CHECK unions
2446EPS EP cartridge - swivel spout L. 150mm - sculpt lever, standard unions
2446LEP EP cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions
2446LEPS EP cartridge - swivel spout L. 150mm - Hygiene lever, standard unions
2445EP EP cartridge - Spout L. 200mm - Sculptured lever - Offset STOP/CHECK unions
2445EPS EP cartridge - Spout L. 200mm - Sculptured lever - Offset standard unions
2445LEP EP cartridge - Spout L. 200mm - Hygiene lever - Offset STOP/CHECK unions
2445LEPS EP cartridge - swivel spout L. 200mm - Hygiene lever, standard unions
2446 Std cartridge - swivel spout L.150mm - sculpt lever, STOP/CHECK unions
2446S Std cartridge - swivel spout L. 150mm - sculpt lever, standard unions
2446L Std cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions
2446LS Std cartridge - swivel spout L. 150mm - Hygiene lever, standard unions
2445S Std cartridge - Spout L.200mm - Sculptured lever - Offset standard unions
2445L Standard cartridge - Spout L. 200mm - Hygiene lever - offset STOP/CHECK unions
2445LS Standard cartridge - Spout L. 200mm - Hygiene lever - Offset standard unions
