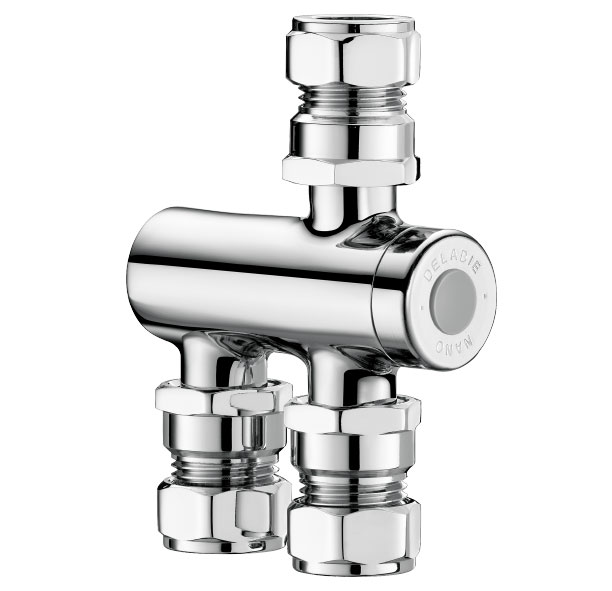

PREMIX NANO thermostatic mixing valve

Ref. 732116
For mixed water from 34 - 60°C
PREMIX NANO thermostatic mixing valve

Presentation

DESCRIPTION

PREMIX NANO thermostatic mixing valve

Ref. 732116
Hot water thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 - 2 taps or 1 shower.
Anti-scalding safety: immediate shut-off if cold or hot water fails.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Filters and non-return valves.
Minimum flow rate to operate: 3 lpm.
Thermal shocks are possible.
Chrome-plated brass body M½" inlets and Ø 15mm conical outlets.
30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

Automatic shut-off if hot or cold water fails

Confort - Ergonomie - Déclenchement souple

Stable temperature

Maintenance aisée - Installation aisée

Non-return valves and filters easily accessible

Endurance - Fiabilité

Thermo-reactive cell

Characteristics

TECHNICAL CHARACTERISTICS

PREMIX NANO thermostatic mixing valve

Ref. 732116
Connector M½" Ø 15mm
Technology Thermostatic
Height 70mm
Finish Chrome-plated
Certificates Logo WRAS Logo HKWSD Logo TMV
Warranty 30-Year

Downloads

DOWNLOADS

PREMIX NANO thermostatic mixing valve

Ref. 732116

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

732012 Nickel-plated body - Ø 15mm compression fittings
732216 Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732016 Chrome-plated body - Ø 15mm compression fittings
732115 Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732230 Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8"
732515 Connection kit for thermostatic mixing valves

VARIANTS

732012 Nickel-plated body - Ø 15mm compression fittings
732216 Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732016 Chrome-plated body - Ø 15mm compression fittings
732115 Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732230 Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8"
732515 Connection kit for thermostatic mixing valves
