DESCRIPTION

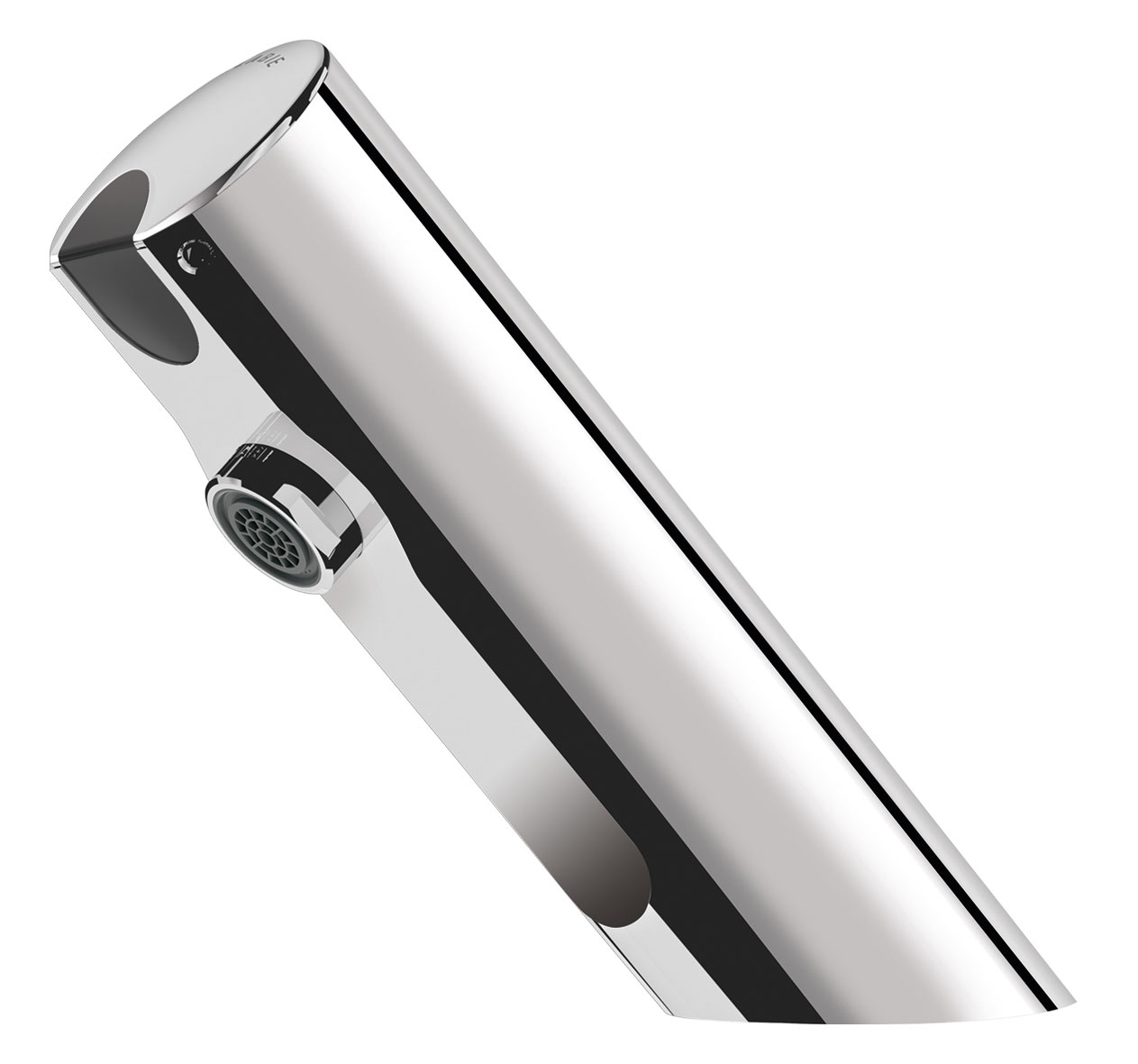

TEMPOMATIC 4 electronic tap
Ref. 440100Deck-mounted electronic basin tap:
230/6V recessed mains supply.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the tap.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexible F3/8” with filter.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Suitable for people with reduced mobility.
30-year warranty.
230/6V recessed mains supply.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the tap.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexible F3/8” with filter.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Integrated solenoid valve
Recessed mains supply
TECHNICAL CHARACTERISTICS
TEMPOMATIC 4 electronic tap
Ref. 440100| Supply | 230/6V mains supply (recessed) |
| Connector | F3/8" |
| Technology | Electronic |
| Drop height | 70mm |
| Spout length | 105mm |
| Flow rate | 3 lpm |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Spare parts
SPARE PARTS
TEMPOMATIC 4 electronic tap
Ref. 440100
| 1. | 490452T |
|
Electronic control unit |
| 2. | 479650 |
|
Solenoid valve |
| 3. | 922016.2P |
|
Flow straightener |
| 4. | 490240 |
|
Power supply |
| 5. | 60440.10P |
|
Filter with mesh screen |
VARIANTS
| 440000 | Mains supply, recessed unit - With stopcocks | ||
|---|---|---|---|
| 44000015 | Mains supply, recessed unit - Stopcocks - Ø15mm compression fittings | ||
| 440006 | Battery operated - With stopcocks | ||
| 44000615 | Battery operated - With stopcocks - Ø15mm compression fittings | ||
| 440101 | Mains supply, plug - Without stopcocks | ||
| 440106 | Battery operated - Without stopcocks |
