TEMPOMATIC tap with BIOCLIP removable spout
Ref. 20804T215
Wall-mounted electronic tap with mains supply
Wall-mounted electronic tap with mains supply
DESCRIPTION
TEMPOMATIC tap with BIOCLIP removable spout
Ref. 20804T215Wall-mounted electronic basin tap for installation on panels.
Electronic tap with removable BIOCLIP spout.
Infrared tap supplied with 2 removable stainless steel spouts L. 77mm.
Separate IP65 electronic control unit.
230/12V mains supply with transformer.
Base and spout with smooth interiors (reduces bacterial development).
Adjustable duty flush (pre-set at ~60 seconds every 24 hours after last use).
Flow rate limited to 4 lpm at 3 bar.
Shock-resistant infrared presence detection sensor.
Separate sensor for mounting on panels.
M3/8" solenoid valve with filter and Ø 15mm conical inlets.
Ø 60mm chrome-plated brass base.
Anti-blocking security.
Recommended installation height: 110 - 200mm above the basin surface.
Electronic tap ideal for healthcare facilities, retirement and care home, hospitals and clinics.
Electronic tap suitable for people with reduced mobility.
30-year warranty.
Two shut-off options:
- standard mode: timed flow with automatic shut-off.
- ON/OFF mode: user shuts off flow voluntarily or automatic shut-off after 30 minutes of flow.
Thermal shocks are possible.
Mount the sensor to the side of the tap in the ON/OFF mode.
Electronic tap with removable BIOCLIP spout.
Infrared tap supplied with 2 removable stainless steel spouts L. 77mm.
Separate IP65 electronic control unit.
230/12V mains supply with transformer.
Base and spout with smooth interiors (reduces bacterial development).
Adjustable duty flush (pre-set at ~60 seconds every 24 hours after last use).
Flow rate limited to 4 lpm at 3 bar.
Shock-resistant infrared presence detection sensor.
Separate sensor for mounting on panels.
M3/8" solenoid valve with filter and Ø 15mm conical inlets.
Ø 60mm chrome-plated brass base.
Anti-blocking security.
Recommended installation height: 110 - 200mm above the basin surface.
Electronic tap ideal for healthcare facilities, retirement and care home, hospitals and clinics.
Electronic tap suitable for people with reduced mobility.
30-year warranty.
Two shut-off options:
- standard mode: timed flow with automatic shut-off.
- ON/OFF mode: user shuts off flow voluntarily or automatic shut-off after 30 minutes of flow.
Thermal shocks are possible.
Mount the sensor to the side of the tap in the ON/OFF mode.
ADVANTAGES

Automatic duty flush limits bacterial development

Hygiene: spout can be removed and descaled inside

Hygiene: smooth interior reduces bacteria

No manual contact: infrared sensor

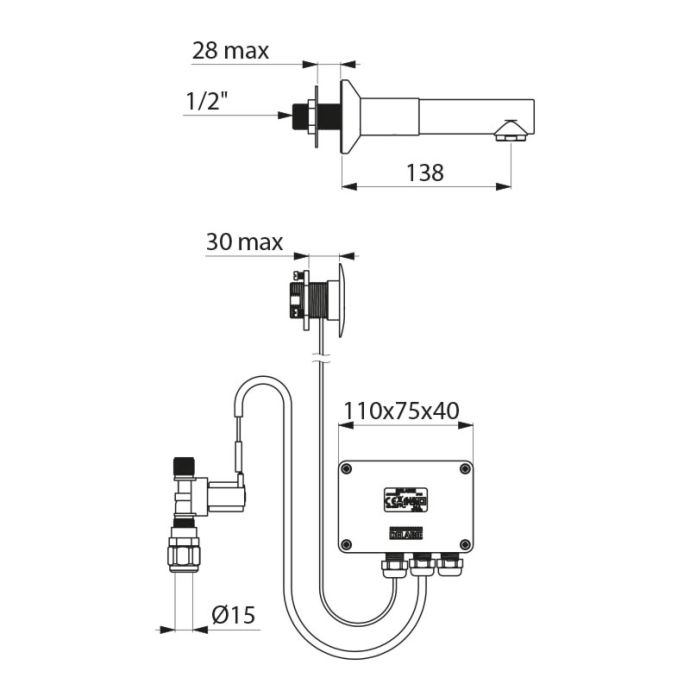

TECHNICAL CHARACTERISTICS
TEMPOMATIC tap with BIOCLIP removable spout
Ref. 20804T215Connector | Ø 15mm |
Technology | Wall-mounted electronic tap |
Depth | 138mm |
Spout length | 77mm |
Flow rate | 4 lpm at 3 bar |
Finish | Chrome-plated brass |
Certificates |
![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts

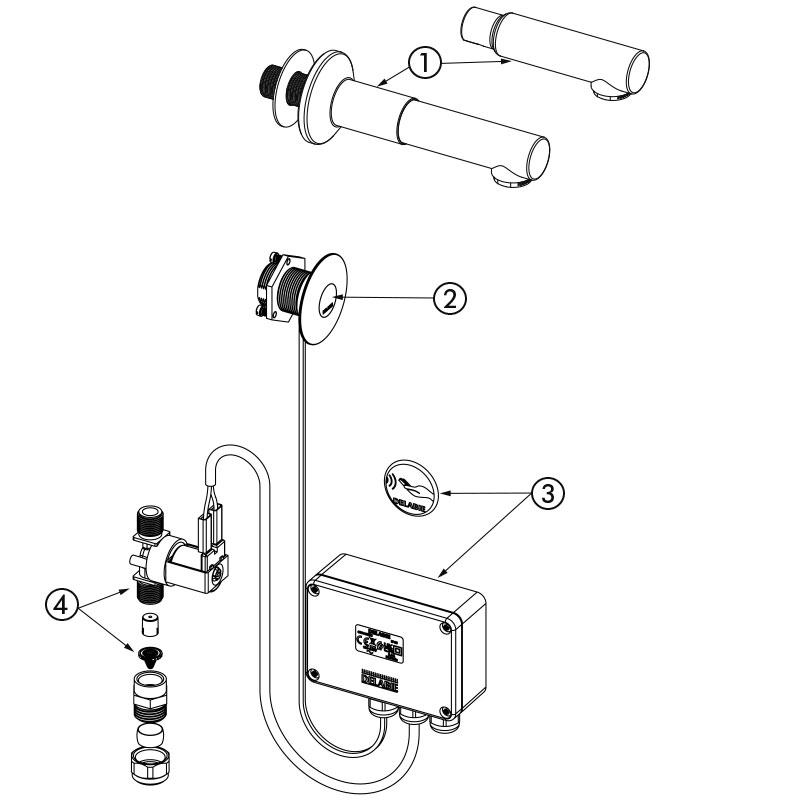

SPARE PARTS
TEMPOMATIC tap with BIOCLIP removable spout
Ref. 20804T215
1. | 1804T2 |
|
Wall-mounted base with removable BIOCLIP spout |
2. | 495149 |
|
Detector |
3. | 495445BC |
|
Electronic control unit |
4. | 495612 |
|
Solenoid valve |
VARIANTS
20801T2 | Mains supply - removable disposable spout - M3/8" | ||
---|---|---|---|
20804T2 | Mains supply - removable stainless steel spout - M3/8" |
