TEMPOMATIC MIX electronic mixer

Ref. 20464T1
Swivelling spout H. 165mm L. 160mm
TEMPOMATIC MIX electronic mixer

Presentation

DESCRIPTION

TEMPOMATIC MIX electronic mixer

Ref. 20464T1

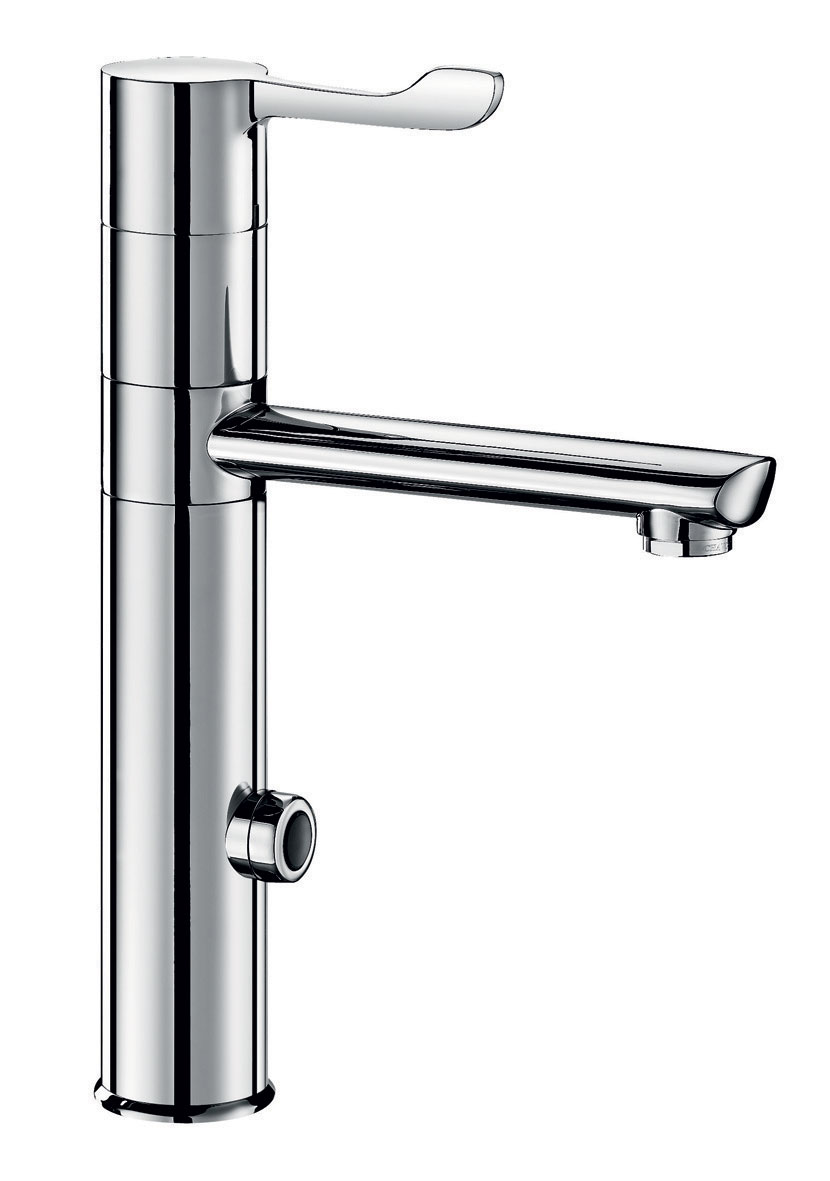

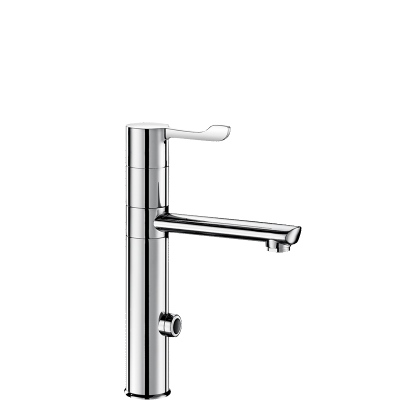

Electronic basin mixer with high, swivelling spout L. 160mm H. 165mm.
Independent IP65 electronic control unit.
123 6V Lithium battery-operated.
Flow rate pre-set at 4 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm, with scale-resistant flow straightener suitable for BIOFIL point-of-use filters.
Body and spout with smooth interiors (reduces niches where bacteria can develop).
Adjustable duty flush (pre-set flush for approximately 60 seconds every 24 hours after the last use, to prevent stagnation in the water supply if the system is not used for prolonged periods).
Thermal shocks are possible.
Shock-resistant infrared presence detection sensor.
Chrome-plated solid brass body and spout; fixing reinforced via 2 stainless steel rods.
Hygiene lever L. 100mm controls temperature.
PEX flexibles with and M3/8" solenoid valves.
Anti-blocking security.
The solenoid valves are upstream of the mixing chamber.
30-year warranty.

ADVANTAGES

Rinçage périodique

Automatic anti-bacterial duty flush

Corps à intérieur lisse

Smooth body/spout interior, reduces bacteria

Economie d'eau

Split delivery, flow rate pre-set at 4 lpm

Sans contact manuel

Infrared detection with no manual contact

Characteristics

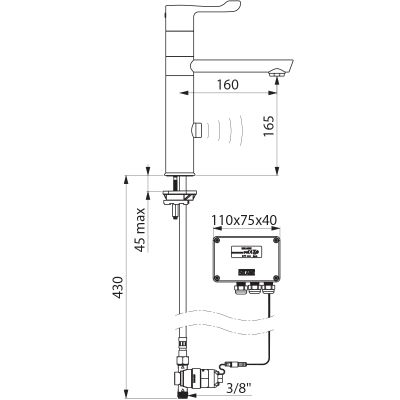

TECHNICAL CHARACTERISTICS

TEMPOMATIC MIX electronic mixer

Ref. 20464T1
Supply 6V Lithium batteries
Connector M3/8"
Technology Electronic
Height 280mm
Drop height 165mm
Spout length 160mm
Flow rate 4 lpm
Finish Chrome-plated brass
Certificates ACS Logo NF Logo CE DVGW-CERT SINTEF Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

TEMPOMATIC MIX electronic mixer

Ref. 20464T1

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

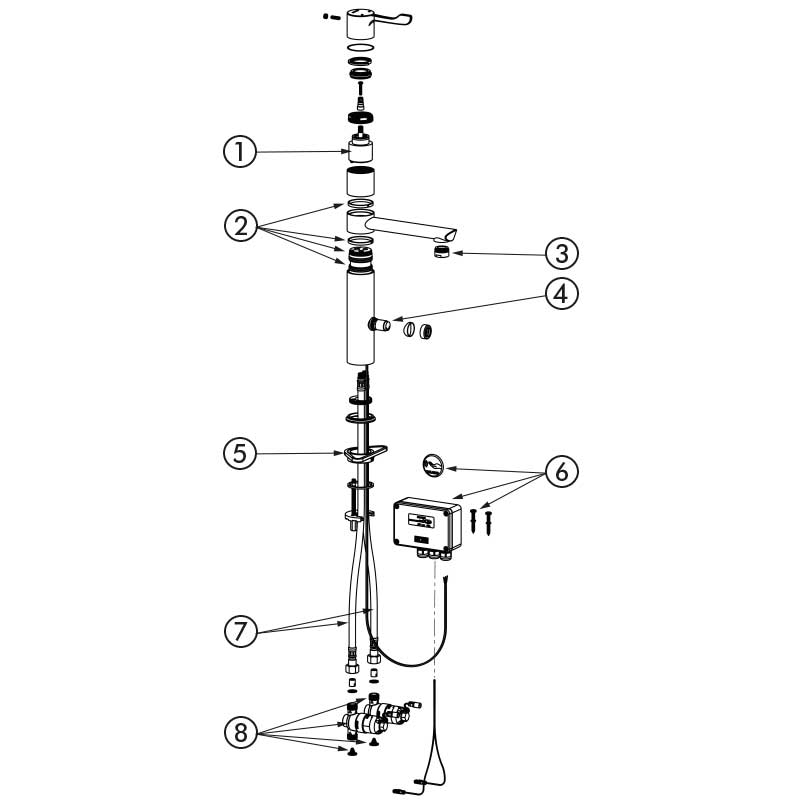

SPARE PARTS

TEMPOMATIC MIX electronic mixer

Ref. 20464T1
1. N201AG75
Ø40mm sequential ceramic cartridge
2. 753256
Replacement O-ring joints
3. 921024.2P
Star-shaped flow straightener
4. CEL378V
Detector
5. 256P
Fixing plate
6. 495446BC
Electronic control unit
7. 2510SES
Locking kit
8. FLEXPEX3
F3/8" PEX flexible hoses
9. 495606
Solenoid valve

VARIANTS

20871T1 Mains supply - removable disposable spout H. 160mm H. 180mm
20870T1 Mains supply - removable stainless steel spout H. 160mm L. 183mm
20164T1 Mains supply - swivelling spout, cannot be removed H. 165mm L. 160mm

VARIANTS

20871T1 Mains supply - removable disposable spout H. 160mm H. 180mm
20870T1 Mains supply - removable stainless steel spout H. 160mm L. 183mm
20164T1 Mains supply - swivelling spout, cannot be removed H. 165mm L. 160mm
