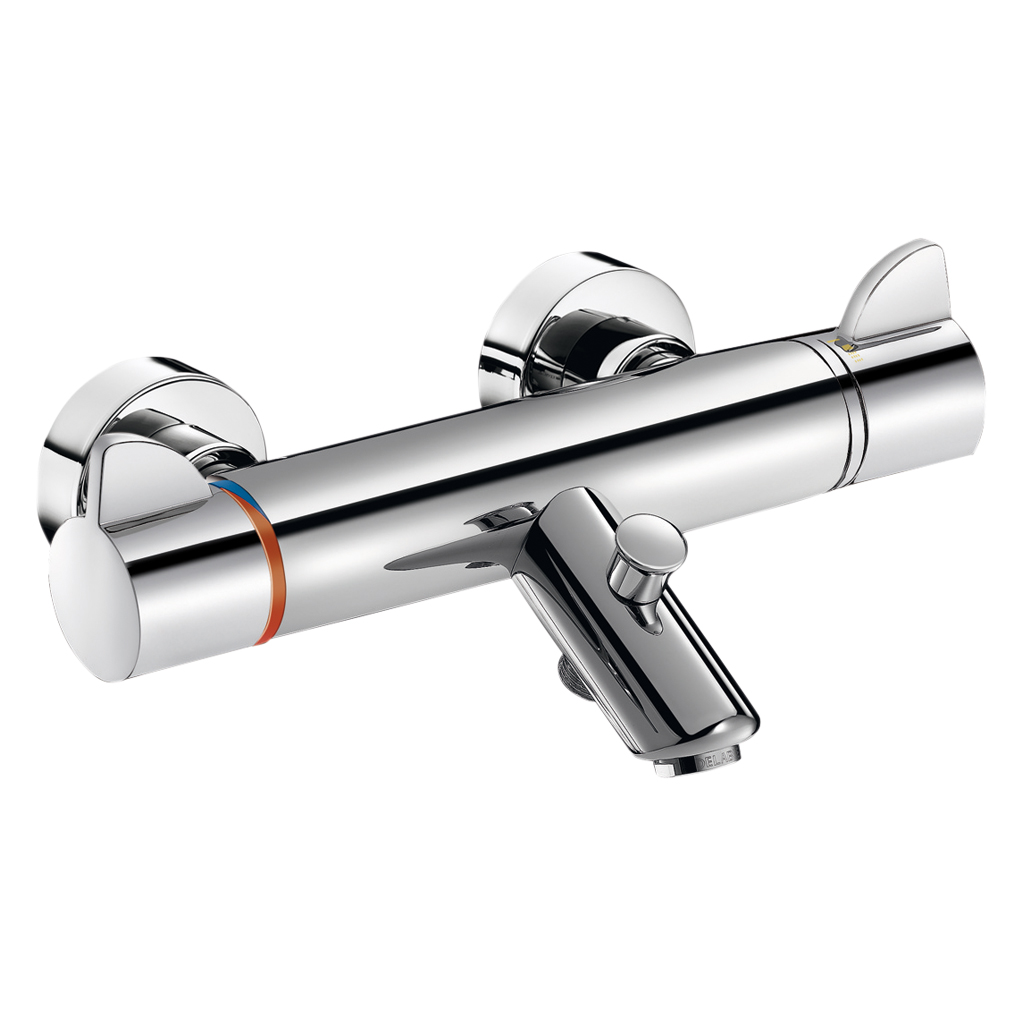

SECURITHERM Securitouch thermostatic shower-bath mixer

Ref. H9752S
Dual control thermostatic shower mixer
SECURITHERM Securitouch thermostatic shower-bath mixer

Presentation

DESCRIPTION

SECURITHERM Securitouch thermostatic shower-bath mixer

Ref. H9752S
SECURITHERM dual control thermostatic shower-bath mixer.
Mixer with anti-scalding safety: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic cartridge for temperature adjustment.
¼-turn ceramic head for flow rate adjustment.
Temperature control from 25 - 41°C.
Double temperature limiter: first limiter set at 38°C (can be overridden), second limiter set at 41°C.
Straight forward thermal shock procedure without removing the control knob or shutting off the cold water supply
Thermostatic mixer fitted with an automatic diverter with low pressure lock maintains the shower position even if the flow rate is too low.
Chrome-plated brass body and ERGO control knobs.
M1/2" shower outlet.
F3/4" inlets with integrated filters and non-return valves.
Mixer with M1/2" M3/4" offset standard wall connectors.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Shower mixer with 30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

SECURITHERM: Optimum anti-scalding safety

Sécurité anti-brûlure

Double maximum temperature limiter

Sécurité anti-brûlure

Securitouch anti-scalding thermal insulation

Confort - Ergonomie - Déclenchement souple

Thermostatic: total temperature stability

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM Securitouch thermostatic shower-bath mixer

Ref. H9752S
Connector M1/2"
Technology SECURITHERM Securitouch thermostatic mixer

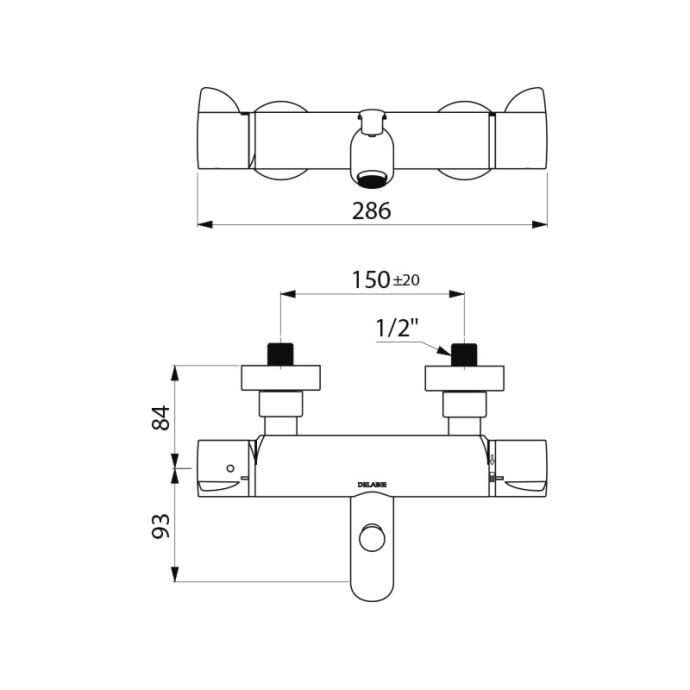

Width 286mm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo PZH Logo DoP
Warranty 30-Year

Downloads

DOWNLOADS

Mitigeur bain-douche thermostatique SECURITHERM

Ref. H9752S

To download one or several documents linked to this product, please select the type of file you require :

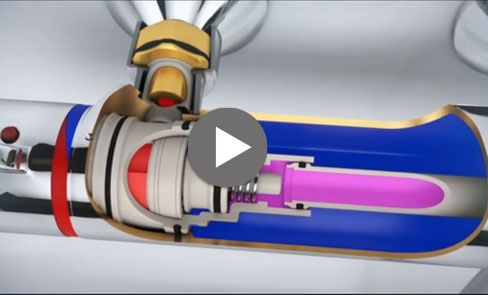

Thermostatic shower mixer: anti-scalding safety & infection control
