Shower kit with thermostatic mixer
Ref. H9741SKIT
Shower kit with thermostatic mixer
Shower kit with thermostatic mixer
DESCRIPTION

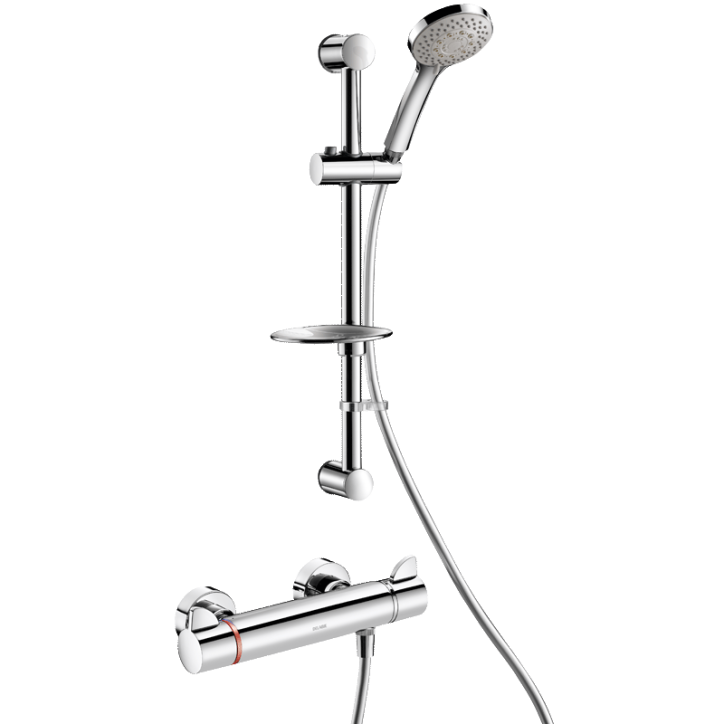

Shower kit with thermostatic mixer

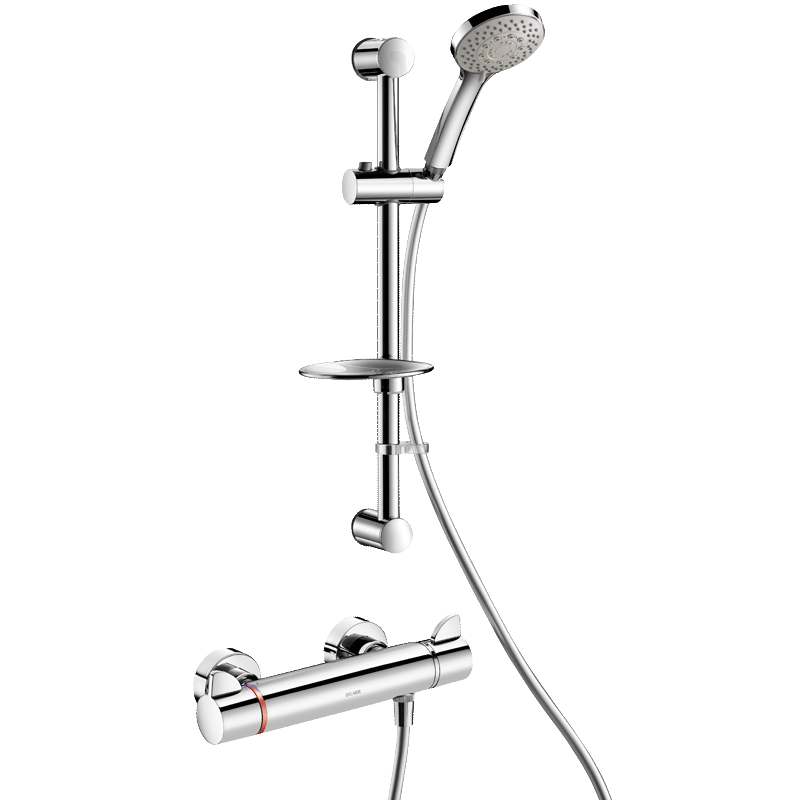

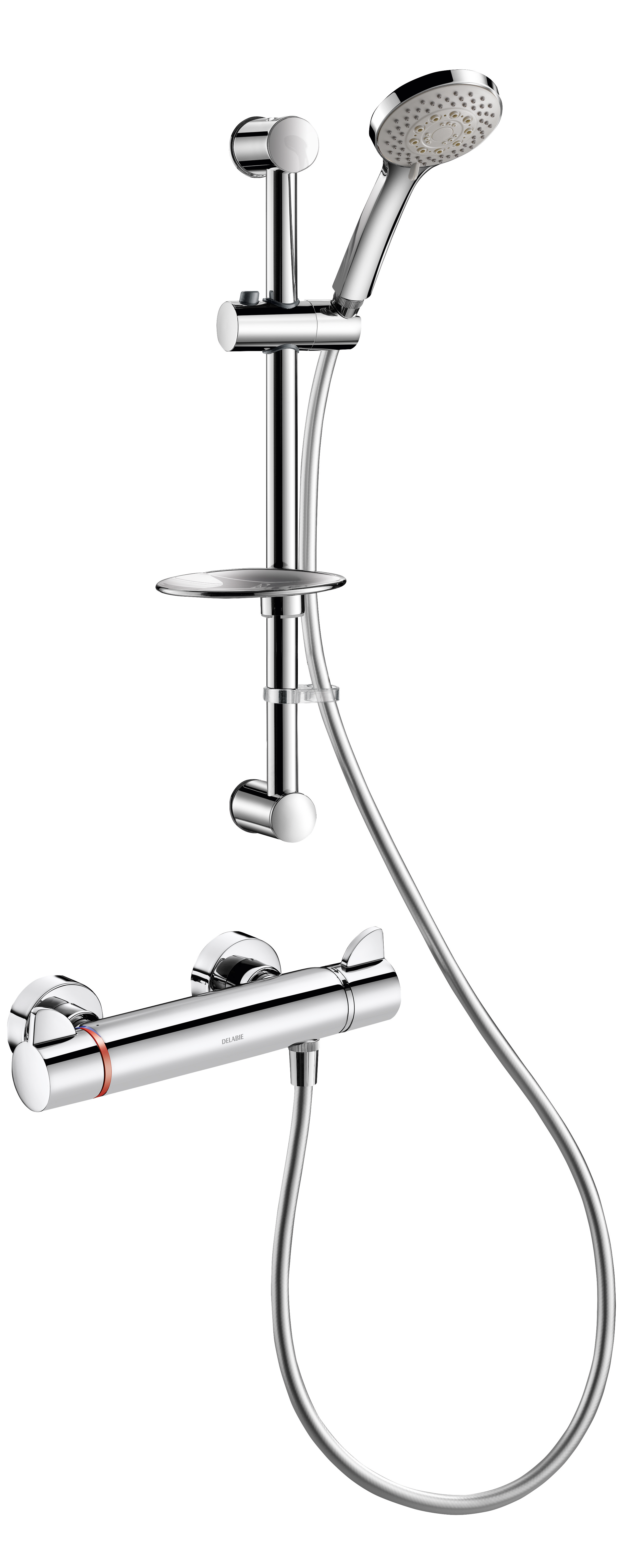

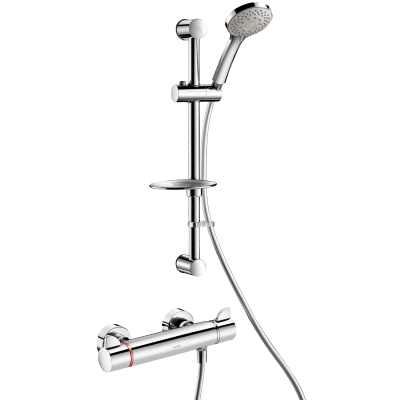

Ref. H9741SKITShower riser rail with thermostatic dual control mixer.
Shower kit with SECURITHERM thermostatic shower mixer.
Mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic cartridge adjusts the temperature.
¼-turn ceramic valve head adjusts the flow rate.
Temperature control from 25°C up to 41°C.
Double temperature limiter: 1st limiter set at 38°C, 2nd limiter set at 41°C.
Thermal shocks are possible without removing the control knob or shutting off the cold water.
Flow rate regulated at 9 lpm.

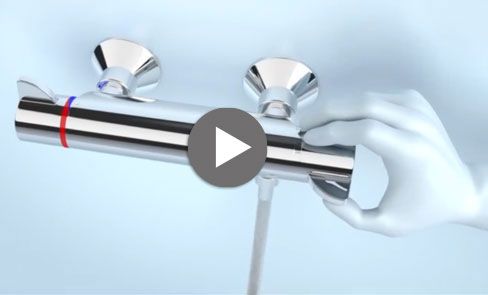

Chrome-plated body and ERGO controls.
M1/2" shower outlet.
Filters and non-return valves integrated in the inlets, F3/4".
Mixer with offset standard wall connectors.

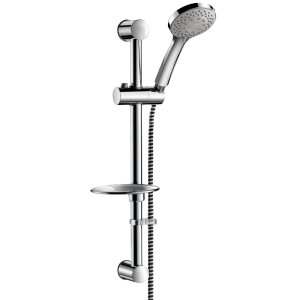

• Sliding shower head holder (ref. 813) on a chrome-plated riser rail (ref. 821) with soap dish and flexible shower hose (ref. 836T1).
• Shower head retaining collar (ref. 830).
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics
Mixer suitable for people with reduced mobility.
Shower kit with 30-year warranty.
Shower kit with SECURITHERM thermostatic shower mixer.
Mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic cartridge adjusts the temperature.
¼-turn ceramic valve head adjusts the flow rate.
Temperature control from 25°C up to 41°C.
Double temperature limiter: 1st limiter set at 38°C, 2nd limiter set at 41°C.
Thermal shocks are possible without removing the control knob or shutting off the cold water.
Flow rate regulated at 9 lpm.
Chrome-plated body and ERGO controls.
M1/2" shower outlet.
Filters and non-return valves integrated in the inlets, F3/4".
Mixer with offset standard wall connectors.
• Sliding shower head holder (ref. 813) on a chrome-plated riser rail (ref. 821) with soap dish and flexible shower hose (ref. 836T1).
• Shower head retaining collar (ref. 830).
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics
Mixer suitable for people with reduced mobility.
Shower kit with 30-year warranty.
ADVANTAGES
SECURITHERM: Optimum anti-scalding safety
Double maximum temperature limiter

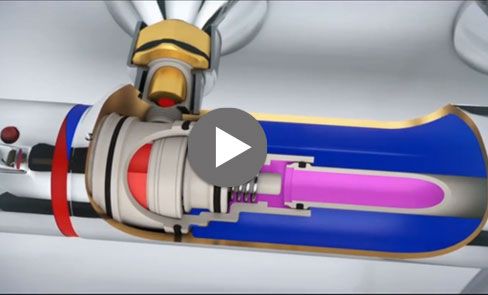

Securitouch thermal insulation prevents burns
Thermostatic: total temperature stability
TECHNICAL CHARACTERISTICS
Shower kit with thermostatic mixer

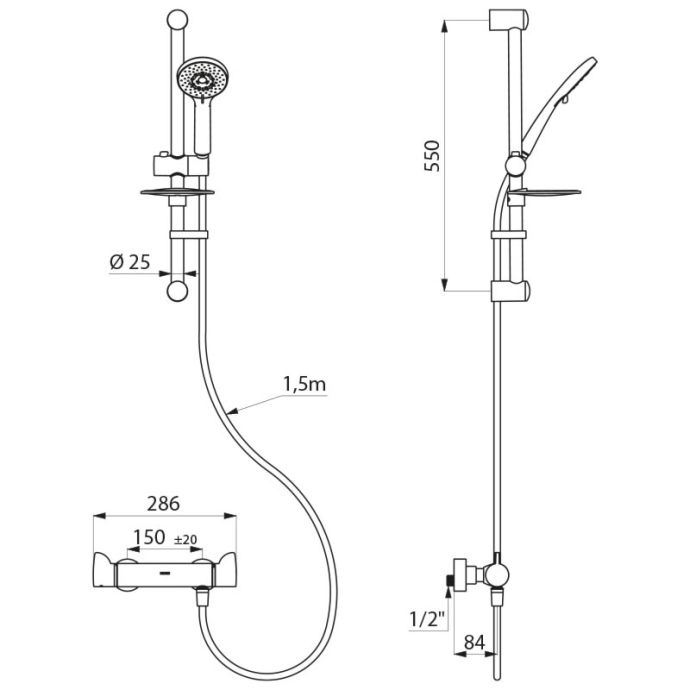

Ref. H9741SKITConnector | M1/2" |
Technology | SECURITHERM Securitouch thermostatic mixer, |
Depth | 84mm |
Length | 286mm |
Flow rate | 9 lpm |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

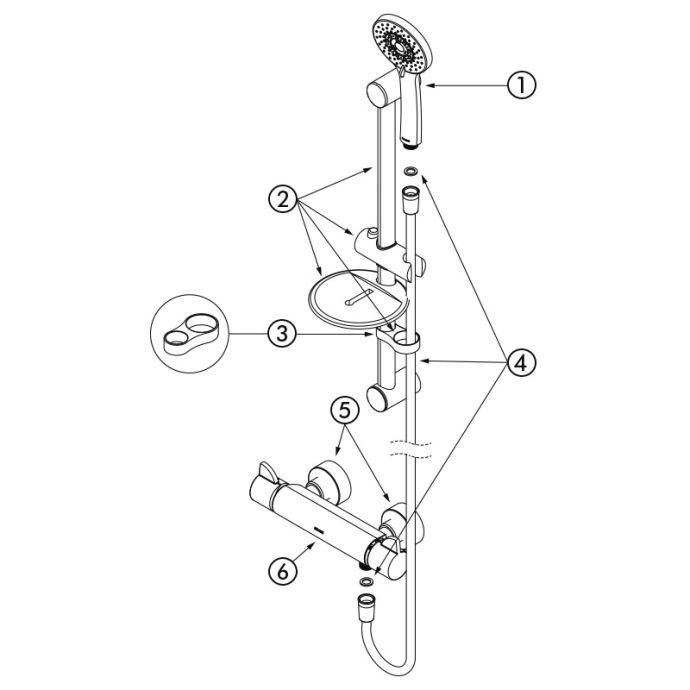

SPARE PARTS
Shower kit with thermostatic mixer
Ref. H9741SKIT1. | 813 |
|

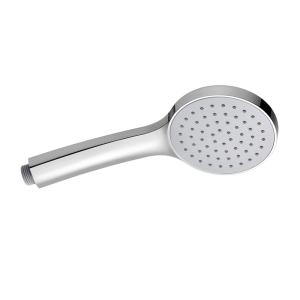

Chrome-plated shower head with 5 jets, M1/2" |
2. | 821 |
|
Chrome-plated shower rail |
3. | 830 |
|
Shower hose retaining collar |
4. | 836T1 |
|
SILVER flexible shower hose |
5. | 856794.2P |
|
Offset union |
6. | 9741 |
|
SECURITHERM thermostatic shower mixer |
VARIANTS
H9741KIT | Offset STOP/CHECK connectors |
---|
VARIANTS
H9741KIT | Offset STOP/CHECK connectors |
---|
