SECURITHERM Securitouch thermostatic shower mixer

Ref. H9741S
Dual control thermostatic mixer
SECURITHERM Securitouch thermostatic shower mixer

Presentation

DESCRIPTION

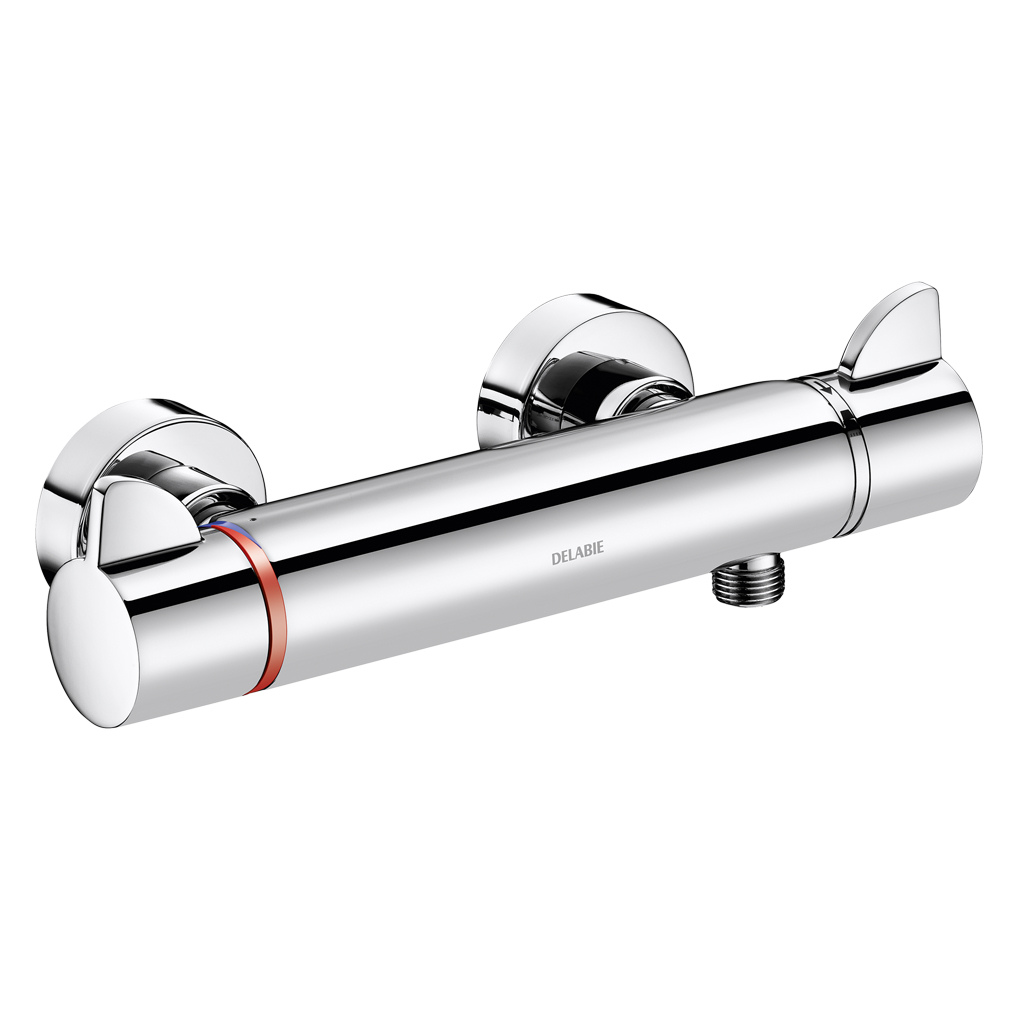

SECURITHERM Securitouch thermostatic shower mixer

Ref. H9741S
SECURITHERM dual control thermostatic shower mixer.
Mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.
Securitouch thermal insulation to prevent burns.
Scale-resistant thermostatic cartridge for temperature adjustment.
¼ -turn ceramic head for flow rate adjustment.
Temperature control from 25 - 41°C.
Double temperature limiter: 1st limiter set at 38°C can be overridden, 2nd limiter set at 41°C.
Thermal shocks are are easy to undertake without removing the control knob or shutting off the cold water.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and ERGO controls.
M1/2" shower outlet.
F3/4" inlets with integrated filters and non-return valves.
Wall-mounted mixer with M1/2" M3/4" off-set standard connectors.
Mixer ideal for healthcare facilities, retirement and care home, hospitals and clinics.
Mixer suitable for people with reduced mobility
Shower mixer with 30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

SECURITHERM: Optimum anti-scalding safety

Sécurité anti-brûlure

Double temperature limiter

Sécurité anti-brûlure

Securitouch thermal insulation prevents burns

Confort - Ergonomie - Déclenchement souple

Thermostatic: complete temperature stability

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM Securitouch thermostatic shower mixer

Ref. H9741S

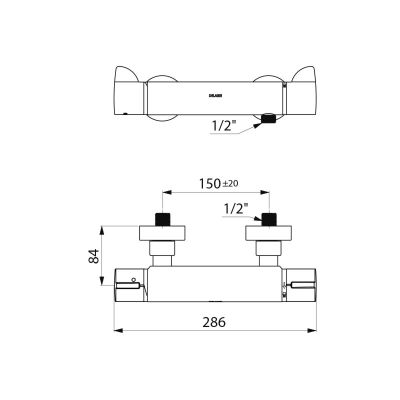

Connector M1/2"
Technology SECURITHERM Securitouch thermostatic mixer
Depth 84mm
Length 286mm
Flow rate 9 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo DIN-DVGW Logo Belgaqua SINTEF Logo PZH Logo DoP
Warranty 30-Year

Downloads

DOWNLOADS

Mitigeur de douche thermostatique SECURITHERM

Ref. H9741S

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

H9741 Offset STOP/CHECK connectors
H9741TP
9741 Without connectors
