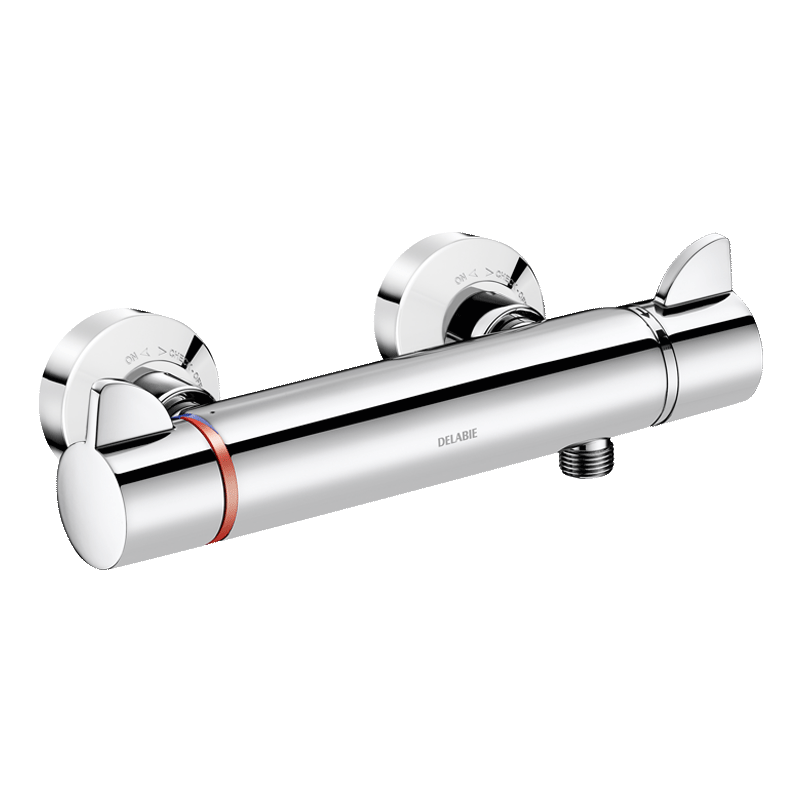

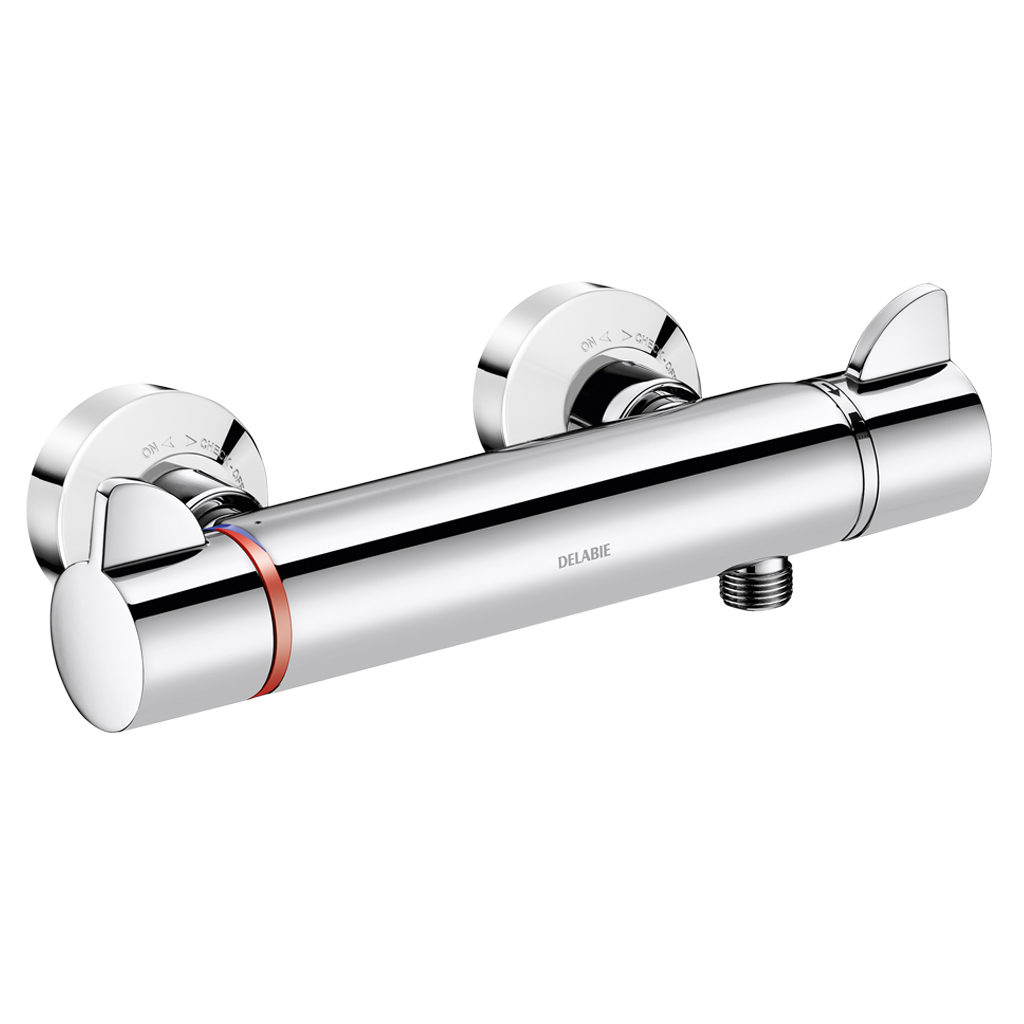

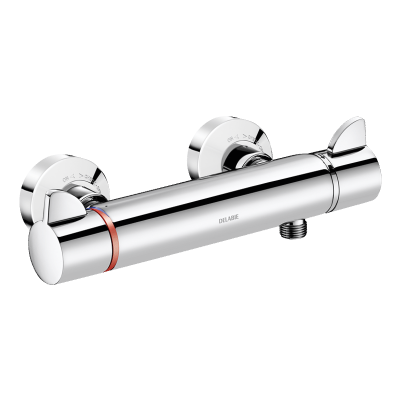

SECURITHERM Securitouch thermostatic shower mixer
Ref. H9741
Dual control thermostatic shower mixer
Dual control thermostatic shower mixer
DESCRIPTION
SECURITHERM Securitouch thermostatic shower mixer
Ref. H9741SECURITHERM dual control thermostatic shower mixer.
Mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.
Securitouch thermal insulation to prevent burns.
Scale-resistant thermostatic cartridge for temperature adjustment.
¼-turn ceramic head for flow rate adjustment.
Temperature control from 25 - 41°C.
Double temperature limiter: 1st limiter set at 38°C can be overridden, 2nd limiter set at 41°C.
Thermal shocks are easy to undertake without removing the control knob or shutting off the cold water supply.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and ERGO controls.
M1/2" shower outlet.
F3/4" inlets with integrated filters and non-return valves.
Mixer with offset M1/2" M3/4" STOP/CHECK wall connectors.

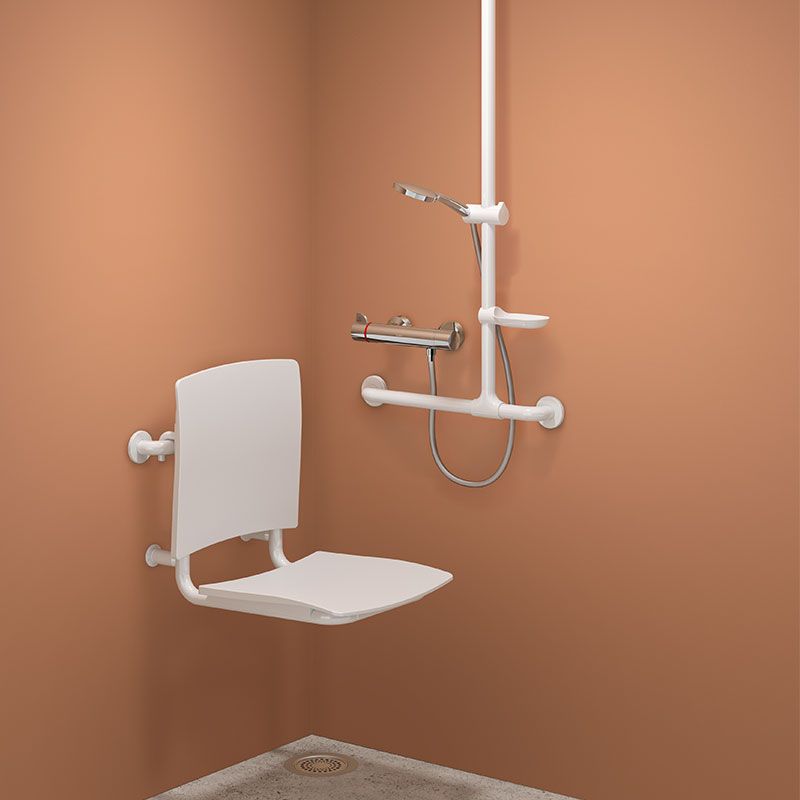

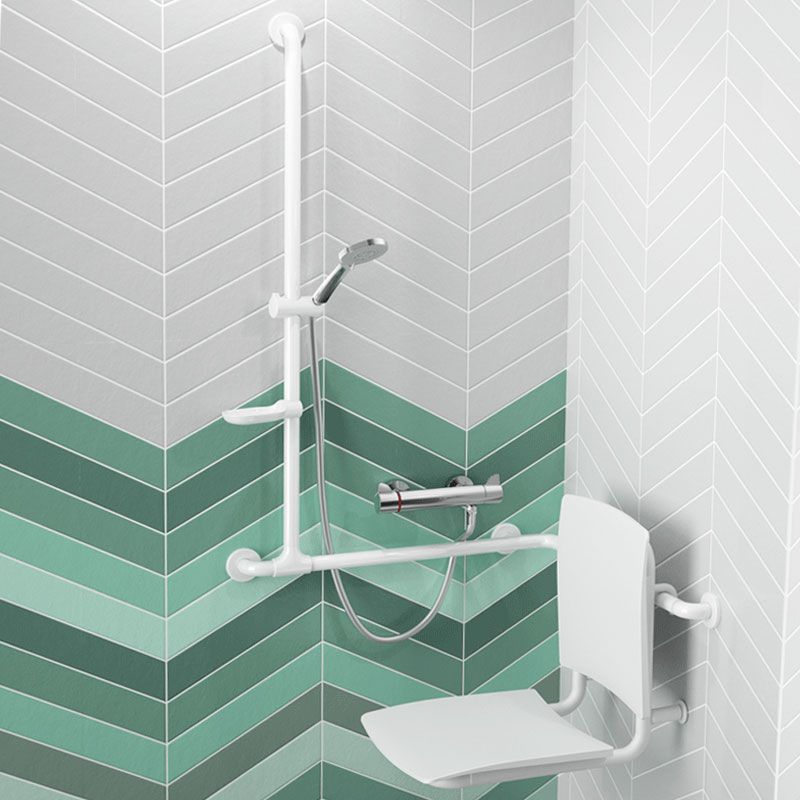

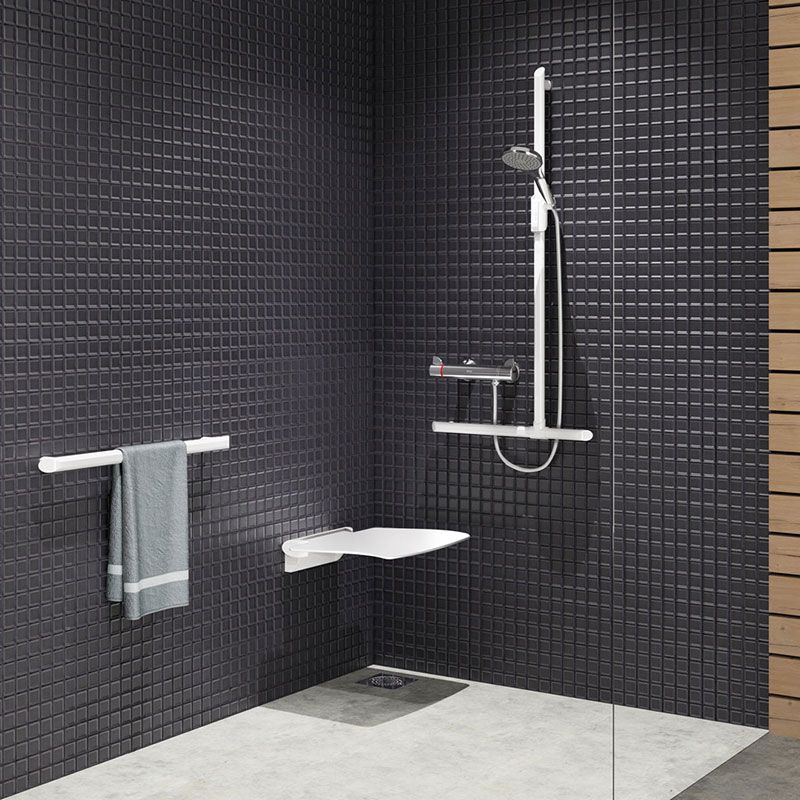

Mixer ideal for healthcare facilities, retirement and care home, hospitals and clinics.
Mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.
Mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.
Securitouch thermal insulation to prevent burns.
Scale-resistant thermostatic cartridge for temperature adjustment.
¼-turn ceramic head for flow rate adjustment.
Temperature control from 25 - 41°C.
Double temperature limiter: 1st limiter set at 38°C can be overridden, 2nd limiter set at 41°C.
Thermal shocks are easy to undertake without removing the control knob or shutting off the cold water supply.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and ERGO controls.
M1/2" shower outlet.
F3/4" inlets with integrated filters and non-return valves.
Mixer with offset M1/2" M3/4" STOP/CHECK wall connectors.
Mixer ideal for healthcare facilities, retirement and care home, hospitals and clinics.
Mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.
ADVANTAGES
SECURITHERM: Optimum anti-scalding safety
Double temperature limiter

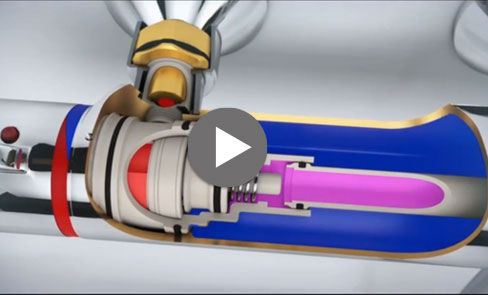

Securitouch thermal insulation prevents burns
Thermostatic: complete temperature stability
TECHNICAL CHARACTERISTICS
SECURITHERM Securitouch thermostatic shower mixer

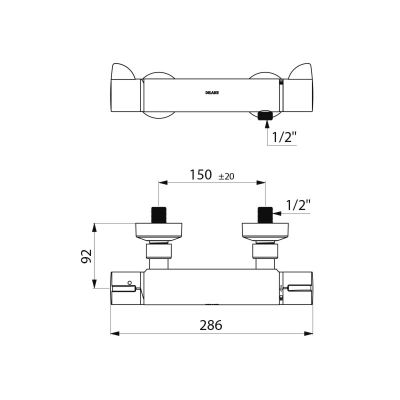

Ref. H9741Connector | M1/2" |
Technology | SECURITHERM Securitouch thermostatic mixer |
Depth | 92mm |
Length | 286mm |
Flow rate | 9 lpm |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates | |
Warranty |
VARIANTS
H9741TP | |||
---|---|---|---|
H9741S | Standard offset connectors | ||
9741 | Without connectors |
VARIANTS
H9741TP | |||
---|---|---|---|
H9741S | Standard offset connectors | ||
9741 | Without connectors |
