SECURITHERM securitouch thermostatic auto-drain shower kit
Ref. H9739HYG
Dual control thermostatic mixer
Dual control thermostatic mixer
DESCRIPTION
SECURITHERM securitouch thermostatic auto-drain shower kit
Ref. H9739HYGSECURITHERM dual control thermostatic shower kit with auto-draining device:

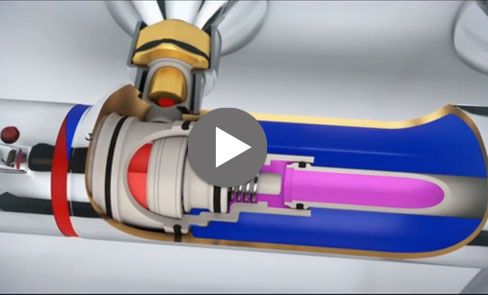

• Shower mixer with scale-resistant, thermostatic cartridge:
Mixer with anti-scalding safety: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.
Scale-resistant thermostatic cartridge adjusts the temperature.
1/4-turn ceramic head for flow rate adjustment.
Temperature control from 25 - 40°C with maximum temperature limiter set at 38°C.
Thermal shocks are possible without removing the control knob or shutting off the cold water supply.
Flow rate regulated at 9 lpm.
Chrome-plated body with CLASSIC controls.
M1/2" shower outlet.
F3/4" inlets with integrated filters and non-return valves.
Mixer with offset STOP/CHECK wall connectors, M1/2" M3/4".
• Shower head (ref. 813) with wall-mounted tilting support (ref. 845).
• Auto-draining device FM1/2" for installation between the flexible hose and the shower head, automatically drains the shower head and flexible hose (reduces bacterial development) (ref. 880).
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Shower mixer with 30-year warranty.
• Shower mixer with scale-resistant, thermostatic cartridge:
Mixer with anti-scalding safety: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.
Scale-resistant thermostatic cartridge adjusts the temperature.
1/4-turn ceramic head for flow rate adjustment.
Temperature control from 25 - 40°C with maximum temperature limiter set at 38°C.
Thermal shocks are possible without removing the control knob or shutting off the cold water supply.
Flow rate regulated at 9 lpm.
Chrome-plated body with CLASSIC controls.
M1/2" shower outlet.
F3/4" inlets with integrated filters and non-return valves.
Mixer with offset STOP/CHECK wall connectors, M1/2" M3/4".
• Shower head (ref. 813) with wall-mounted tilting support (ref. 845).
• Auto-draining device FM1/2" for installation between the flexible hose and the shower head, automatically drains the shower head and flexible hose (reduces bacterial development) (ref. 880).
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Shower mixer with 30-year warranty.
ADVANTAGES
SECURITHERM: Optimum anti-scalding safety
Pre-set maximum temperature limiter
Automatically drains shower head and flexible hose
Thermostatic: total temperature stability

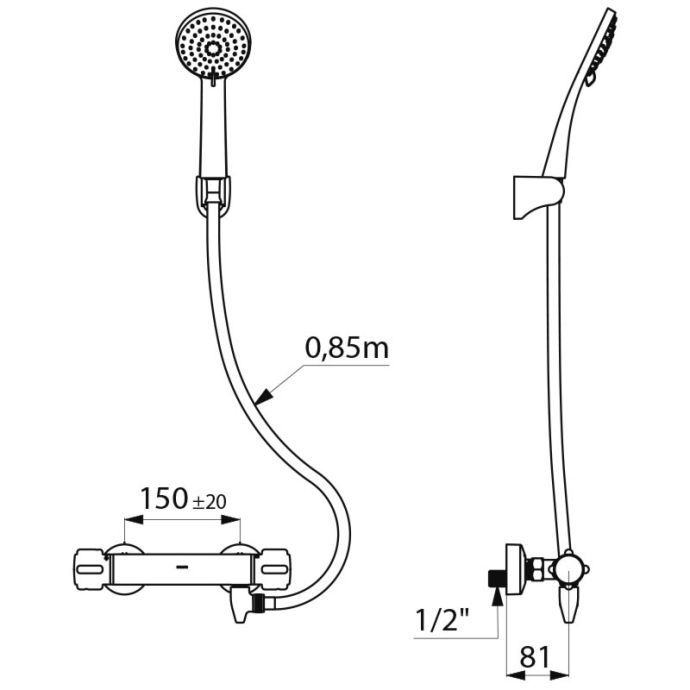

TECHNICAL CHARACTERISTICS
SECURITHERM securitouch thermostatic auto-drain shower kit
Ref. H9739HYGConnector | M1/2" |
Technology | SECURITHERM thermostatic mixer |
Height | 86mm |
Depth | 81mm |
Width | 280mm |
Flow rate | 9 lpm |
Temperature limiter | 38°C |
Finish | Chrome-plated brass |
Certificates | |
Warranty |
VARIANTS
H9739SHYG | Standard offset connectors |
---|
VARIANTS
H9739SHYG | Standard offset connectors |
---|
