DESCRIPTION

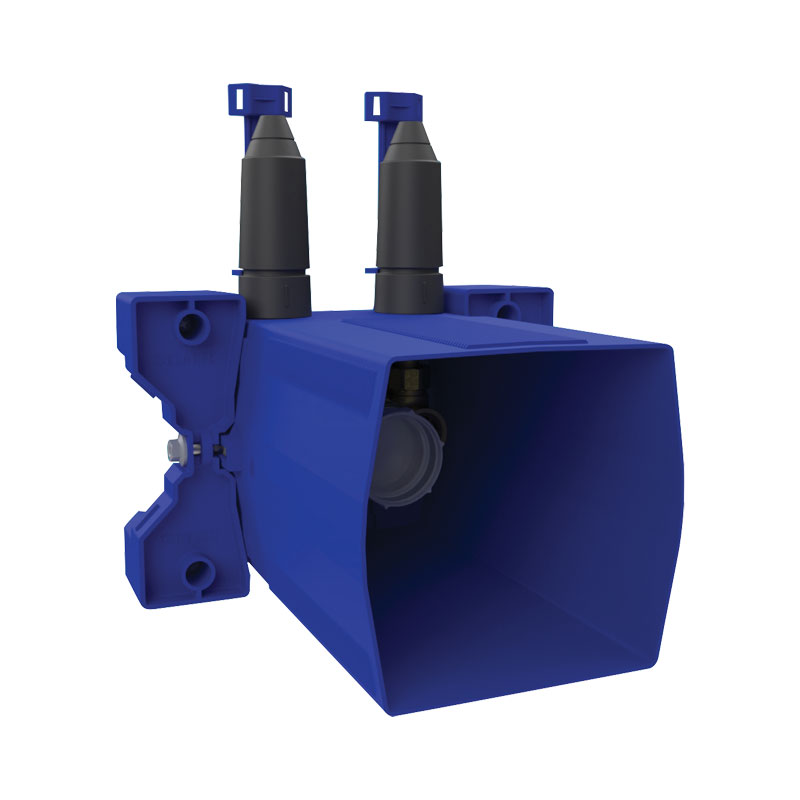

Recessing housing for thermostatic shower mixers
Ref. H96CBOXWaterproof recessing housing for sequential thermostatic shower mixer, kit 1/2:
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Water supply connects from the top.
- Adjusts to all types of installations (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm (while maintaining the minimum recessing depth of 83mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcocks and flow rate adjustment, filters and cartridge are all integrated and accessible from the front.
- Sequential thermostatic shower mixer.
- Supplied in 2 kits: secure system flush without sensitive elements.
30-year warranty.
Order with the control plate reference H9633.
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Water supply connects from the top.
- Adjusts to all types of installations (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm (while maintaining the minimum recessing depth of 83mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcocks and flow rate adjustment, filters and cartridge are all integrated and accessible from the front.
- Sequential thermostatic shower mixer.
- Supplied in 2 kits: secure system flush without sensitive elements.
30-year warranty.
Order with the control plate reference H9633.
ADVANTAGES
Recessed installation
Modular and adjustable waterproof housing
Sequential mixer: no non-return valves
100% waterproof housing
TECHNICAL CHARACTERISTICS
Recessing housing for thermostatic shower mixers

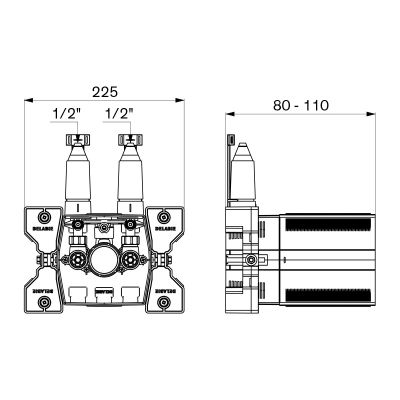

Ref. H96CBOXConnector | 1/2" |
Technology | SECURITHERM Securitouch sequential thermostatic mixer |
Depth | 80-110mm |
Width | 225mm |
Certificates | |
Warranty |
VARIANTS
H9633 | Thermostatic mixer with ERGO control knobs - With elbow outlet | ||
---|---|---|---|
H9631 | Thermostatic mixer with ERGO control knobs - Without elbow outlet | ||
H9633L | Thermostatic mixer with Hygiene lever - Without elbow outlet | ||
H9631L | Thermostatic mixer with Hygiene lever - Without elbow outlet | ||
H96BOX | Waterproof housing for control plate without elbow |
VARIANTS
H9633 | Thermostatic mixer with ERGO control knobs - With elbow outlet | ||
---|---|---|---|
H9631 | Thermostatic mixer with ERGO control knobs - Without elbow outlet | ||
H9633L | Thermostatic mixer with Hygiene lever - Without elbow outlet | ||
H9631L | Thermostatic mixer with Hygiene lever - Without elbow outlet | ||
H96BOX | Waterproof housing for control plate without elbow |
