DESCRIPTION

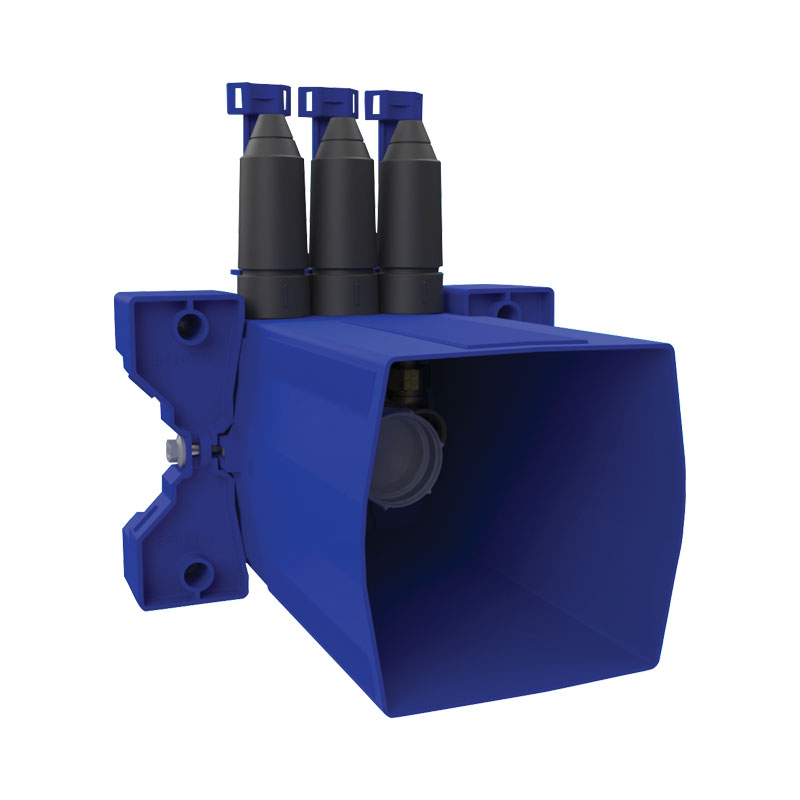

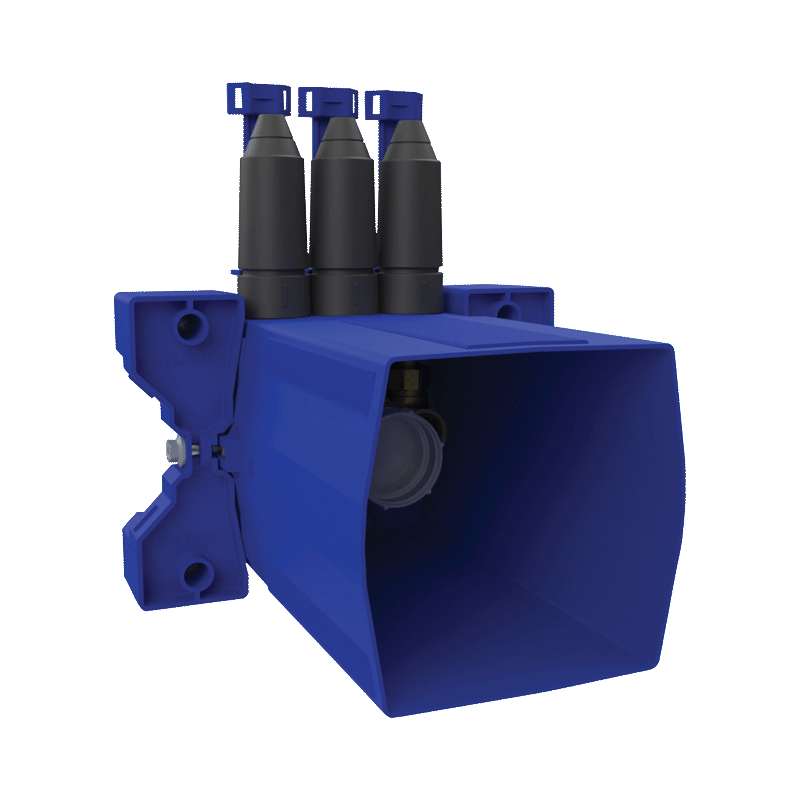

Recessed housing for thermostatic shower mixers
Ref. H96BOXRecessed waterproof housing for thermostatic sequential shower mixers, kit 1/2:
- Collar with waterproof seal.
- Hydraulic connection to the outside and maintenance from the front.
- Water supply connects to the top.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 83mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcocks and flow rate adjustment, filters and cartridge are all integrated and accessible from the front.
- Thermostatic sequential shower mixer.
- Supplied in 2 kits: secure system flush without sensitive elements.
30-year warranty.
Order with control-plate reference H9631.
- Collar with waterproof seal.
- Hydraulic connection to the outside and maintenance from the front.
- Water supply connects to the top.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 83mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcocks and flow rate adjustment, filters and cartridge are all integrated and accessible from the front.
- Thermostatic sequential shower mixer.
- Supplied in 2 kits: secure system flush without sensitive elements.
30-year warranty.
Order with control-plate reference H9631.
ADVANTAGES
Recessed installation
Modular and adjustable waterproof housing
Sequential mixer: no non-return valves
100% waterproof housing

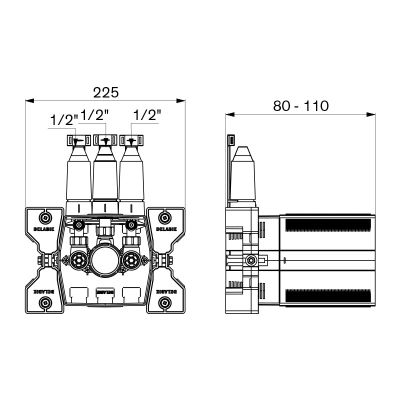

TECHNICAL CHARACTERISTICS
Recessed housing for thermostatic shower mixers
Ref. H96BOXConnector | 1/2" |
Technology | SECURITHERM Securitouch thermostatic sequential mixer |
Depth | 80 - 110mm |
Width | 225mm |
Certificates | |
Warranty |
VARIANTS
H9633 | Thermostatic mixer with ERGO control knobs - With elbow outlet | ||
---|---|---|---|
H9631 | Thermostatic mixer with ERGO control knobs - Without elbow outlet | ||
H9633L | Thermostatic mixer with Hygiene lever - Without elbow outlet | ||
H9631L | Thermostatic mixer with Hygiene lever - Without elbow outlet | ||
H96CBOX | Waterproof housing for control plate with elbow |
VARIANTS
H9633 | Thermostatic mixer with ERGO control knobs - With elbow outlet | ||
---|---|---|---|
H9631 | Thermostatic mixer with ERGO control knobs - Without elbow outlet | ||
H9633L | Thermostatic mixer with Hygiene lever - Without elbow outlet | ||
H9631L | Thermostatic mixer with Hygiene lever - Without elbow outlet | ||
H96CBOX | Waterproof housing for control plate with elbow |
