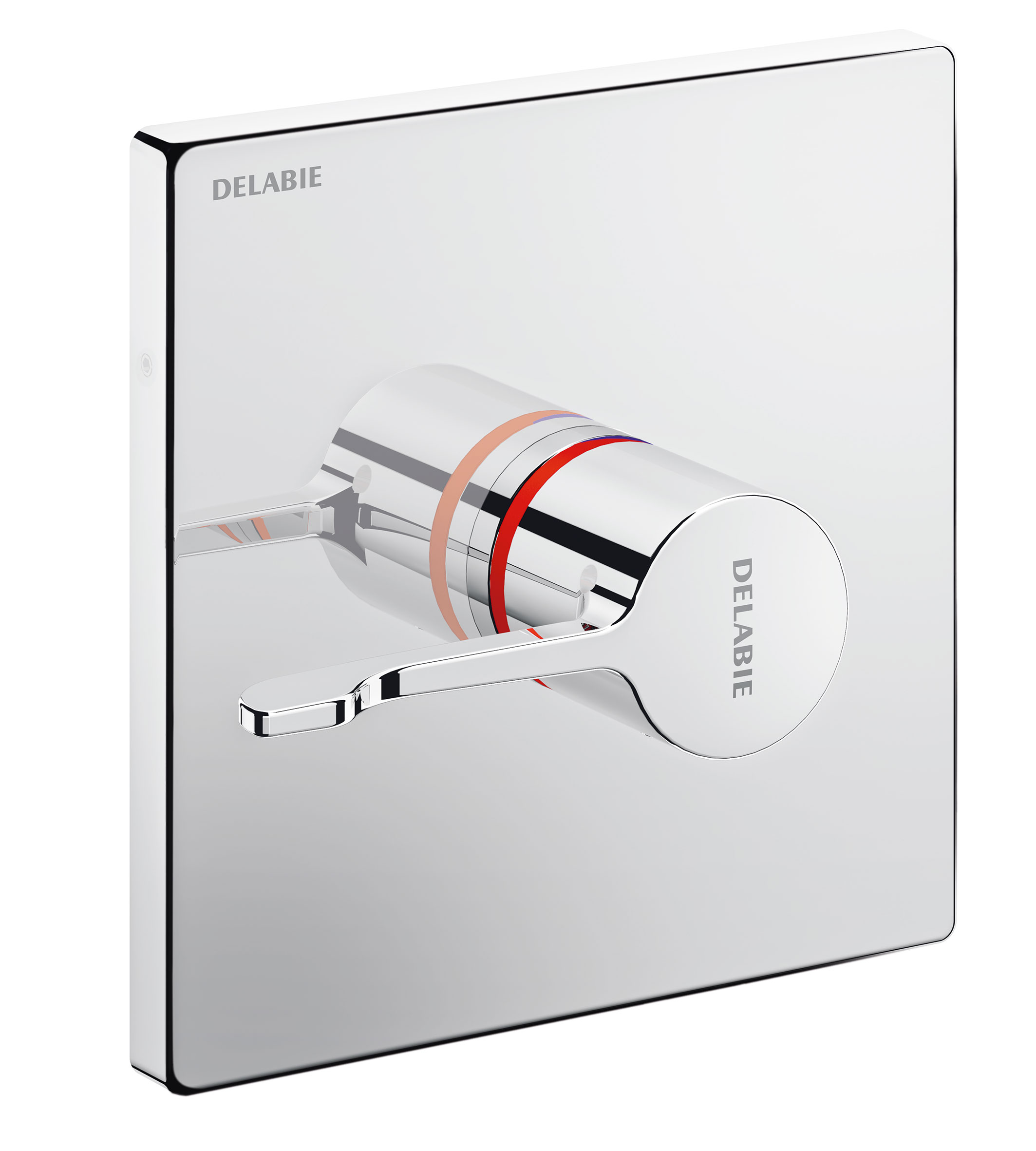

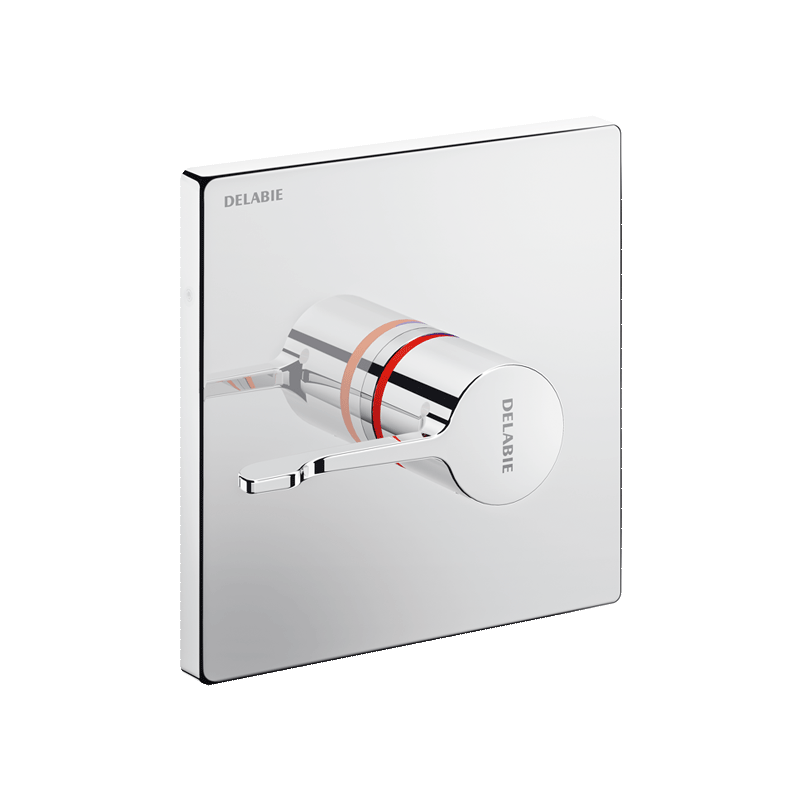

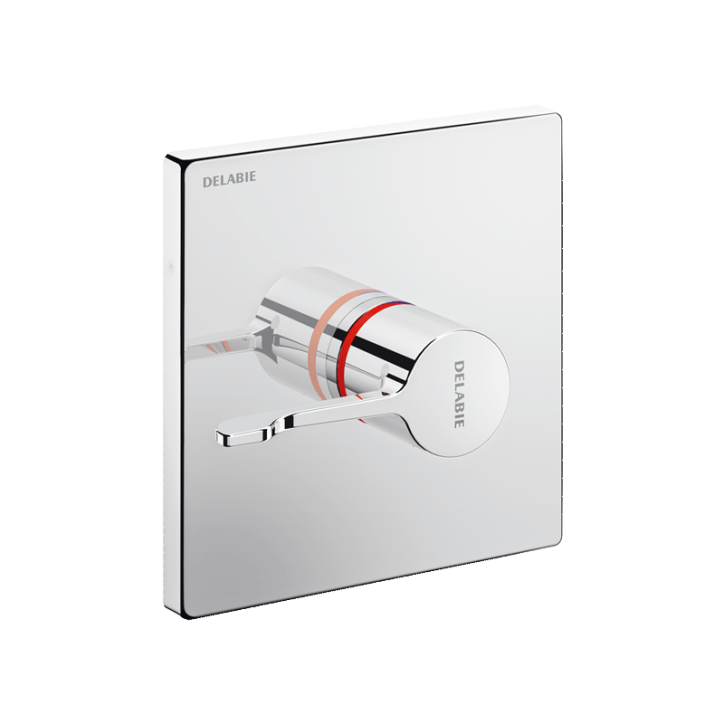

Recessed thermostatic sequential shower mixer
Ref. H9631L
SECURITHERM mixer with no non-return valves, kit 2/2
SECURITHERM mixer with no non-return valves, kit 2/2
DESCRIPTION
Recessed thermostatic sequential shower mixer
Ref. H9631LRecessed Securitherm thermostatic shower, kit 2/2 :
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Prevents cold showers: cold water supply shuts off if hot water supply fails.

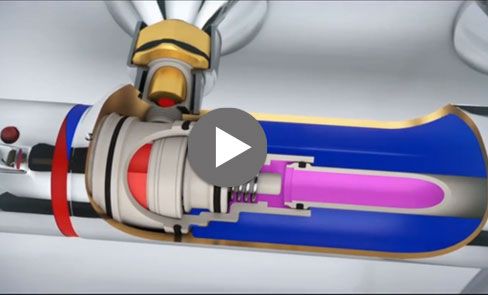

Sequential mixer with Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic sequential cartridge adjusts the flow rate and temperature.
Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with shower head.
Hygiene lever L. 100mm.
Filters integrated on the inlets M3/4".
Order a shower head to complete.
Bright polished stainless steel wall plate 166 x 166mm.

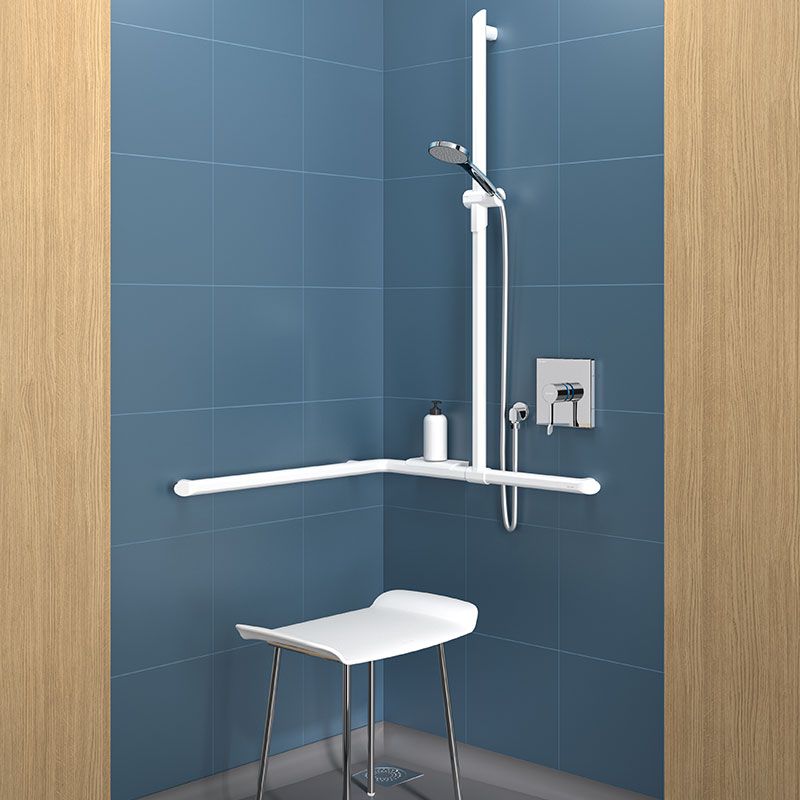

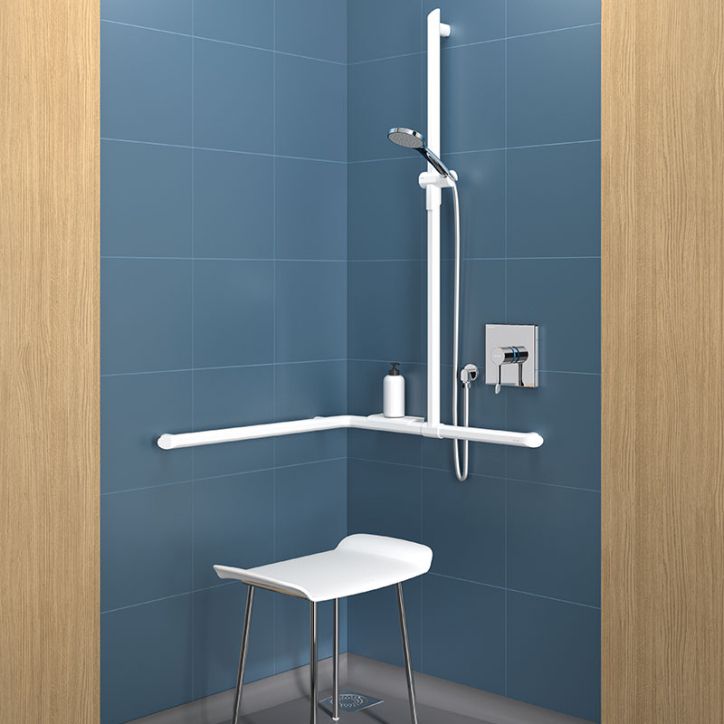

Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.
Order the waterproof recessing housing ref. H96BOX.
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Prevents cold showers: cold water supply shuts off if hot water supply fails.
Sequential mixer with Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic sequential cartridge adjusts the flow rate and temperature.
Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with shower head.
Hygiene lever L. 100mm.
Filters integrated on the inlets M3/4".
Order a shower head to complete.
Bright polished stainless steel wall plate 166 x 166mm.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.
Order the waterproof recessing housing ref. H96BOX.
ADVANTAGES
Sequential: opens/closes with cold water
Maximum hygiene: no non-return valves
SECURITHERM: optimal anti-scalding safety
Thermostatic: total temperature stability
TECHNICAL CHARACTERISTICS
Recessed thermostatic sequential shower mixer
Ref. H9631LTechnology | SECURITHERM Securitouch thermostatic sequential mixer |

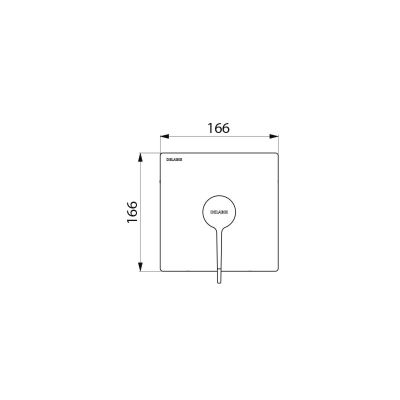

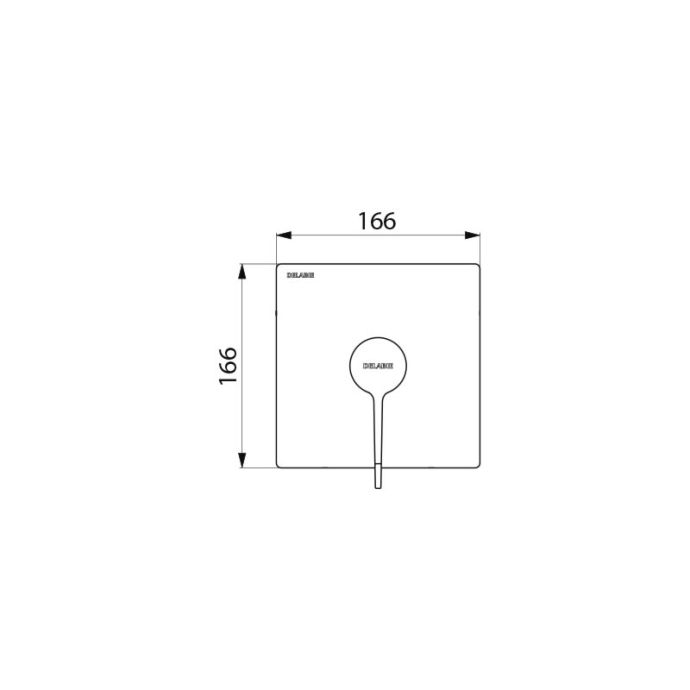

Height | 166mm |
Width | 166mm |
Flow rate | Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with shower head |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

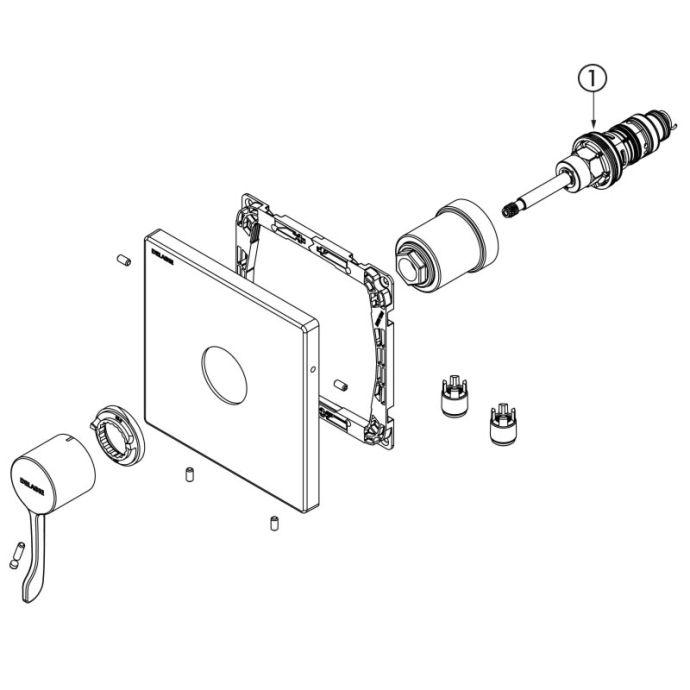

SPARE PARTS
Recessed thermostatic sequential shower mixer
Ref. H9631L1. | N962 |
|
Thermostatic cartridge for shower mixers |
VARIANTS
H9633 | Thermostatic mixer with ERGO control knobs - With elbow outlet | ||
---|---|---|---|
H9631 | Thermostatic mixer with ERGO control knobs - Without elbow outlet | ||
H9633L | Thermostatic mixer with Hygiene lever - Without elbow outlet | ||
H96BOX | Waterproof housing for control plate without elbow | ||
H96CBOX | Waterproof housing for control plate with elbow |
VARIANTS
H9633 | Thermostatic mixer with ERGO control knobs - With elbow outlet | ||
---|---|---|---|
H9631 | Thermostatic mixer with ERGO control knobs - Without elbow outlet | ||
H9633L | Thermostatic mixer with Hygiene lever - Without elbow outlet | ||
H96BOX | Waterproof housing for control plate without elbow | ||
H96CBOX | Waterproof housing for control plate with elbow |
