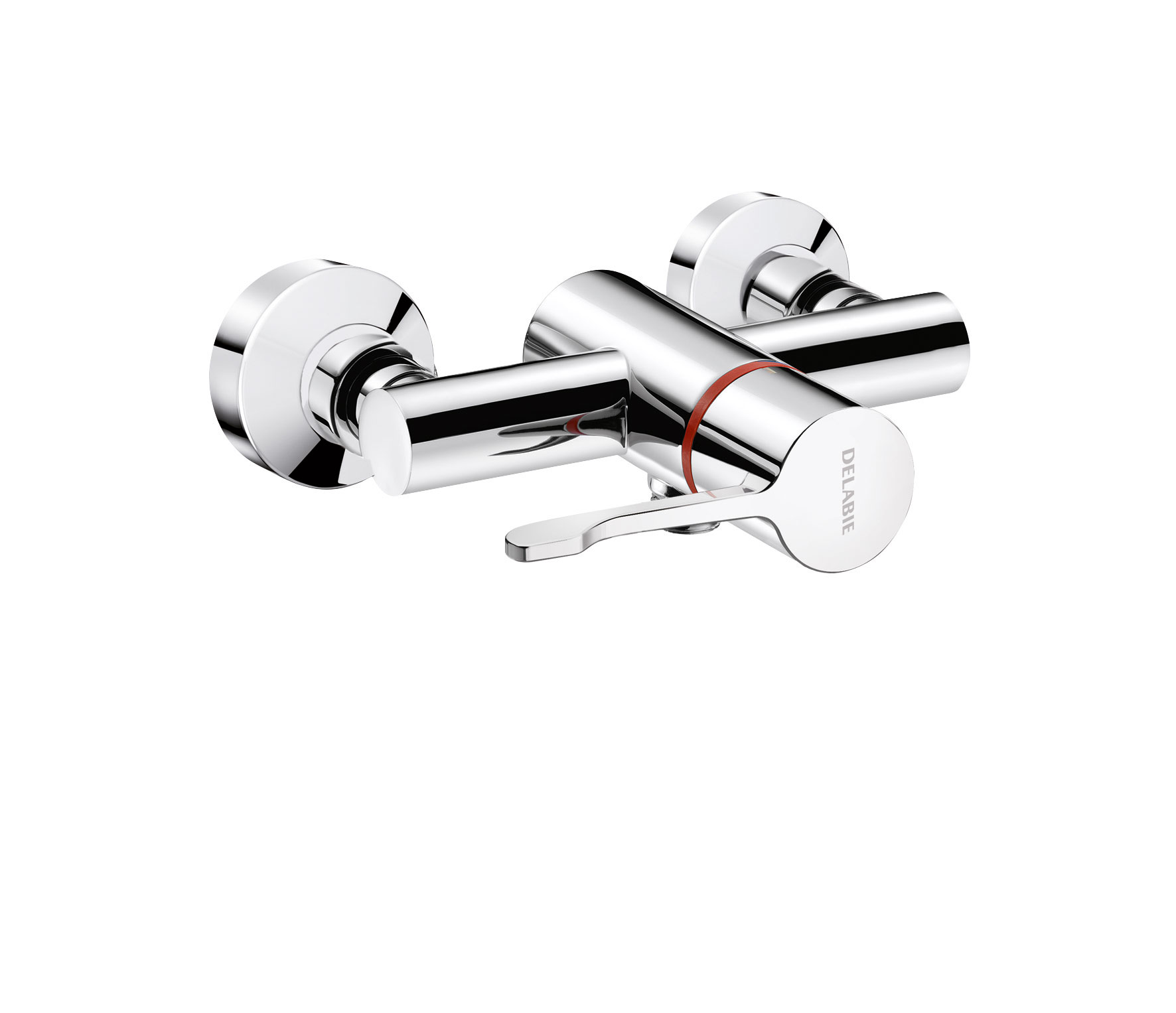

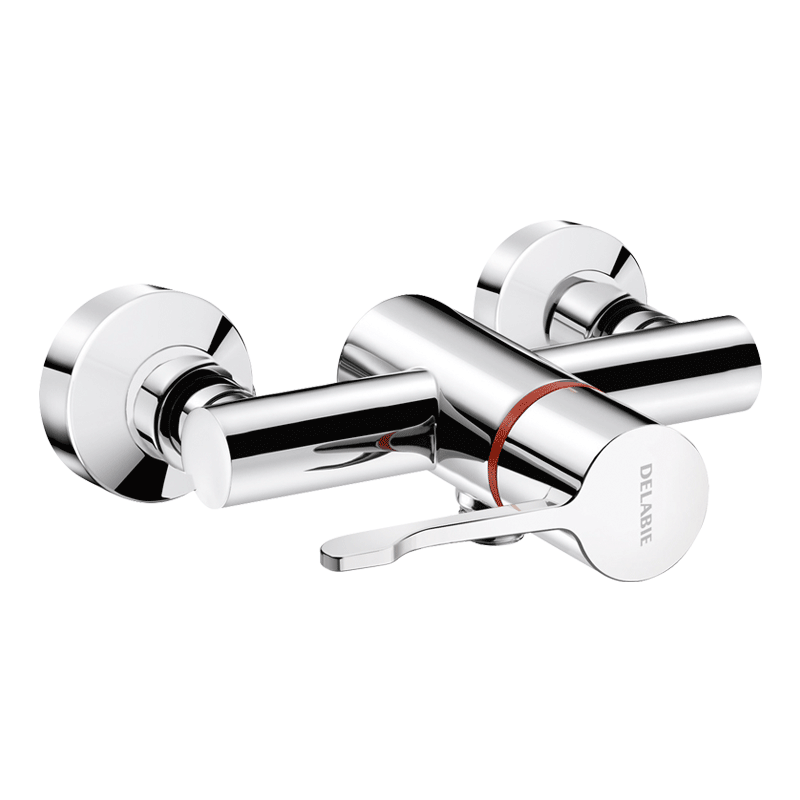

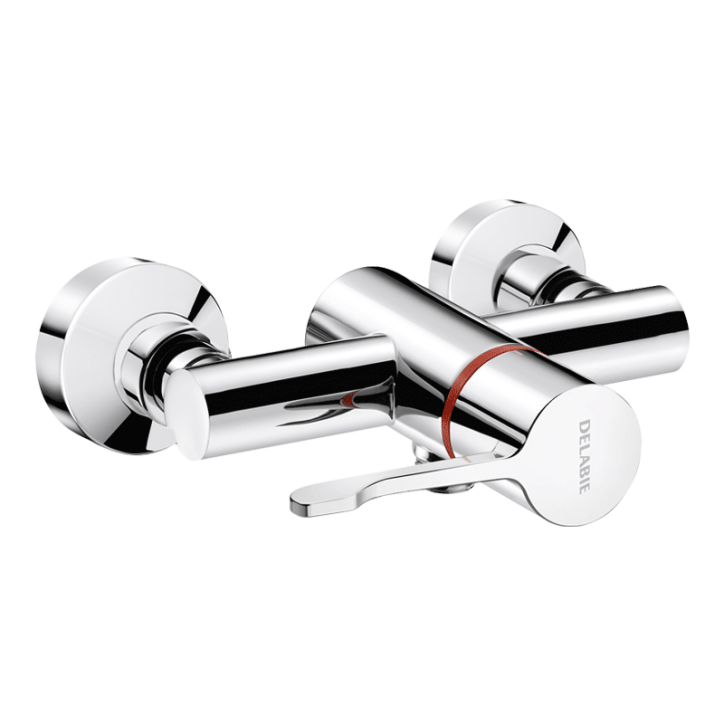

Sequential thermostatic shower mixer
Ref. H9630S
Thermostatic mixer with no non-return valves, bottom outlet
Thermostatic mixer with no non-return valves, bottom outlet
DESCRIPTION
Sequential thermostatic shower mixer
Ref. H9630SSECURITHERM thermostatic sequential shower mixer.
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.

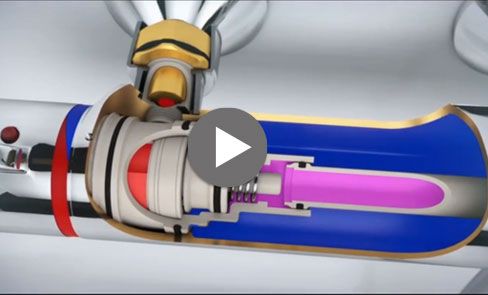

Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic sequential cartridge adjusts the flow rate and the temperature.
Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Body with smooth interior and low water volume (reduces niches where bacteria can develop).
Flow rate regulated at 9 lpm.
Chrome-plated brass body and Hygiene control lever L. 100mm.
M1/2" bottom shower outlet.
Wall-mounted mixer with offset standard connectors M1/2", M3/4".
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic sequential cartridge adjusts the flow rate and the temperature.
Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Body with smooth interior and low water volume (reduces niches where bacteria can develop).
Flow rate regulated at 9 lpm.
Chrome-plated brass body and Hygiene control lever L. 100mm.
M1/2" bottom shower outlet.
Wall-mounted mixer with offset standard connectors M1/2", M3/4".
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.
ADVANTAGES

Sequential: opens/closes with cold water

Maximum hygiene: no non-return valves

SECURITHERM: optimal anti-scalding safety

Thermostatic: complete temperature stability

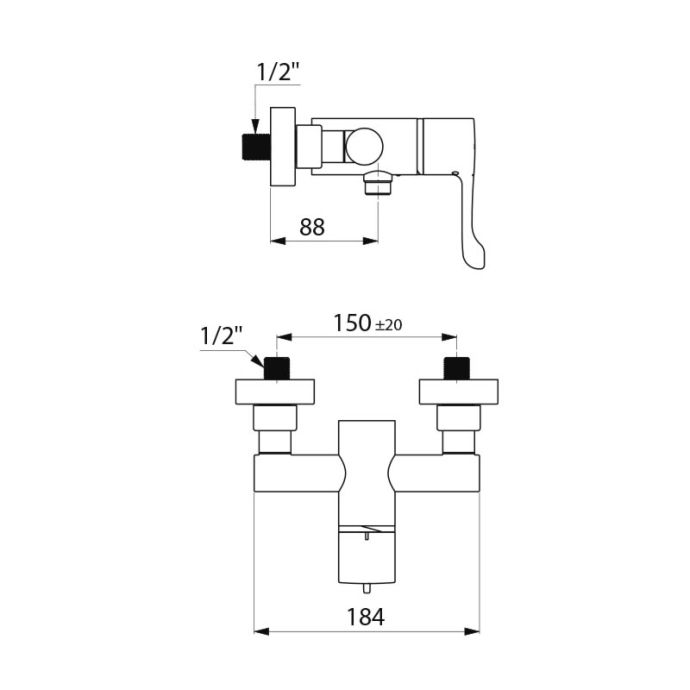

TECHNICAL CHARACTERISTICS
Sequential thermostatic shower mixer
Ref. H9630SConnector | M1/2" |
Technology | SECURITHERM Securitouch sequential thermostatic mixer |
Length | 184mm |
Flow rate | 9 lpm |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Compatible products
COMPATIBLE PRODUCTS
Sequential thermostatic shower mixer
Ref. H9630SH9630SHYG |
|
Auto-draining shower kit with thermostatic mixer |
H9630SKIT |
|
Shower kit with thermostatic mixer |

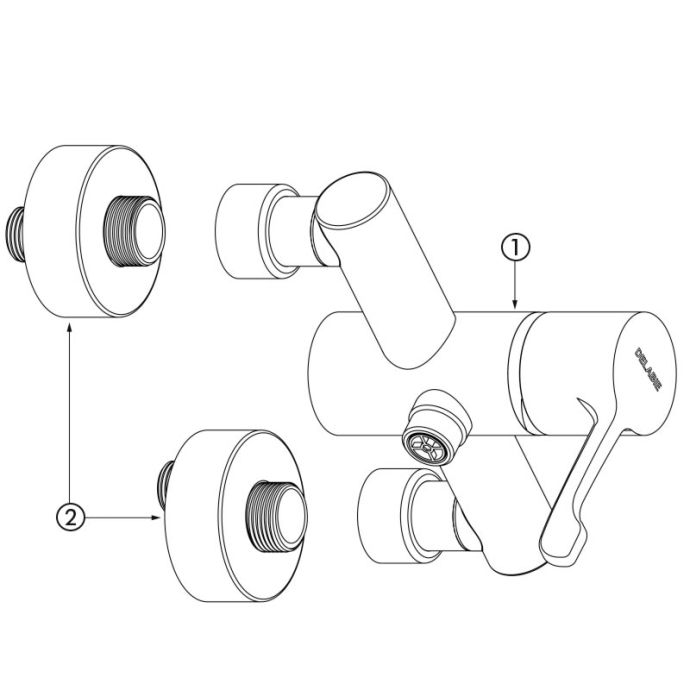

Spare parts
SPARE PARTS
Sequential thermostatic shower mixer
Ref. H9630S
1. | 9630 |
|
SECURITHERM sequential thermostatic shower mixer |
2. | 856794.2P |
|
Offset union |
VARIANTS
9630 | No unions - bottom outlet | ||
---|---|---|---|
H963015 | |||
H9630 | Offset STOP/CHECK connectors - bottom outlet | ||
H9640 | Offset STOP/CHECK connectors - top outlet |
VARIANTS
9630 | No unions - bottom outlet | ||
---|---|---|---|
H963015 | |||
H9630 | Offset STOP/CHECK connectors - bottom outlet | ||
H9640 | Offset STOP/CHECK connectors - top outlet |
