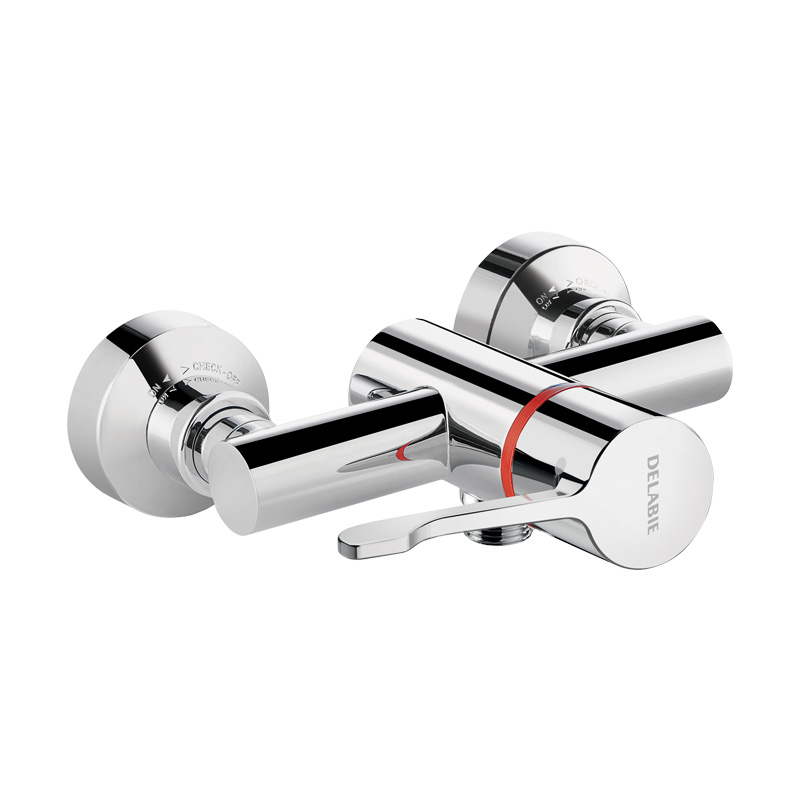

Sequential thermostatic shower mixer
Ref. H963015
SECURITHERM mixer with no non-return valve, bottom outlet
SECURITHERM mixer with no non-return valve, bottom outlet
DESCRIPTION
Sequential thermostatic shower mixer
Ref. H963015SECURITHERM thermostatic sequential shower mixer.
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off immediately if cold water supply fails.
Prevents cold showers: shuts off immediately if hot water supply fails

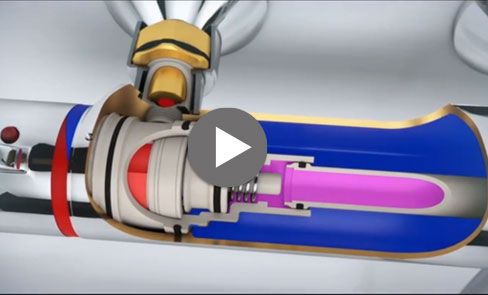

Securitouch thermal insulation prevents burns.

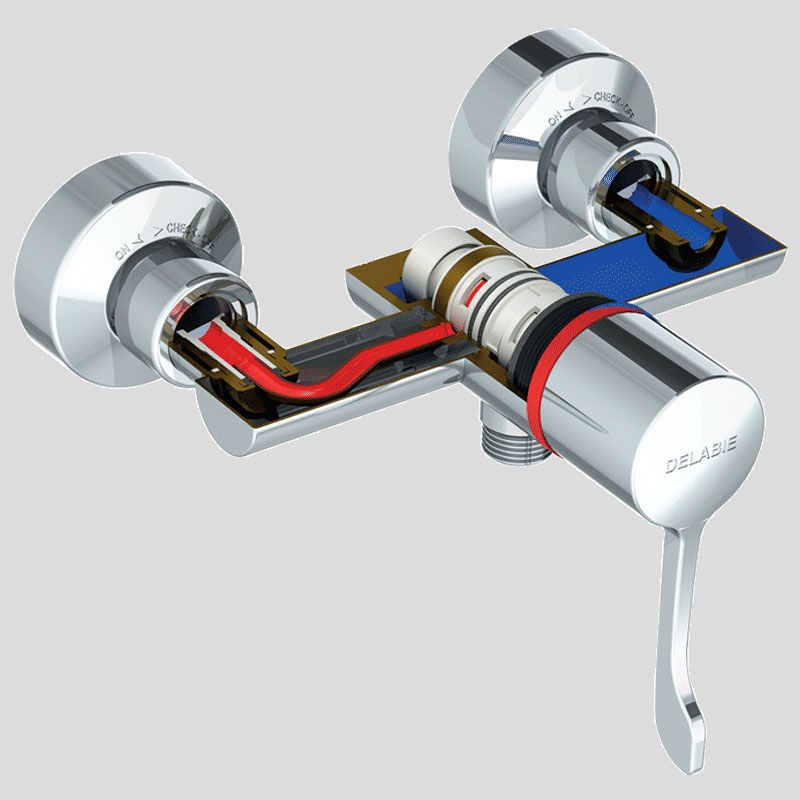

Scale-resistant thermostatic sequential cartridge adjusts the flow rate and the temperature.
Temperature can be adjusted from cold water to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Body with smooth interior and low water volume (reduces niches where bacteria can develop).
Flow rate regulated at 9 lpm.
Chrome-plated brass body and Hygiene control lever L. 100mm.
M1/2" bottom shower outlet.
Wall-mounted mixer with M1/2" M3/4" inline STOP/CHECK.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.

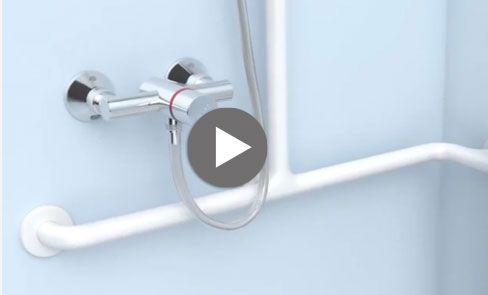

Sequential mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off immediately if cold water supply fails.
Prevents cold showers: shuts off immediately if hot water supply fails
Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic sequential cartridge adjusts the flow rate and the temperature.
Temperature can be adjusted from cold water to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Body with smooth interior and low water volume (reduces niches where bacteria can develop).
Flow rate regulated at 9 lpm.
Chrome-plated brass body and Hygiene control lever L. 100mm.
M1/2" bottom shower outlet.
Wall-mounted mixer with M1/2" M3/4" inline STOP/CHECK.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.
ADVANTAGES

Sequential, opens/closes with cold water

No non-return valves on the inlets

SECURITHERM: optimal anti-scalding safety

Thermostatic: complete temperature stability
TECHNICAL CHARACTERISTICS
Sequential thermostatic shower mixer
Ref. H963015Connector | M1/2" |
Technology | SECURITHERM Securitouch sequential thermostatic mixer |

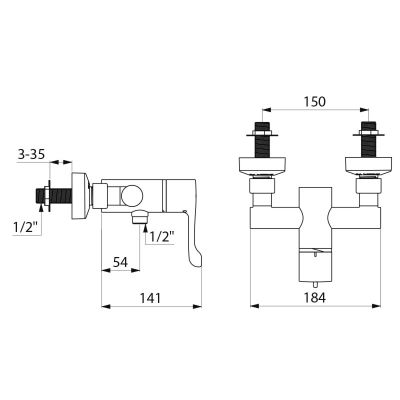

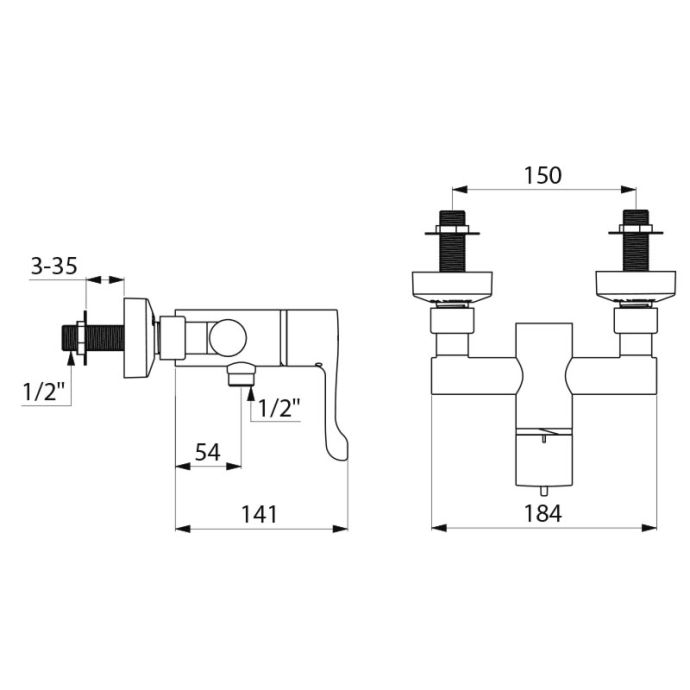

Length | 184mm |
Flow rate | 9 lpm |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates |
![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts

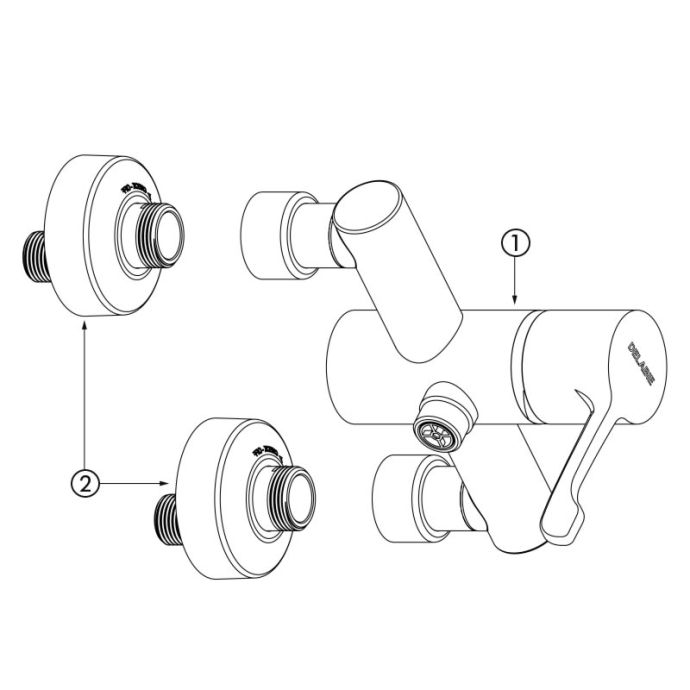

SPARE PARTS
Sequential thermostatic shower mixer
Ref. H963015
1. | 9630 |
|
SECURITHERM sequential thermostatic shower mixer |
2. | 856794.2P |
|
Offset union |
VARIANTS
9630 | No unions - bottom outlet | ||
---|---|---|---|
H9630 | Offset STOP/CHECK connectors - bottom outlet | ||
H9640 | Offset STOP/CHECK connectors - top outlet | ||
H9630S | Standard offset connectors - bottom outlet |
VARIANTS
9630 | No unions - bottom outlet | ||
---|---|---|---|
H9630 | Offset STOP/CHECK connectors - bottom outlet | ||
H9640 | Offset STOP/CHECK connectors - top outlet | ||
H9630S | Standard offset connectors - bottom outlet |
