SECURITHERM shower panel

Ref. 792504
Electronic mains supply thermostatic
SECURITHERM shower panel

Presentation

DESCRIPTION

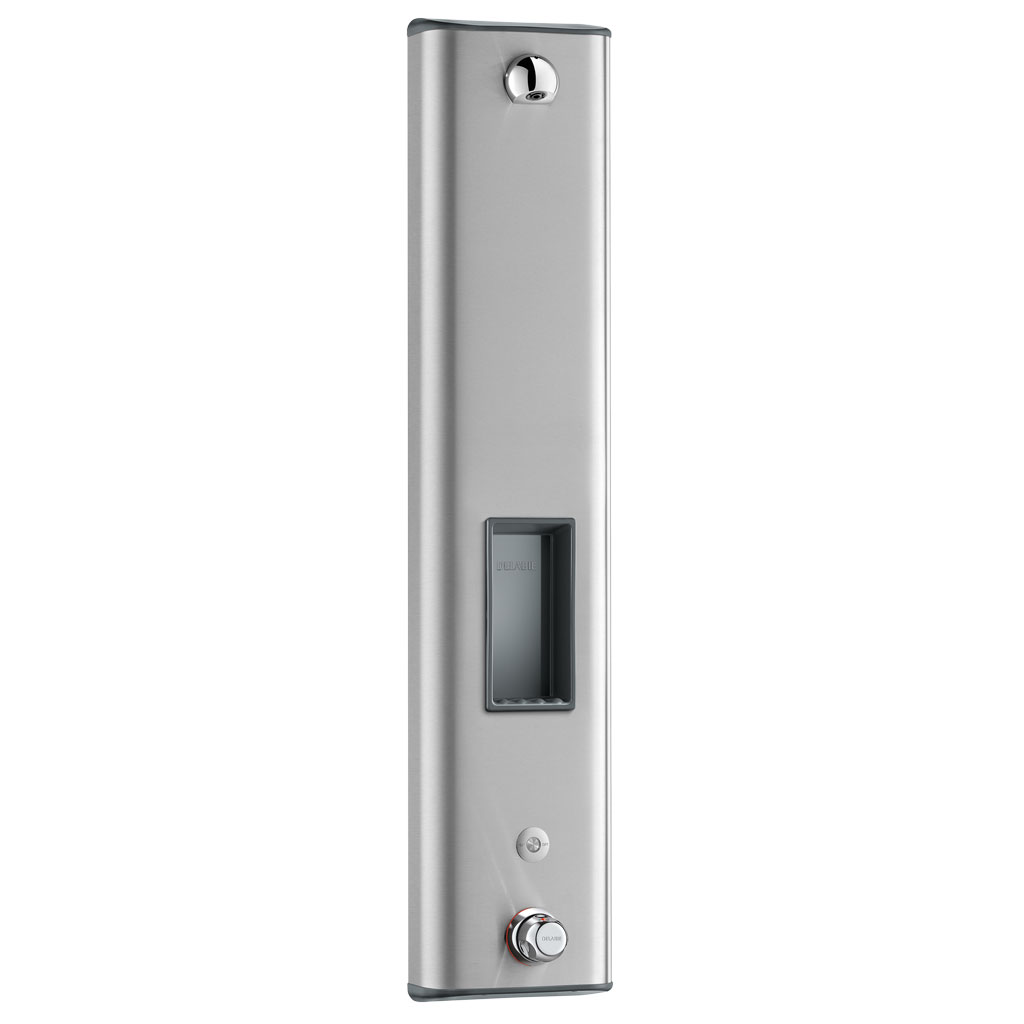

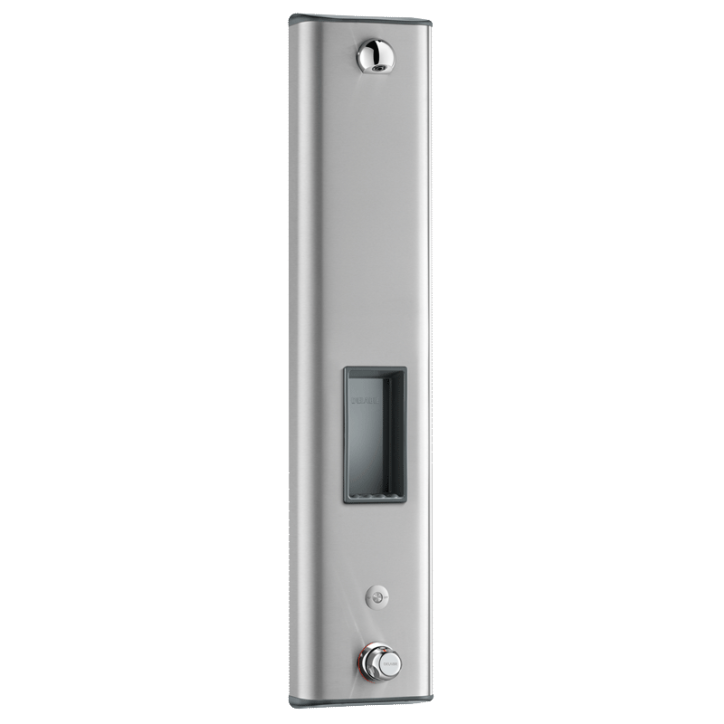

SECURITHERM shower panel

Ref. 792504
Electronic thermostatic shower panel:

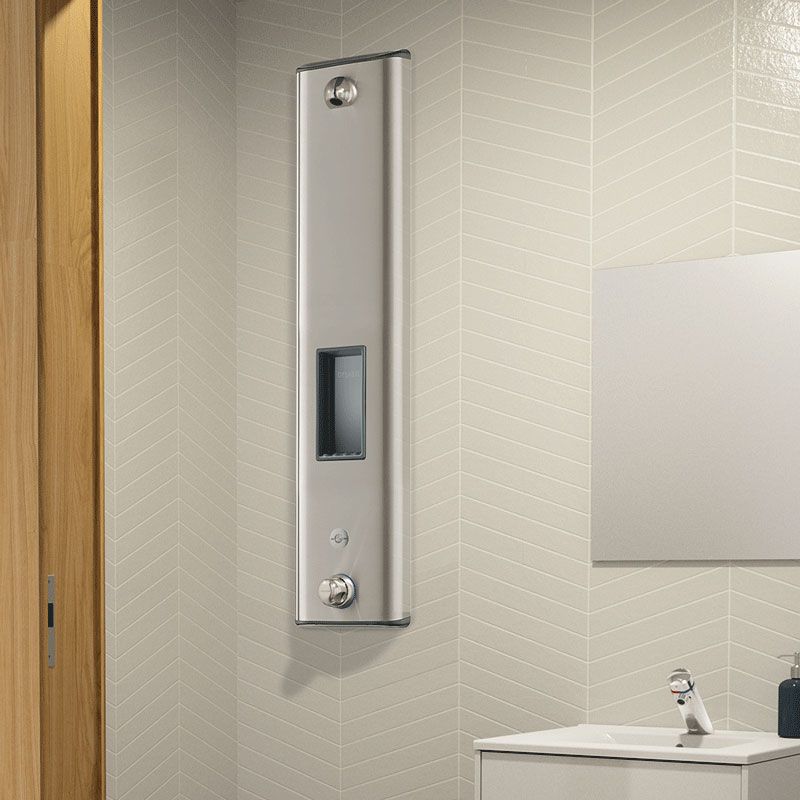

Large stainless steel panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Mains supply 230/6V.
Shower starts when electronic push-button is pressed.
Shuts off voluntarily or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar, can be adjusted, rain-effect spray.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Integrated soap dish.
Concealed fixings.
Filters and non-return valves.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 80%

Rinçage périodique

Anti-bacterial proliferation duty flush

Confort - Ergonomie - Déclenchement souple

Thermostatic temperature regulation

Sécurité anti-brûlure

Instant shut-off if cold water fails

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM shower panel

Ref. 792504
Supply 230/6V mains supply
Connector M½"
Technology Electronic

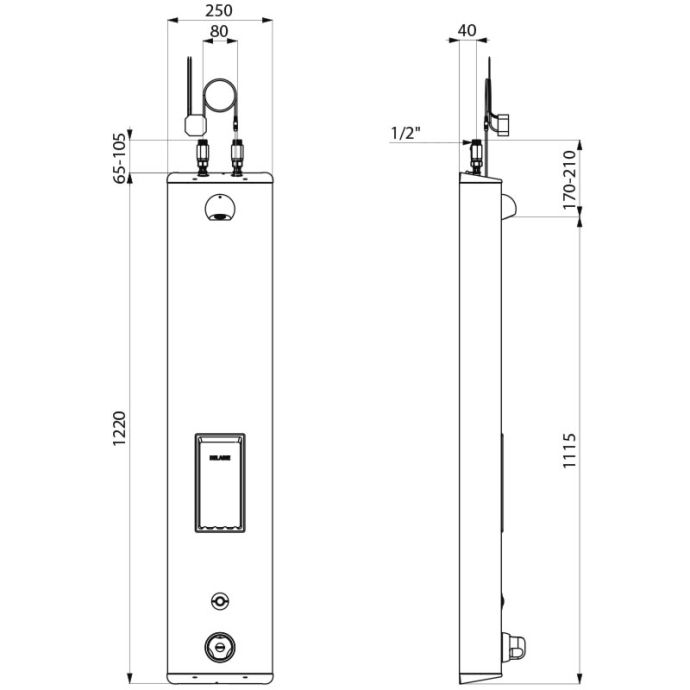

Height 1220mm
Depth 100mm
Width 250mm
Flow rate 6 lpm
Temperature limiter Thermostatic
Finish Stainless steel
Certificates ACS Logo DoP Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Colonne de douche automatique SECURITHERM

Ref. 792504

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

792514 Mains 230/6V, M1/2" concealed flex., soap dish, 6 lpm -max temp. 38°C

VARIANTS

792514 Mains 230/6V, M1/2" concealed flex., soap dish, 6 lpm -max temp. 38°C
