Self-supporting TEMPOFIX 3 frame system for WCs
Ref. 578305DE
For TEMPOFLUX 2 time flow valve - Outlet Ø 110mm
For TEMPOFLUX 2 time flow valve - Outlet Ø 110mm
DESCRIPTION

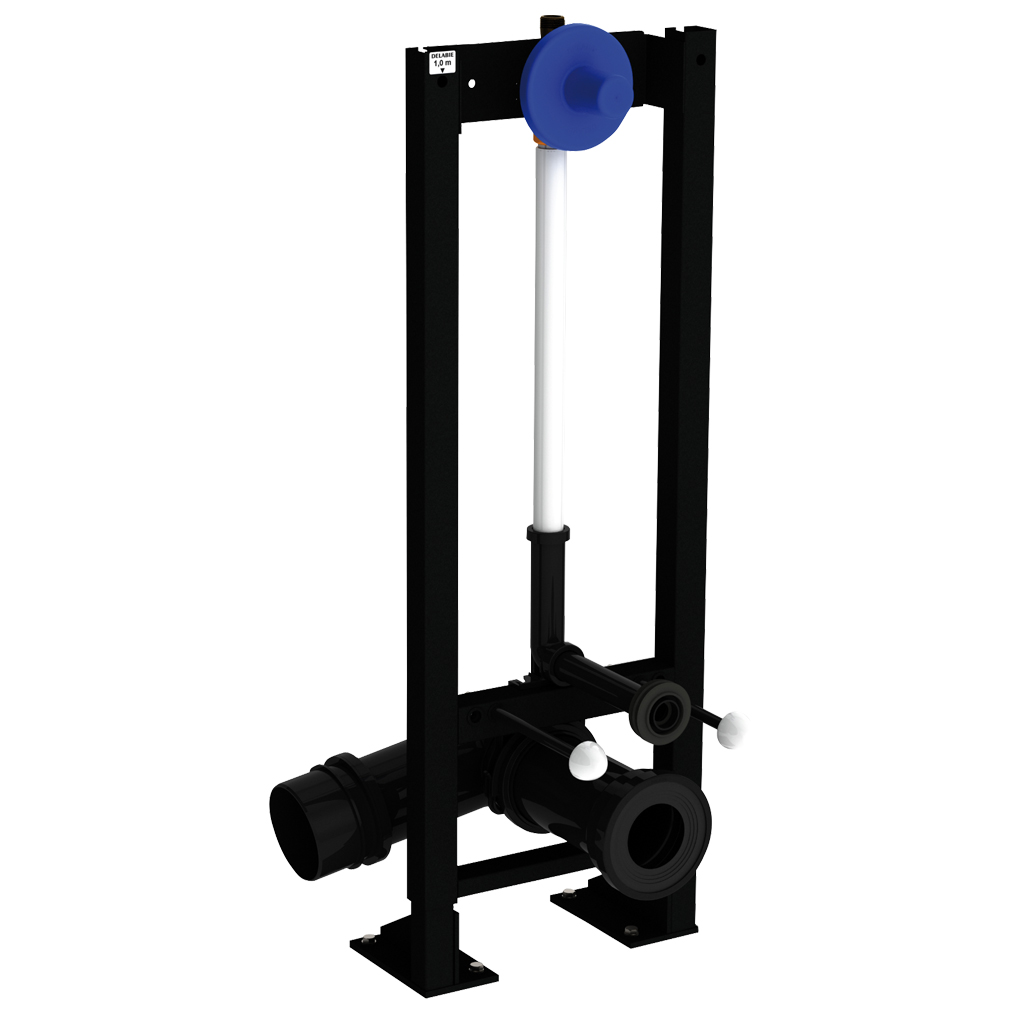

Self-supporting TEMPOFIX 3 frame system for WCs
Ref. 578305DESelf-supporting frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- For wall finishes from 10 to 35mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 110mm HDPE outlet with waterproof seal, with 2 setting positions.
Fitted with a TEMPOFLUX 2 time flow direct flush:
- Flush system without cistern: directly connected to pipework.
- Vacuum breaker.
- Integrated stopcock and flow rate/volume adjuster.
- Solid brass body and shock-resistant, scale-resistant mechanism.
- In-line inlet M¾".
- Compatible with rain water.
Delivered pre-mounted.
30-year warranty.
Order with control plate references 578222, 578212 or 578230.
Black powder-coated steel frame:
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- For wall finishes from 10 to 35mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 110mm HDPE outlet with waterproof seal, with 2 setting positions.
Fitted with a TEMPOFLUX 2 time flow direct flush:
- Flush system without cistern: directly connected to pipework.
- Vacuum breaker.
- Integrated stopcock and flow rate/volume adjuster.
- Solid brass body and shock-resistant, scale-resistant mechanism.
- In-line inlet M¾".
- Compatible with rain water.
Delivered pre-mounted.
30-year warranty.
Order with control plate references 578222, 578212 or 578230.
ADVANTAGES
Quick and easy to install: delivered pre-mounted
Space-saving
Adapt to wall thickness
Install behind wall

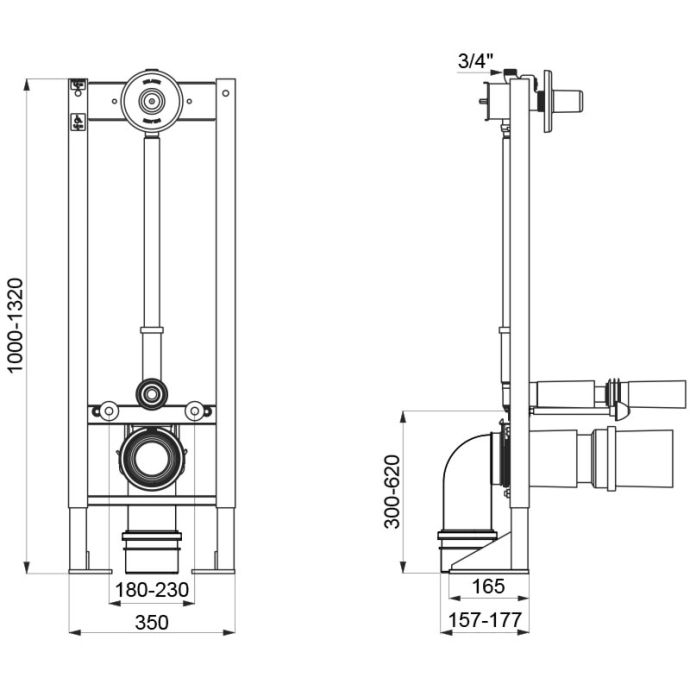

TECHNICAL CHARACTERISTICS
Self-supporting TEMPOFIX 3 frame system for WCs
Ref. 578305DE| Connector | ¾" |
| Technology | Time flow |
| Height | 1000 to 1320mm |
| Depth | 157 - 177mm |
| Width | 350mm |
| Diameter | Ø 110mm outlet |
| Finish | Black powder-coated steel |
| Certificates |
|
| Warranty |
|
VARIANTS
| 578305 | Self-supporting - Ø 100mm outlet connecton - For walls 10 - 130mm | ||
|---|---|---|---|
| 578405BE | Self-supporting- for walls 30-60mm- M¾" - Ø 90mm outlet | ||
| 578405DE | Self-supporting- for walls 30-60mm- M¾" - Ø 110mm outlet | ||
| 578305BE | Self-supporting- for walls 10-130mm- M¾" - Ø 90mm outlet | ||
| 578405 | Self-supporting - Ø 100mm outlet connection - For walls 30 - 60mm |
Discover the advantages of direct flush WC

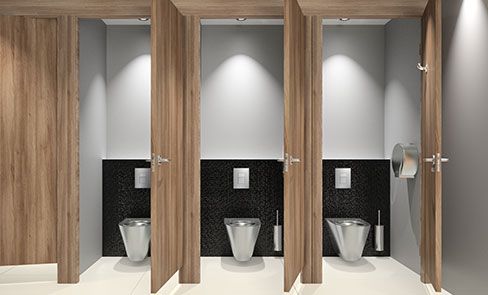

WC direct flush system, a public revolution
