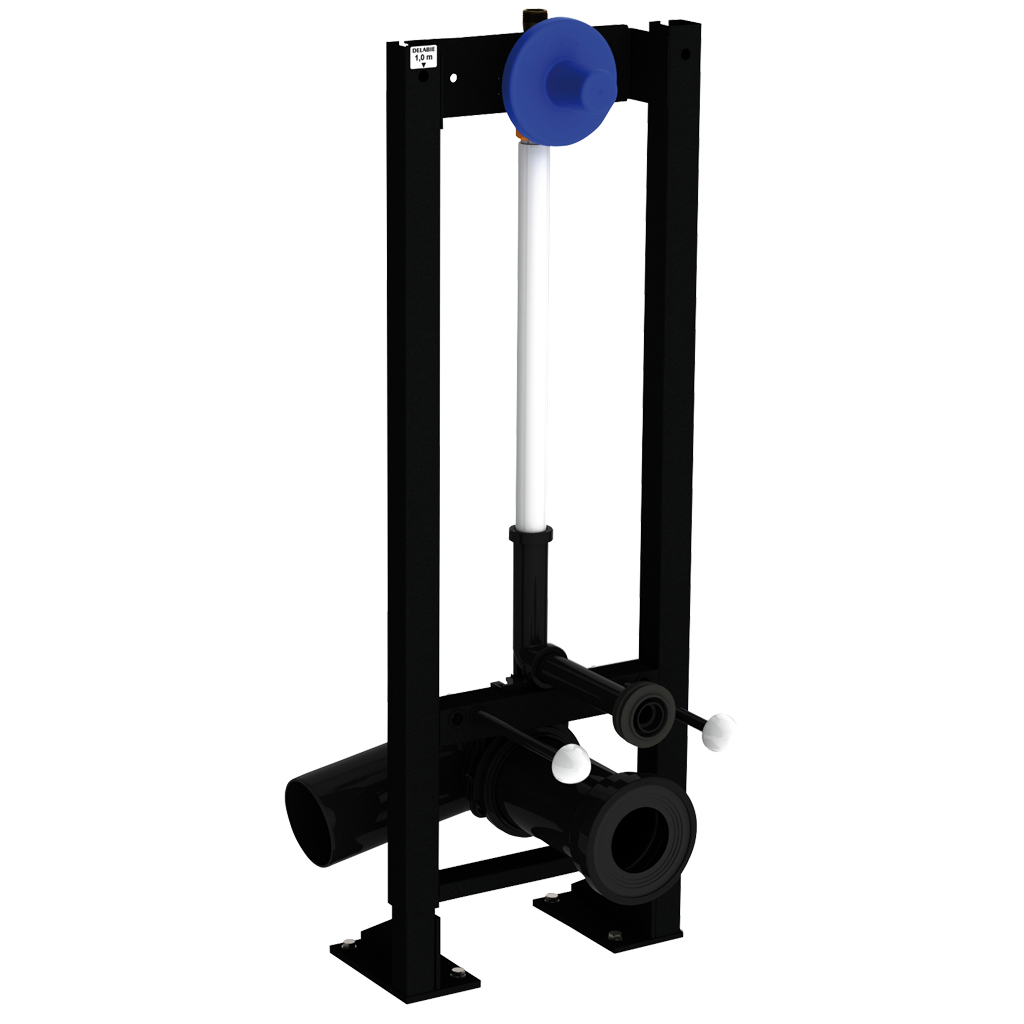

Self-supporting TEMPOFIX 3 frame system for WCs

Ref. 578305
For TEMPOFLUX 2 time flow valve - Outlet Ø 100mm
Self-supporting TEMPOFIX 3 frame system for WCs

Presentation

DESCRIPTION

Self-supporting TEMPOFIX 3 frame system for WCs

Ref. 578305
Self-supporting frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- For wall finishes from 10 to 35mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- Ø 100mm soil pipe and ABS collar with waterproof seal, with 2 settings positions.

Fitted with a TEMPOFLUX 2 time flow direct flush:
- Flush system without cistern: directly connected to pipework.
- Vacuum breaker.
- Integrated stopcock and flow rate/volume adjuster.
- Solid brass body and shock-resistant, scale-resistant mechanism.
- In-line inlet M¾".
- Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
- Base flow rate: 1L/sec at 1 bar dynamic pressure.
- Compatible with rain water.

Delivered pre-mounted.
30-year warranty.

Order with control plate references 578222, 578212 or 578230.

ADVANTAGES

Maintenance aisée - Installation aisée

Quick and easy to install: delivered pre-mounted

Faible espacement au mur - Encombrement limité

Space-saving

Universel

Adapt to wall thickness

Anti-vandalisme

Install behind wall

Characteristics

TECHNICAL CHARACTERISTICS

Self-supporting TEMPOFIX 3 frame system for WCs

Ref. 578305
Connector ¾"
Technology Time flow
Height 1000 to 1320mm
Depth 157 - 177mm
Width 350mm
Diameter Ø 100mm outlet
Finish Black powder-coated steel
Certificates Logo Belgaqua
Warranty 30-Year

Downloads

DOWNLOADS

Bâti-support autoportant TEMPOFIX 3 pour WC

Ref. 578305

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

578305BE Self-supporting- for walls 10-130mm- M¾" - Ø 90mm outlet
578305DE Self-supporting- for walls 10-130mm- M¾" - Ø 110mm outlet
578405 Self-supporting - Ø 100mm outlet connection - For walls 30 - 60mm
578405BE Self-supporting- for walls 30-60mm- M¾" - Ø 90mm outlet
578405DE Self-supporting- for walls 30-60mm- M¾" - Ø 110mm outlet
Discover the advantages of direct flush WC
Discover the advantages of direct flush WC

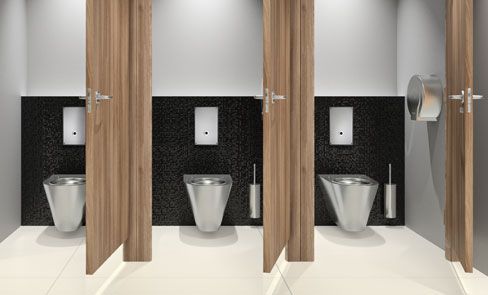

WC direct flush system, a public revolution
