DESCRIPTION

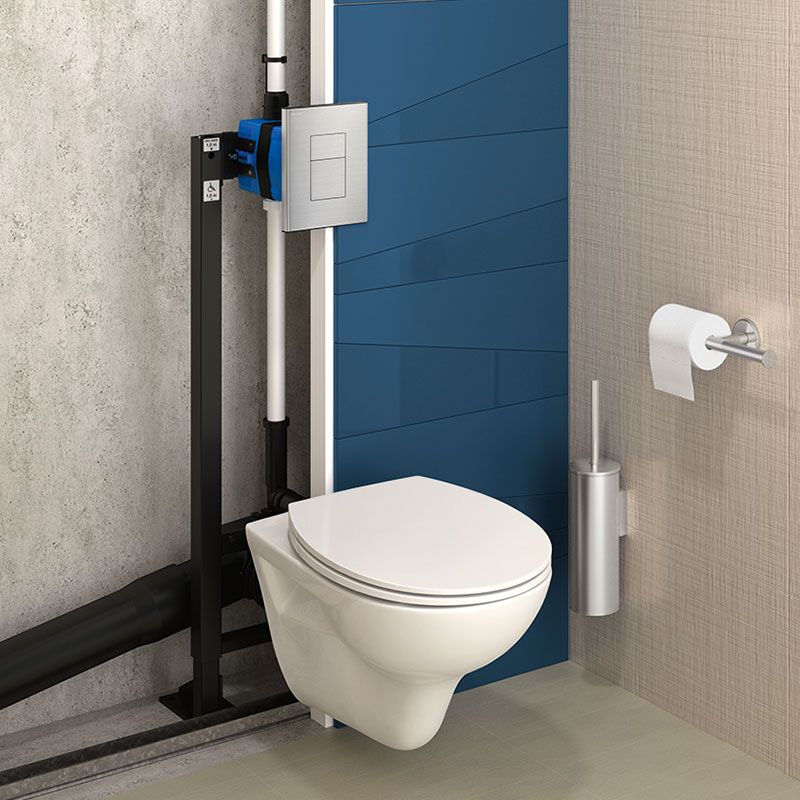

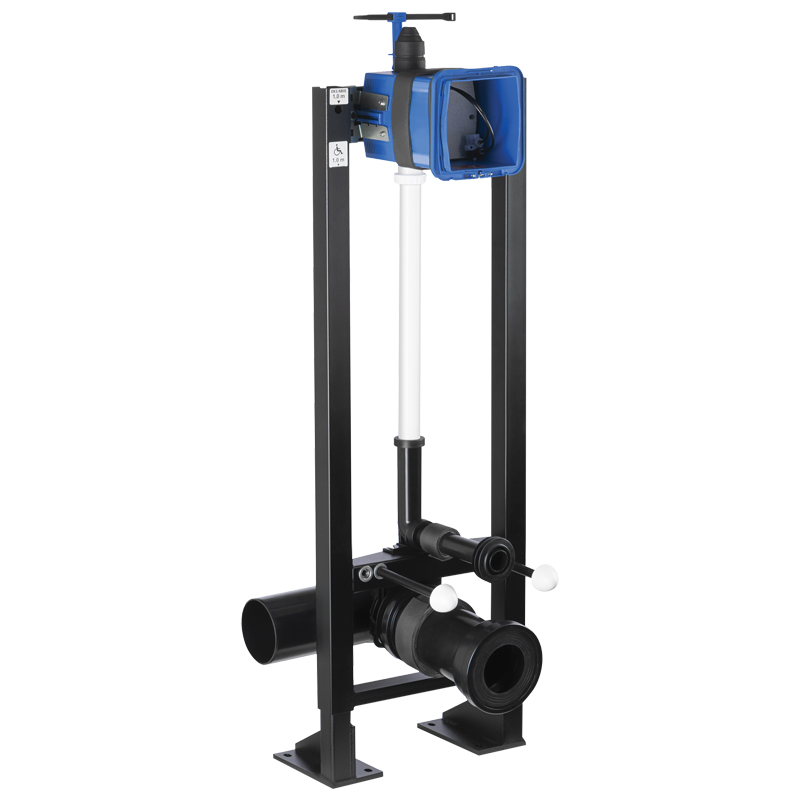

Self-supporting fire retardant TEMPOFIX 3 frame system for WCs
Ref. 565065Self-supporting frame system for wall hung WCs, kit 1/2
Fire retardant CF 60 min - EI60.
Black powder-coated steel frame with large feet for load-bearing floors:
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer and intumescent collar for fire protection.
- ABS soil pipe, Ø 100mm outlet to glue to waterproof seal, with 2 setting positions and intumescent collar for fire protection.
- Compatible with solid walls from 53 to 105mm (4 BA13 and tiles minimum).
Recessed waterproof housing with intumescent collar and fire protection set:
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied premounted.
30-year warranty.
Order with control plate reference 763000.
Fire retardant CF 60 min - EI60.
Black powder-coated steel frame with large feet for load-bearing floors:
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer and intumescent collar for fire protection.
- ABS soil pipe, Ø 100mm outlet to glue to waterproof seal, with 2 setting positions and intumescent collar for fire protection.
- Compatible with solid walls from 53 to 105mm (4 BA13 and tiles minimum).
Recessed waterproof housing with intumescent collar and fire protection set:
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied premounted.
30-year warranty.
Order with control plate reference 763000.
ADVANTAGES
Fire retardant 60 minutes
Quick and easy to install: delivered pre-mounted
Space saving
Adapt to wall thickness

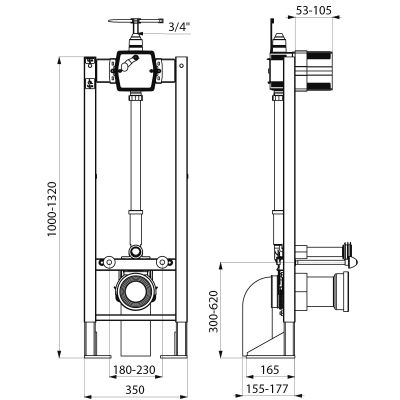

TECHNICAL CHARACTERISTICS
Self-supporting fire retardant TEMPOFIX 3 frame system for WCs
Ref. 565065| Connector | F¾" |
| Technology | Time flow |
| Height | 1000 to 1320mm |
| Depth | 157 - 177mm |
| Width | 350mm |
| Finish | Black powder-coated steel |
| Certificates |
|
| Warranty |
|
VARIANTS
| 565065BE | Self-supporting - for walls 53-105mm - F3/4" - Ø 90mm outlet | ||
|---|---|---|---|
| 565065DE | Self-supporting - for walls 53-105mm - F3/4" - Ø 110mm outlet |

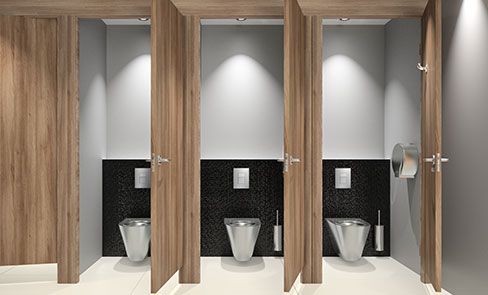

WC direct flush system, a public revolution
Associated products

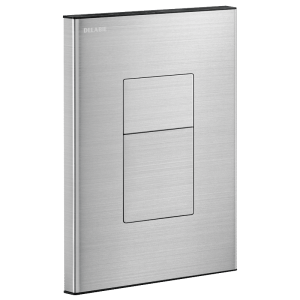

TEMPOFLUX 3 control plate for WCs
