DESCRIPTION

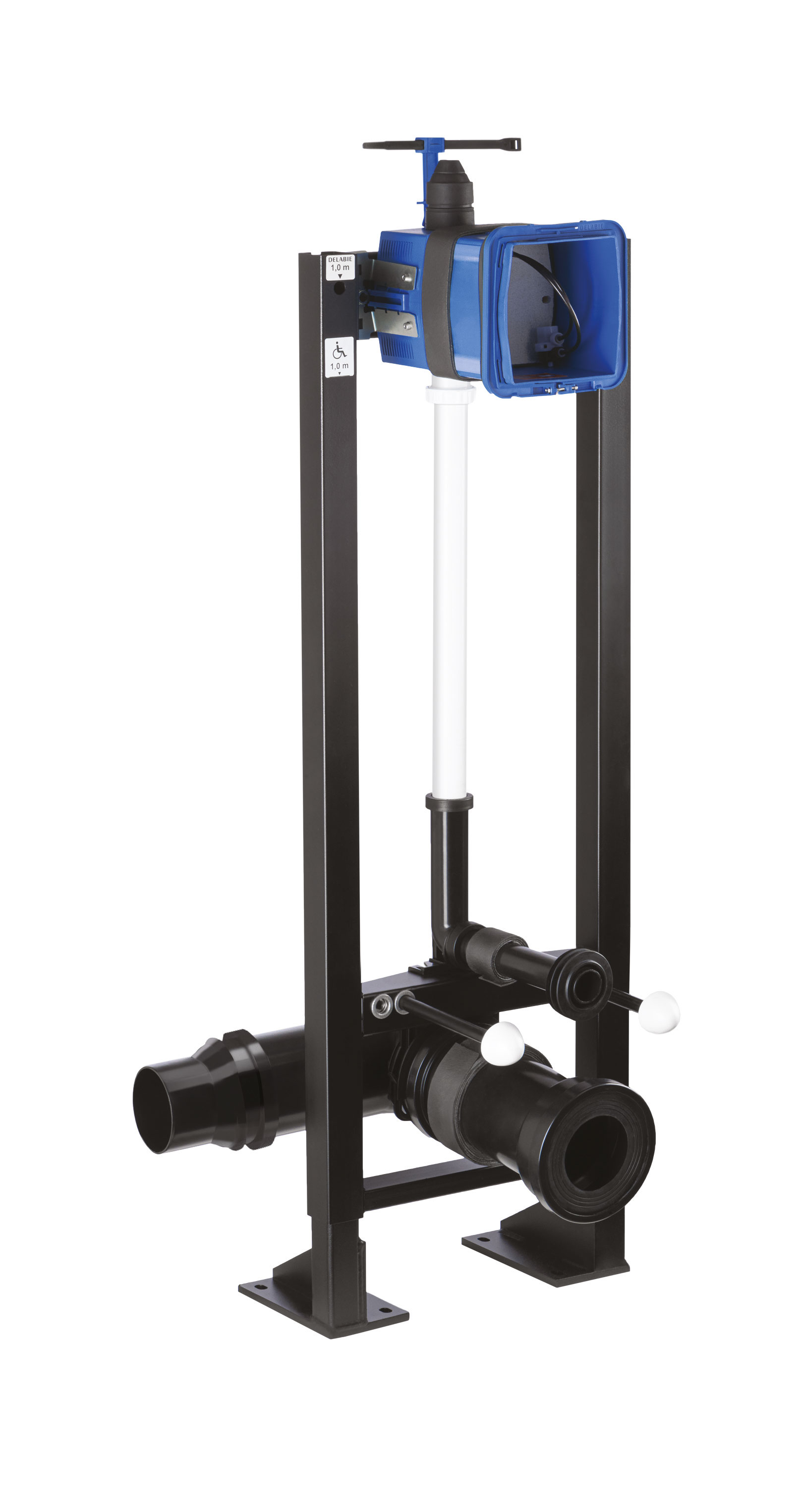

Self-supporting fire retardant TEMPOFIX 3 frame system for WCs
Ref. 565065BESelf-supporting frame system for wall hung WCs, kit 1/2
Fire retardant CF 60 min - EI60.
Black powder-coated steel frame with large feet for load-bearing floors:
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer and intumescent collar for fire protection.
- ABS soil pipe, Ø 90mm outlet to glue to waterproof seal, with 2 setting positions and intumescent collar for fire protection.
- Compatible with solid walls from 53 to 105mm (4 BA13 and tiles minimum).
Recessed waterproof housing with intumescent collar and fire protection set:
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied premounted.
30-year warranty.
Order with control plate reference 763000.
Fire retardant CF 60 min - EI60.
Black powder-coated steel frame with large feet for load-bearing floors:
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer and intumescent collar for fire protection.
- ABS soil pipe, Ø 90mm outlet to glue to waterproof seal, with 2 setting positions and intumescent collar for fire protection.
- Compatible with solid walls from 53 to 105mm (4 BA13 and tiles minimum).
Recessed waterproof housing with intumescent collar and fire protection set:
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied premounted.
30-year warranty.
Order with control plate reference 763000.
ADVANTAGES
Fire retardant 60 minutes
Quick and easy to install: delivered pre-mounted
Space saving
Adapt to wall thickness
TECHNICAL CHARACTERISTICS
Self-supporting fire retardant TEMPOFIX 3 frame system for WCs
Ref. 565065BEConnector | F¾" |
Technology | Time flow |
Height | 1000 to 1320mm |
Depth | 157 - 177mm |
Width | 350mm |
Finish | Black powder-coated steel |
Certificates | |
Warranty |
VARIANTS
565065 | Self-supporting- for walls 53-105mm- F¾" - Ø 100mm outlet | ||
---|---|---|---|
565065DE | Self-supporting - for walls 53-105mm - F3/4" - Ø 110mm outlet |
VARIANTS
565065 | Self-supporting- for walls 53-105mm- F¾" - Ø 100mm outlet | ||
---|---|---|---|
565065DE | Self-supporting - for walls 53-105mm - F3/4" - Ø 110mm outlet |
