TEMPOFIX 3 self-supporting frame system for WCs
Ref. 564065
For time flow or battery-operated electronic valves - Ø 100mm
For time flow or battery-operated electronic valves - Ø 100mm
DESCRIPTION

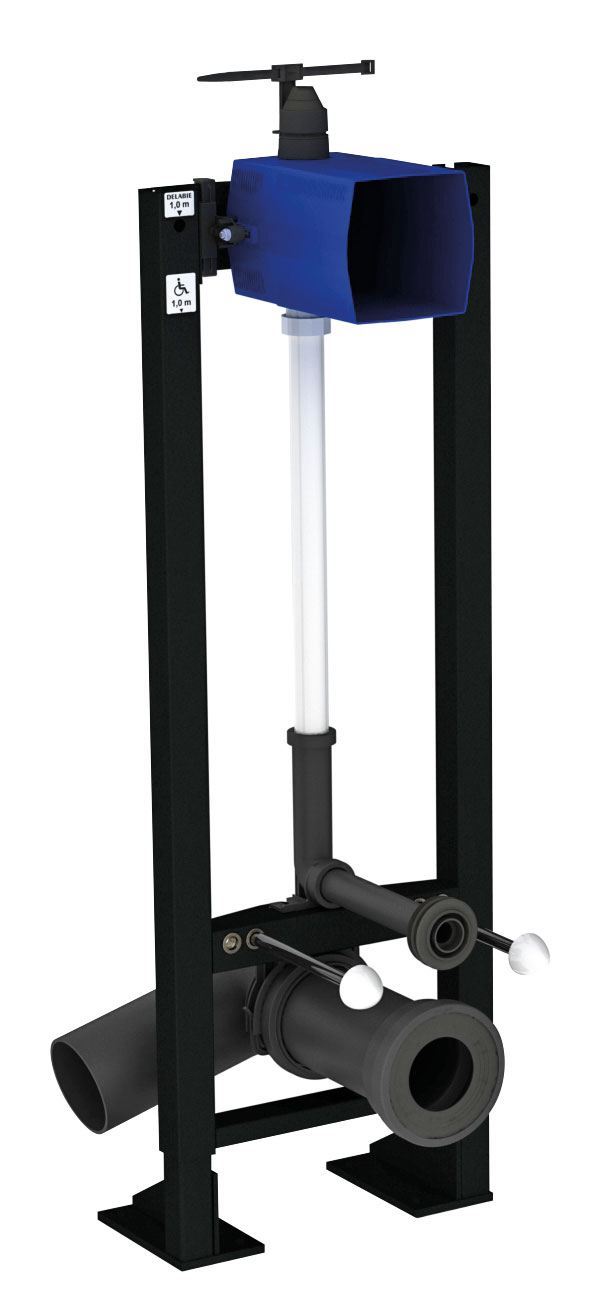

TEMPOFIX 3 self-supporting frame system for WCs
Ref. 564065Self-supporting frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- PVC soil pipe, Ø 100mm outlet to glue to waterproof seal, with 2 setting positions.
Recessed waterproof housing: for flush system without cistern, directly connected to pipework.
- Compatible with electronic or time flow WC valve.
- Compatible with CR123 6V Lithium batteries.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.
Order with control plate references 464006, 464056, 465006, 465056, 763000, 763040 or 763041or 763030.
Black powder-coated steel frame:
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- PVC soil pipe, Ø 100mm outlet to glue to waterproof seal, with 2 setting positions.
Recessed waterproof housing: for flush system without cistern, directly connected to pipework.
- Compatible with electronic or time flow WC valve.
- Compatible with CR123 6V Lithium batteries.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.
Order with control plate references 464006, 464056, 465006, 465056, 763000, 763040 or 763041or 763030.
ADVANTAGES
![Maintenance aisée - Installation aisée](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
Quick and easy to install: delivered pre-mounted
![Faible espacement au mur - Encombrement limité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/8/9/2/2987-12-eng-US/encombrement-limite.png)
Space-saving
![Universel](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/5/1/3/3155-12-eng-US/universel.png)
Adapt to wall thickness
![Piles](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/4/0/3/3043-12-eng-US/pile.png)
Compatible with 6V Lithium batteries
TECHNICAL CHARACTERISTICS
TEMPOFIX 3 self-supporting frame system for WCs
Ref. 564065Connector | ¾" |
Technology | Electronic and time flow |
Height | 1000 to 1320mm |
Depth | 157 - 177mm |
Width | 350mm |
Diameter | Ø 100mm outlet |
Finish | Black powder-coated steel |
Warranty | ![]() |
VARIANTS
564065BE | Batteries- self-supporting- for walls 10-120mm -F¾"- Ø 90mm outlet | ||
---|---|---|---|
564065DE | Batteries - self-supporting- for walls 10-120mm - F¾" - Ø 110mm outlet |
