DESCRIPTION

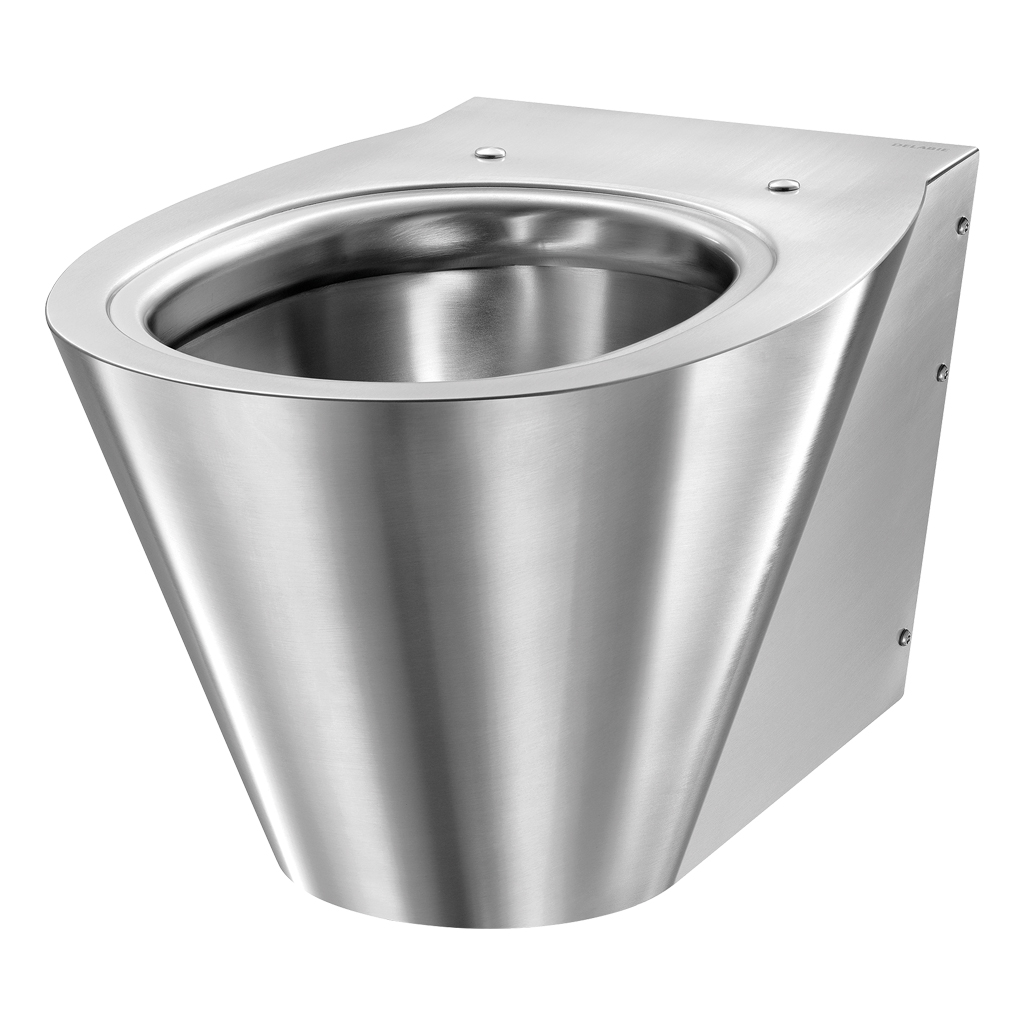

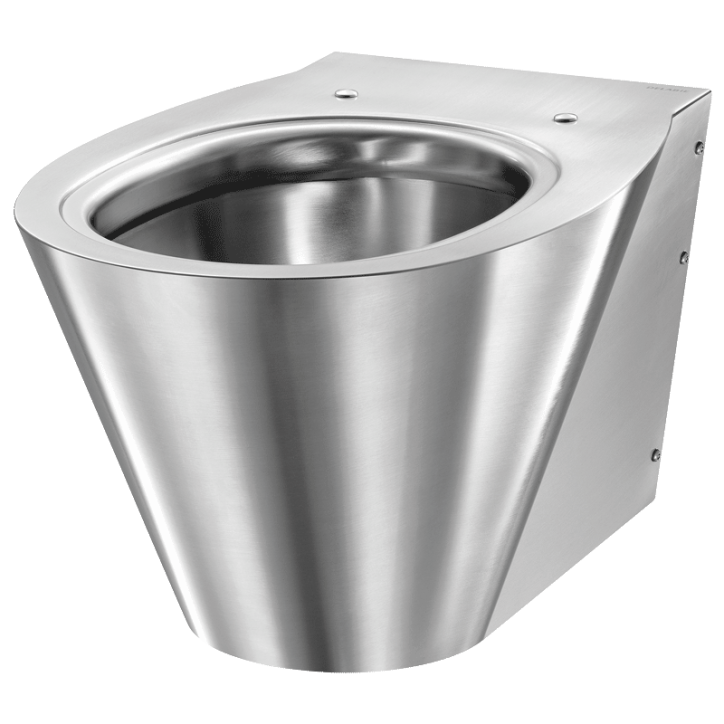

Wall-hung BCN S WC pan
Ref. 110112Wall-hung WC pan, 360 x 340 x 550mm.
Compatible with all standard frame systems available on the market.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Dual finish: bright polished pan interior and polished satin exterior.
Stainless steel thickness: 1.5mm.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm.
Water saving: works with 4L or more of water.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with fixing plate and 6 theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
30-year warranty.
Weight: 12kg.
Compatible with all standard frame systems available on the market.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Dual finish: bright polished pan interior and polished satin exterior.
Stainless steel thickness: 1.5mm.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm.
Water saving: works with 4L or more of water.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with fixing plate and 6 theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
30-year warranty.
Weight: 12kg.
ADVANTAGES

Bacteriostatic 304 stainless steel

Polished pan interior

Simple and elegant design

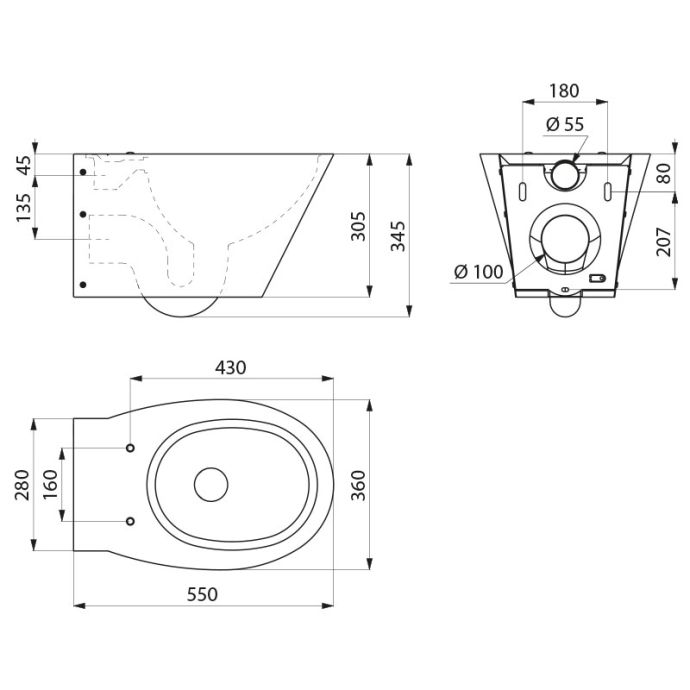

TECHNICAL CHARACTERISTICS
Wall-hung BCN S WC pan
Ref. 110112Height | 340mm |
Length | 550mm |
Width | 360mm |
Thickness | 1.5mm |
Finish | Dual finish 304 stainless steel |
Certificates |
![]() ![]() |
Warranty | ![]() |
VARIANTS
110110 | Satin finish |
---|
VARIANTS
110110 | Satin finish |
---|
