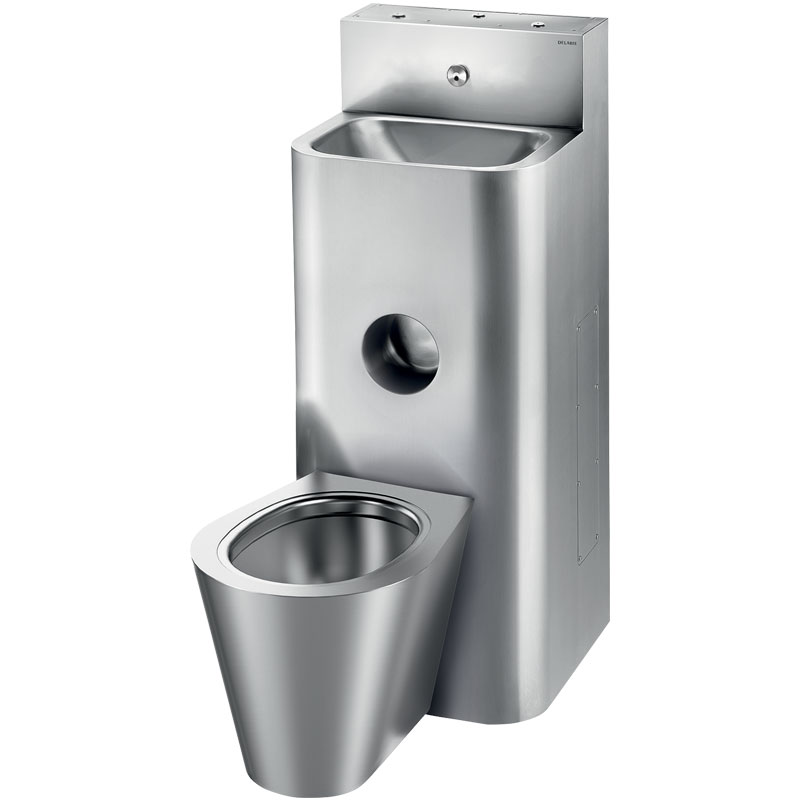

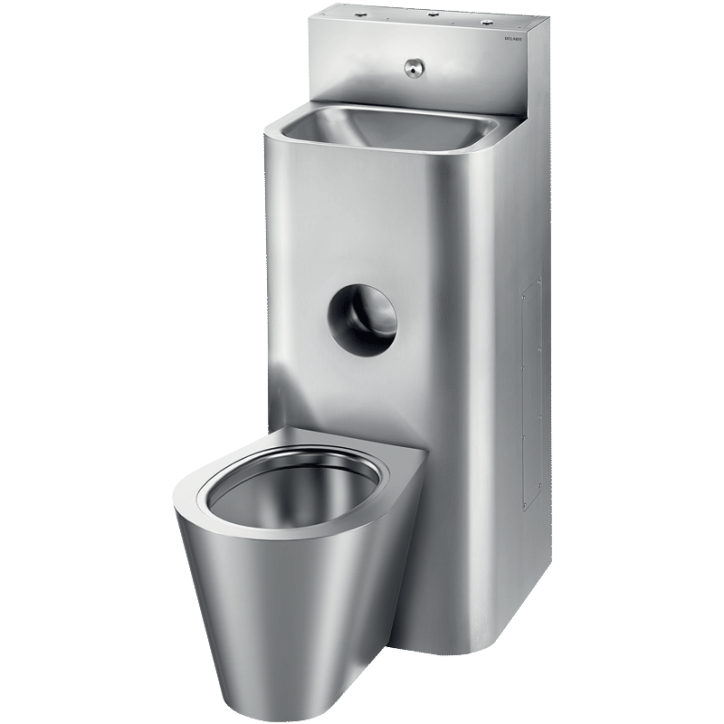

Combi KOMPACT HW/CW - washbasin and floor-standing WC pan
Ref. 161800
Polished satin 304 stainless steel - Wall-mounted - Central WC pan
Polished satin 304 stainless steel - Wall-mounted - Central WC pan
DESCRIPTION
Combi KOMPACT HW/CW - washbasin and floor-standing WC pan
Ref. 161800Combination unit: washbasin and floor-standing central WC pan with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top, with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7-second time flow, M½".
Available with 2 buttons cold water/mixed water.
WC equipped with time flow flush valve, 7-second time flow, M¾".
Water inlet: washbasin M½", WC M¾".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin trap.
Easy to install: only one water outlet for both washbasin and WC, water inlet and outlet already connected.
Weight: 36kg.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top, with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7-second time flow, M½".
Available with 2 buttons cold water/mixed water.
WC equipped with time flow flush valve, 7-second time flow, M¾".
Water inlet: washbasin M½", WC M¾".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin trap.
Easy to install: only one water outlet for both washbasin and WC, water inlet and outlet already connected.
Weight: 36kg.
ADVANTAGES
Bacteriostatic 304 stainless steel
Suitable for the secure sector

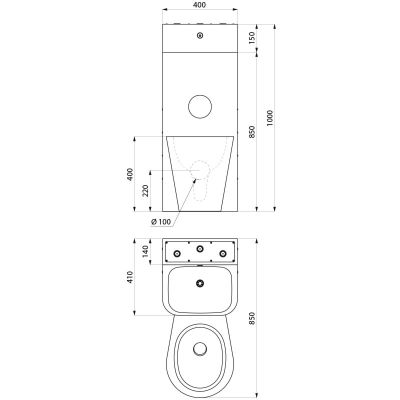

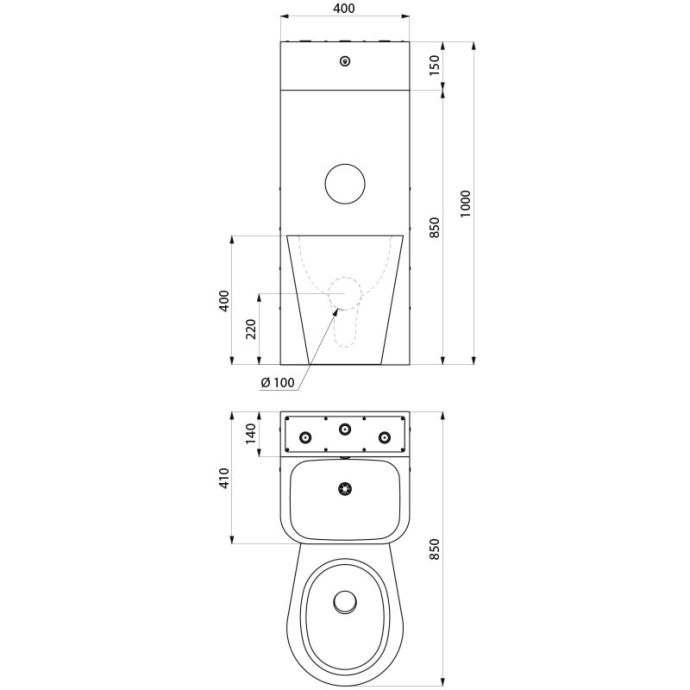

TECHNICAL CHARACTERISTICS
Combi KOMPACT HW/CW - washbasin and floor-standing WC pan
Ref. 161800Height | 1000mm |
Length | 400mm |
Width | 850mm |
Thickness | 2mm |
Finish | Polished satin 304 stainless steel |
Certificates | |
Warranty |
VARIANTS

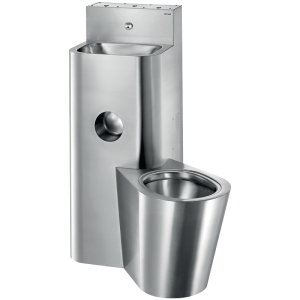

160300 | Wall-mounted WC - WC pan on the right side | ||
---|---|---|---|
160400 | Wall-mounted WC - WC pan on the left side | ||
160500 | Wall-mounted WC - centered WC pan | ||
160600 | Floor-standing WC - WC pan on the right side | ||
160700 | Floor-standing WC - WC pan on the left side | ||

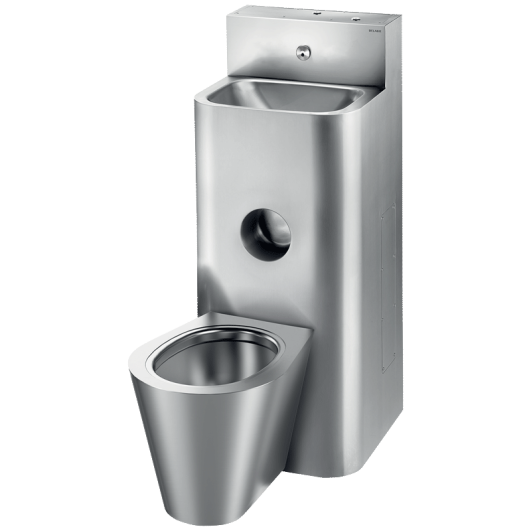

160800 | Floor-standing WC - centered WC pan | ||
161600 | Floor-standing WC - WC pan on the right side - 2 push-buttons CW/MW | ||
161700 | Floor-standing WC - WC pan on the left side - 2 push-buttons CW/MW |
