DESCRIPTION

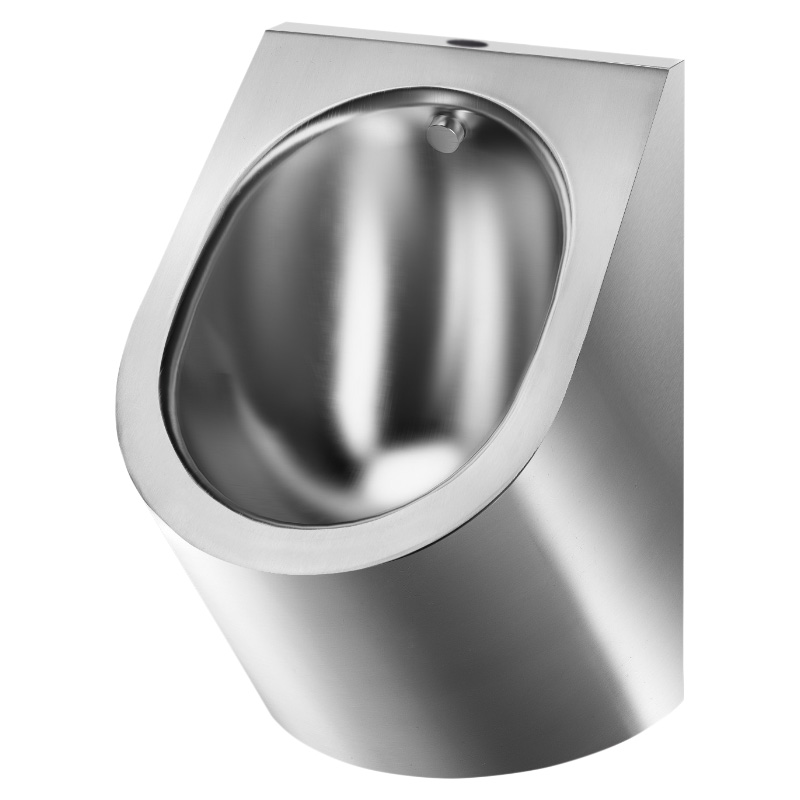

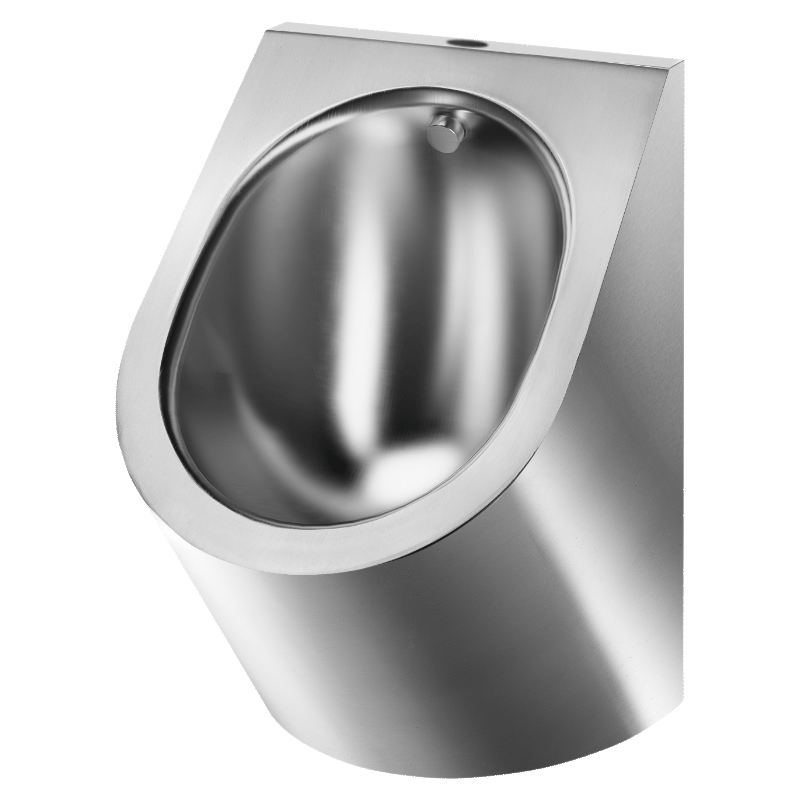

DELTA wall-hung urinal
Ref. 134710Wall-hung individual rimless urinal.
Compatible with all standard frame systems on the market.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Top (exposed) water inlet.
Recessed or exposed waste outlet. Concealed trap.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with 1½" P trap, fixing elements and theft prevention TORX security screws.
CE marked. Complies with European standard EN 13407 for 2L flush.
Weight: 7.5kg.
30-year warranty.
Compatible with all standard frame systems on the market.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Top (exposed) water inlet.
Recessed or exposed waste outlet. Concealed trap.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with 1½" P trap, fixing elements and theft prevention TORX security screws.
CE marked. Complies with European standard EN 13407 for 2L flush.
Weight: 7.5kg.
30-year warranty.
ADVANTAGES
Bacteriostatic 304 stainless steel

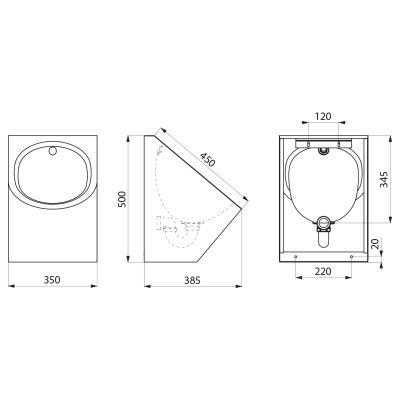

TECHNICAL CHARACTERISTICS
DELTA wall-hung urinal
Ref. 134710| Height | 500mm |
| Length | 385mm |
| Width | 350mm |
| Thickness | 1.2mm |
| Finish | Polished satin 304 stainless steel |
| Certificates |
|
| Warranty |
|
VARIANTS
| 134770 | Recessed inlet - Polished satin finish | ||
|---|---|---|---|
| 134772 | Recessed inlet - Dual finish | ||
| 134170 | Exposed inlet - Recessed waste |
Associated products
LISO urinal divider for wall-mounting
Polished satin 304 stainless steel - H. 700mm
Ref. 100590
Tube inlet
For DELABIE DELTA urinal
Ref. 757162
FINO wall-hung urinal
Polished satin 304 stainless steel - Top inlet
Ref. 135110
VARIANTS
| 134770 | Recessed inlet - Polished satin finish | ||
|---|---|---|---|
| 134772 | Recessed inlet - Dual finish | ||
| 134170 | Exposed inlet - Recessed waste |
