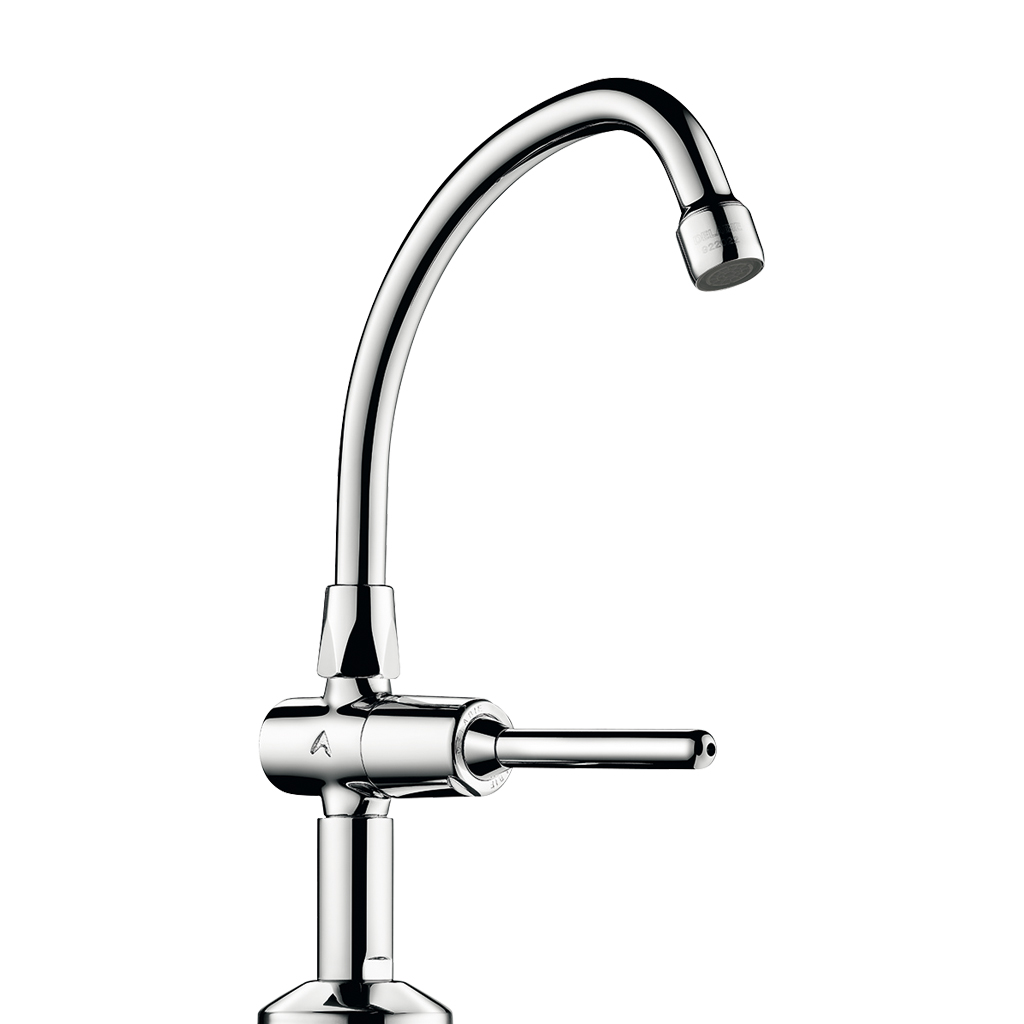

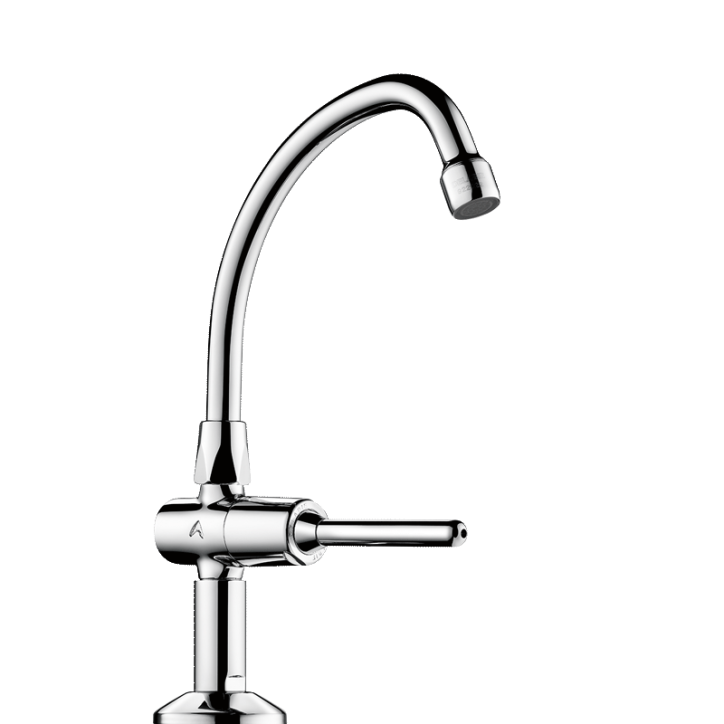

TEMPOSTOP time flow pillar tap, swan neck spout & control lever L150mm

Ref. 737152
With lever control
See variants See variants
TEMPOSTOP time flow pillar tap, swan neck spout & control lever L150mm

Presentation

DESCRIPTION

TEMPOSTOP time flow pillar tap, swan neck spout & control lever L150mm

Ref. 737152
Deck-mounted time flow basin tap.
Swivelling swan neck spout L. 150mm.
Scale-resistant flow straightener pre-set at 3 lpm.
Adjustable flow rate.
Lever control.
Automatic timed shut-off ~3 seconds (7 or 15 seconds available on request).
Fixing with back-nut.
30-year warranty.

ADVANTAGES

Anti-vandalisme

High-strength: chrome-plated brass

Confort - Ergonomie - Déclenchement souple

Ergonomic: lever control

Economie d'eau

Water saving: 3 lpm

Characteristics

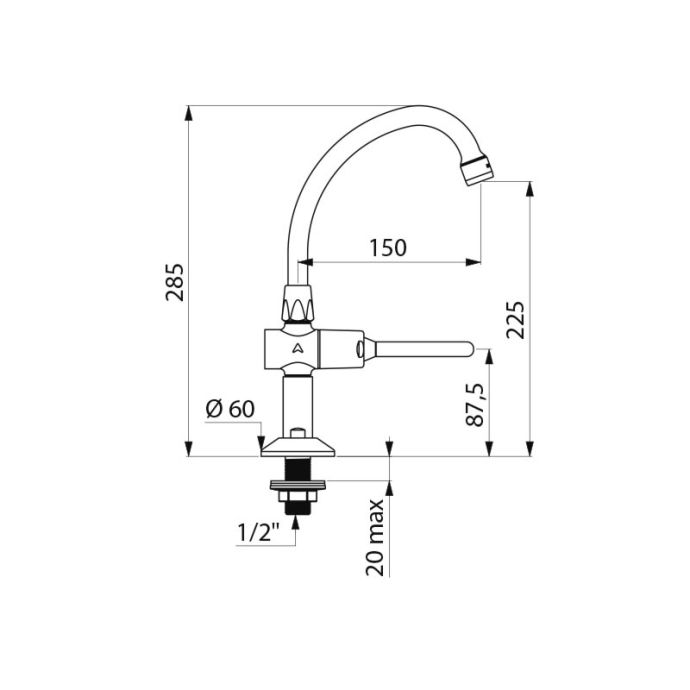

TECHNICAL CHARACTERISTICS

TEMPOSTOP time flow pillar tap, swan neck spout & control lever L150mm

Ref. 737152
Connector ½"
Height 285mm
Depth 225mm
Spout length 150mm
Flow rate 3 lpm
Finish Brass
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year
Repairability
TEMPOSTOP time flow pillar tap, swan neck spout & control lever L150mm
Ref. 737152

Downloads

DOWNLOADS

TEMPOSTOP time flow pillar tap, swan neck spout & control lever L150mm

Ref. 737152

To download one or several documents linked to this product, please select the type of file you require :

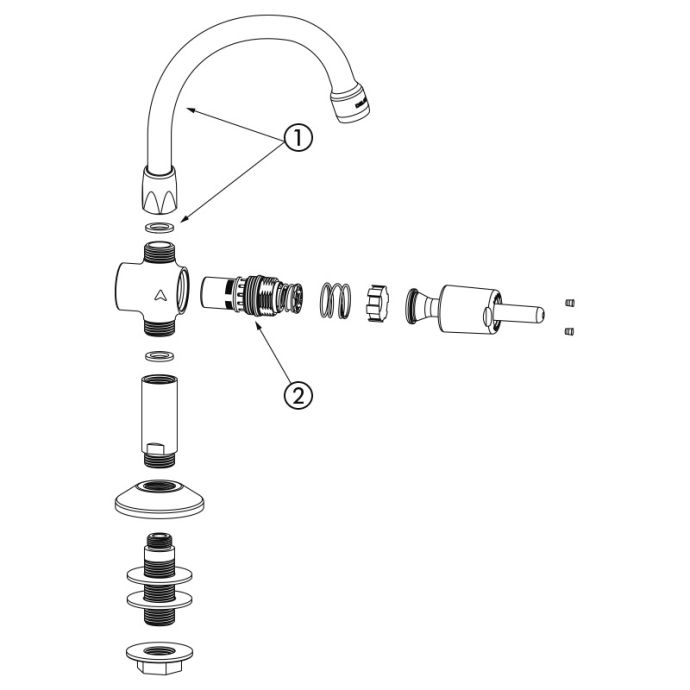

Spare parts

SPARE PARTS

TEMPOSTOP time flow pillar tap, swan neck spout & control lever L150mm

Ref. 737152
1. 743323
Time flow cartridge

VARIANTS

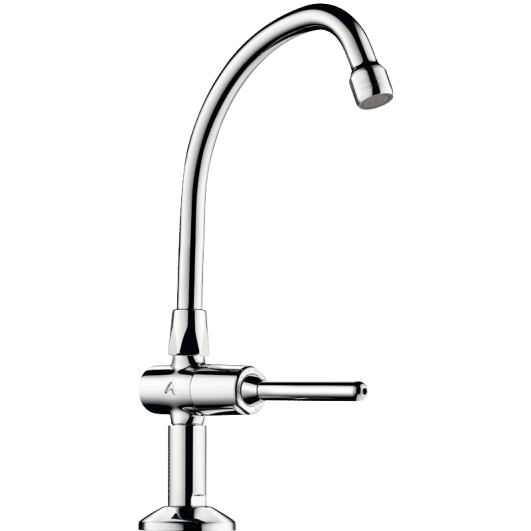

737202 TEMPOSTOP tap H.305 L.195

Associated products

VARIANTS

737202 TEMPOSTOP tap H.305 L.195
