Floor trap

Ref. 682001DE
For tiled or concrete floors
Floor trap

Presentation

DESCRIPTION

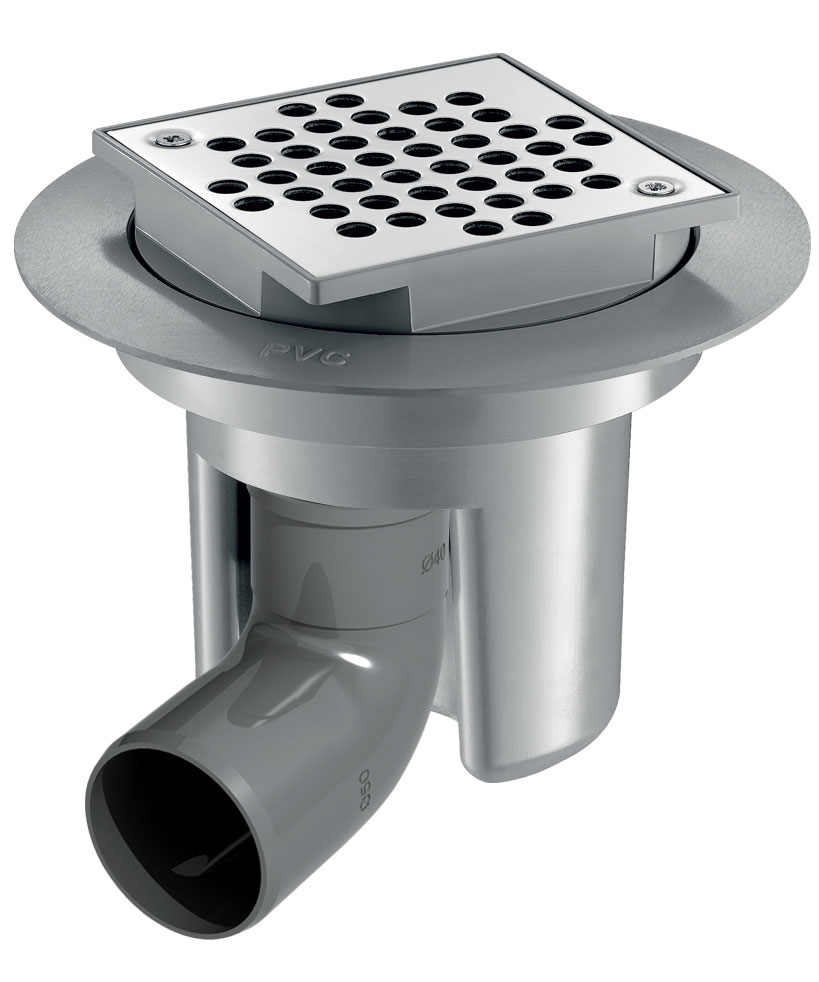

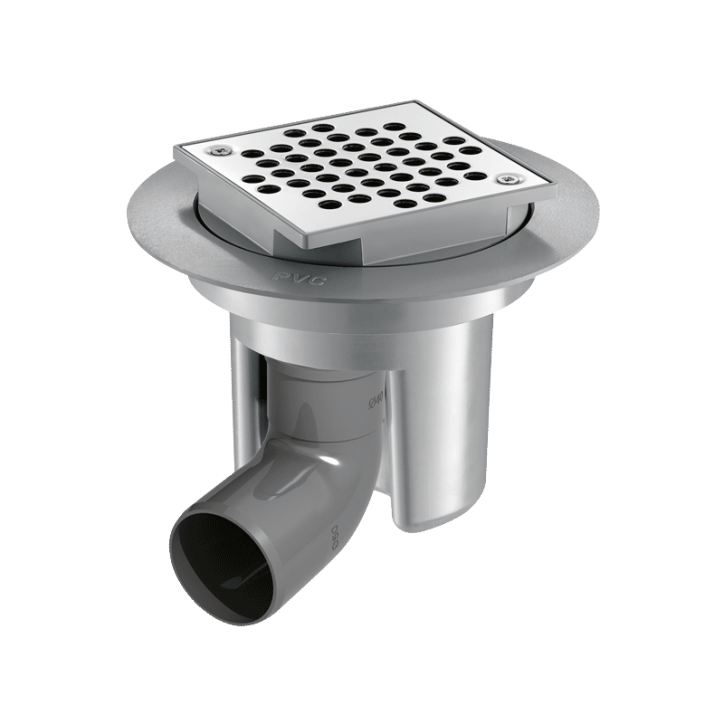

Floor trap

Ref. 682001DE
Floor trap for hard floors (tiles or concrete floors) with adjustable height:
Flow rate 36 lpm (standard).
Water level 50mm.
100 x 100mm bright polished stainless steel grid.
Ø 50mm horizontal outlet integrated into the height of the floor trap (saves height and space in all directions).
Integrated waterproof collar to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 80mm with extension.
Grill fixed with two stainless steel screws.
30-year warranty.

ADVANTAGES

Maintenance aisée - Installation aisée

Trap adapted to floor type, adjustable height

Nettoyage aisé

Plunger with handle, body free of impurities

Characteristics

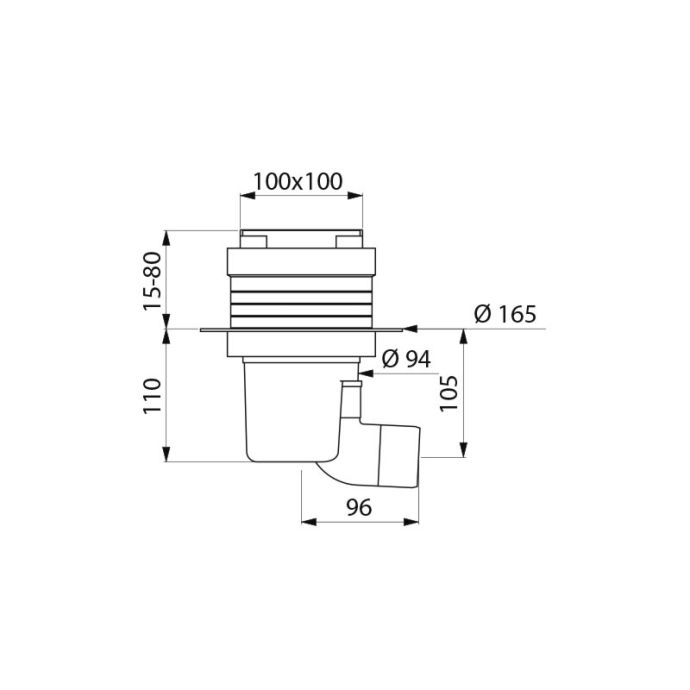

TECHNICAL CHARACTERISTICS

Floor trap

Ref. 682001DE
Height 190mm max
Length 100mm
Width 100mm
Flow rate 36 lpm
Warranty 30-Year

Downloads

DOWNLOADS

Siphon de sol

Ref. 682001DE

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

682001 Ø 40mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
682001UK Ø 43mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
683001 Ø 40mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
683001UK Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
683002 Ø 40mm outlet - soft or vinyl floors - 150 x 150mm - Height ≤ 85mm
683002UK Ø 43mm outlet - soft or vinyl floors - Ø 114mm - Height ≤ 85mm
684000 Ø 40mm outlet- tiled or concrete floors- 140 x 140mm
