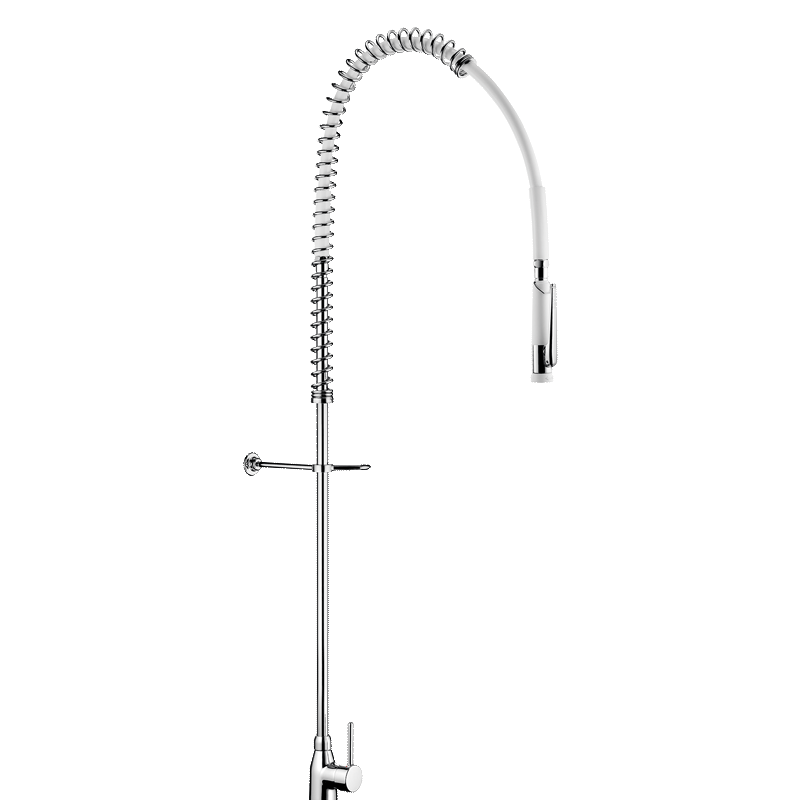

Pre-rinse set with mixer

Ref. 6693
Without bib tap
Pre-rinse set with mixer

Presentation

DESCRIPTION

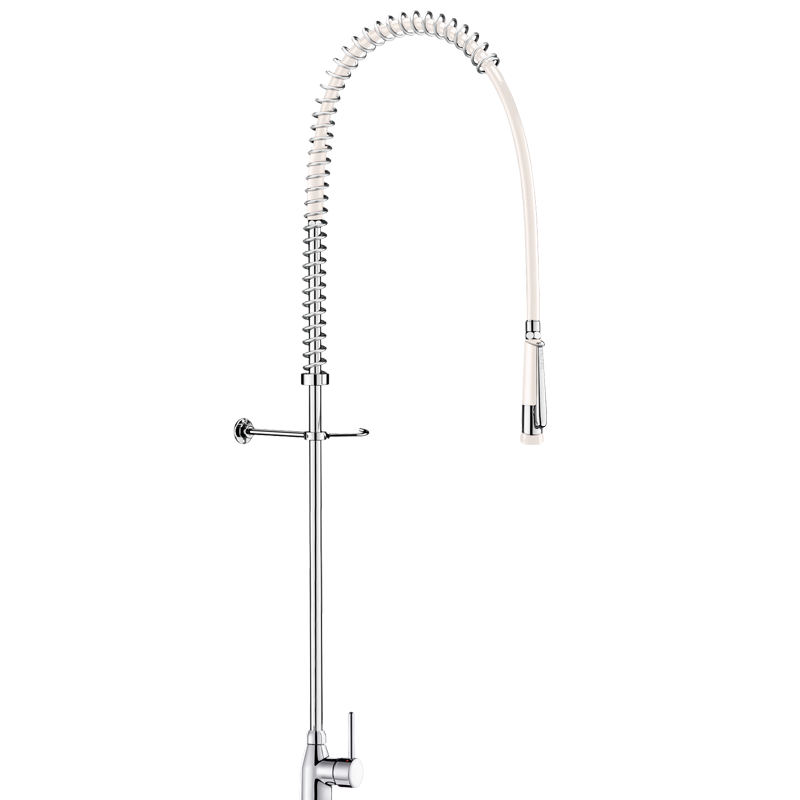

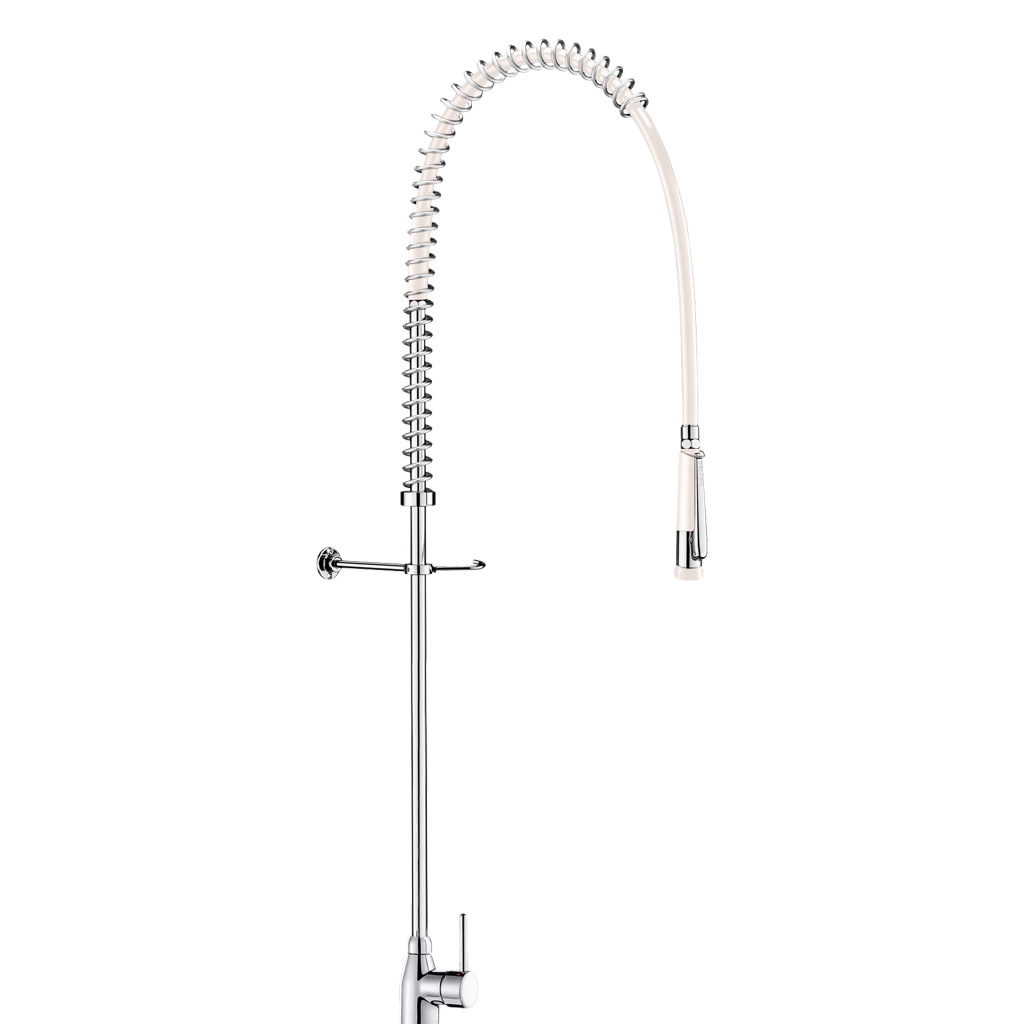

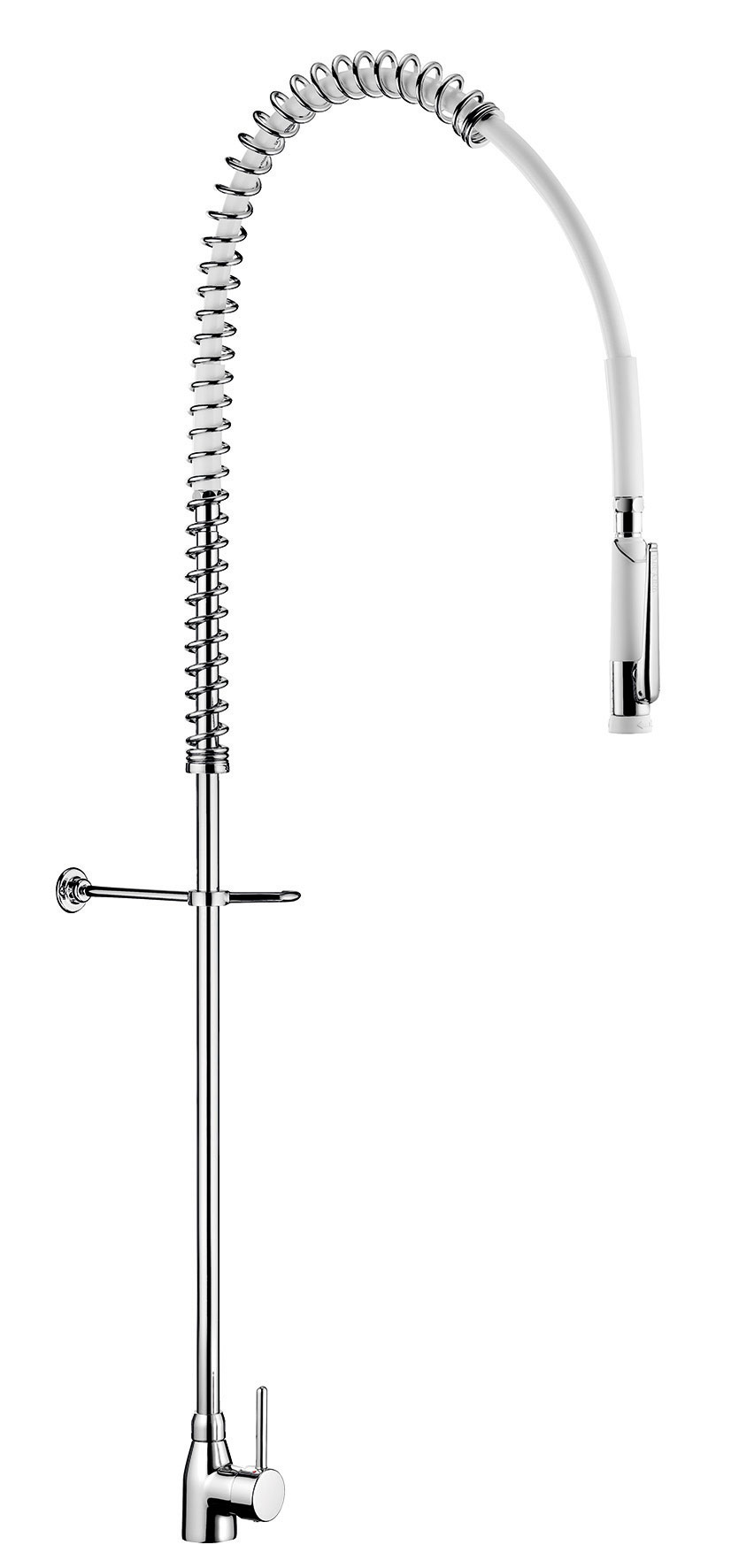

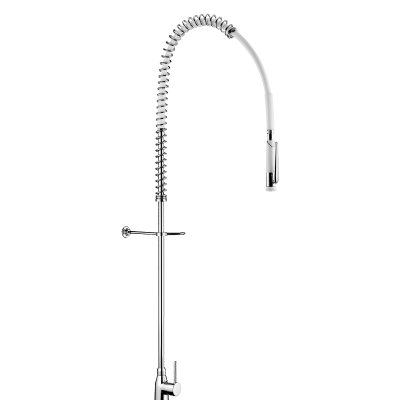

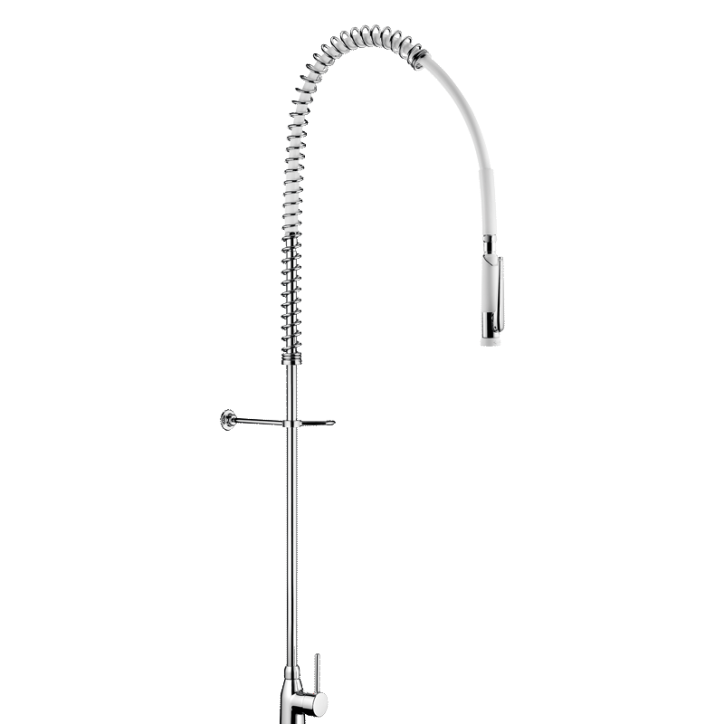

Pre-rinse set with mixer

Ref. 6693
Complete pre-rinse set without bib tap suitable for intensive use in professional kitchens.
Deck-mounted single hole mixer with slimline control lever.
Supplied with F3/8" flexibles and non-return valves.

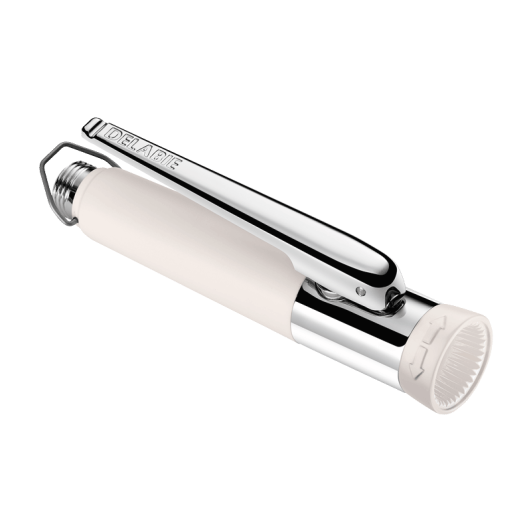

White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.

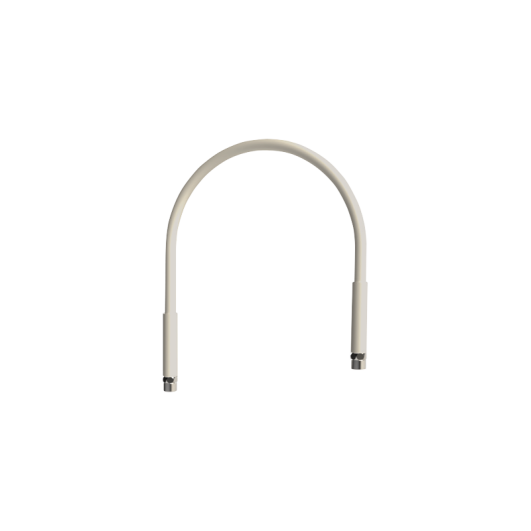

Reinforced, food-grade, white flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Comfort: hand spray with adjustable jet

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: PVC flexible, scale-resistant spray

Anti-vandalisme

Increased resistance: high quality flexible

Characteristics

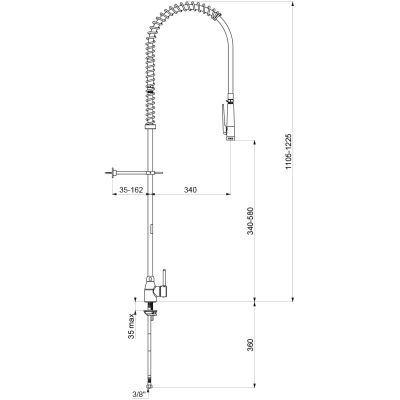

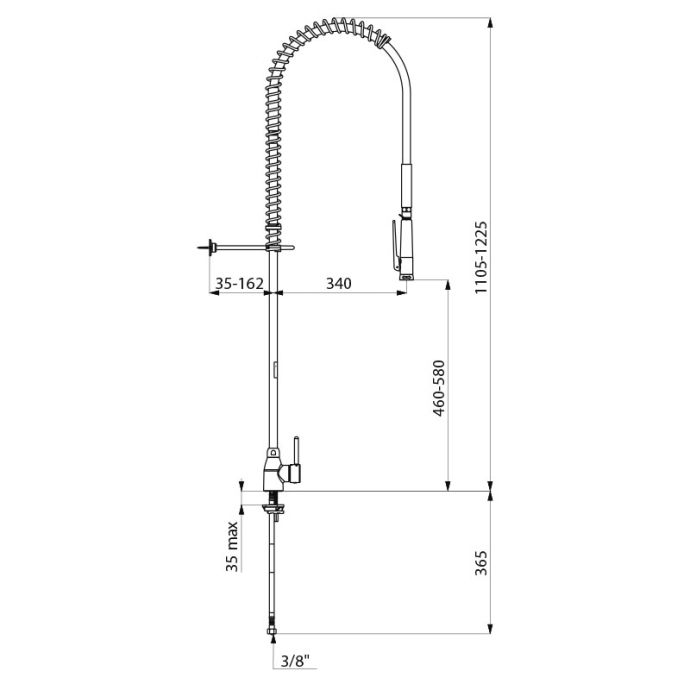

TECHNICAL CHARACTERISTICS

Pre-rinse set with mixer

Ref. 6693
Connector F3/8"
Height 1105 - 1225mm
Drop height 340 - 580mm
Flow rate 9 lpm via the hand spray
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Combiné de prélavage monotrou avec mitigeur

Ref. 6693

To download one or several documents linked to this product, please select the type of file you require :

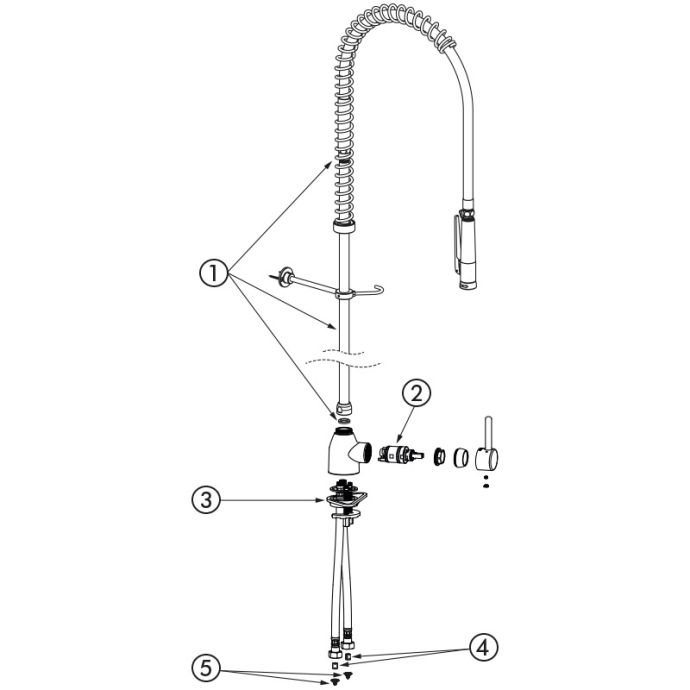

Spare parts

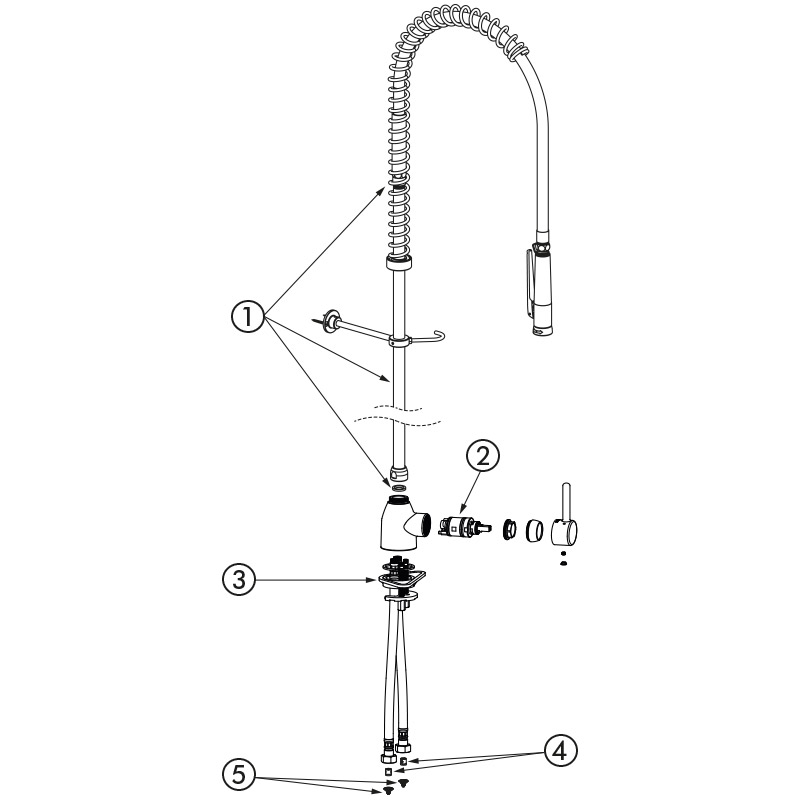

SPARE PARTS

Pre-rinse set with mixer

Ref. 6693
1. 433020
White pre-rinse set with no valve
2. NS262
Ø35mm ceramic cartridge
3. 256P
Fixing plate
4. 2510SES
Locking kit
5. 900010
Non-return valve
6. 60438.10P
Conical filter

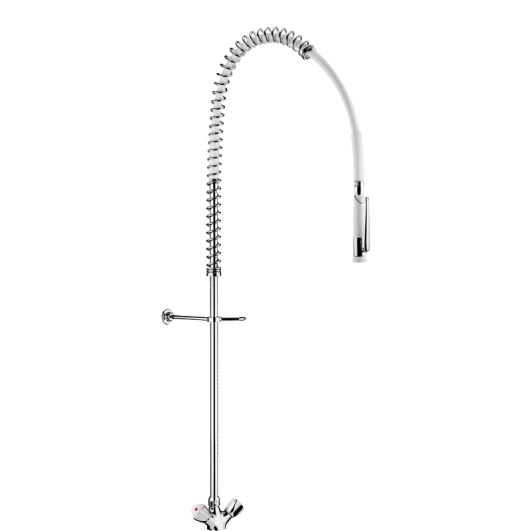

VARIANTS

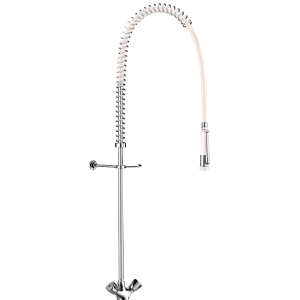

6892 Hand spray with scale-resistant nipples - Bib tap and telescopic spout
6893 Hand spray with scale-resistant nipples - Without bib tap
6692 Hand spray with scale-resistant nozzle - Bib tap and telescopic spout

VARIANTS

6892 Hand spray with scale-resistant nipples - Bib tap and telescopic spout
6893 Hand spray with scale-resistant nipples - Without bib tap
6692 Hand spray with scale-resistant nozzle - Bib tap and telescopic spout
