DESCRIPTION

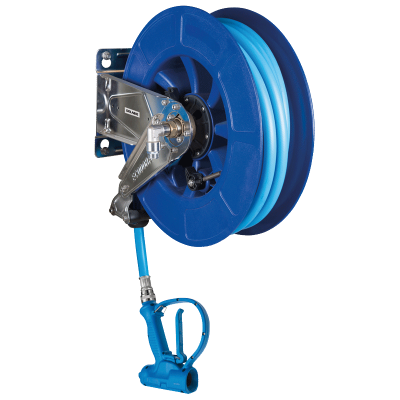

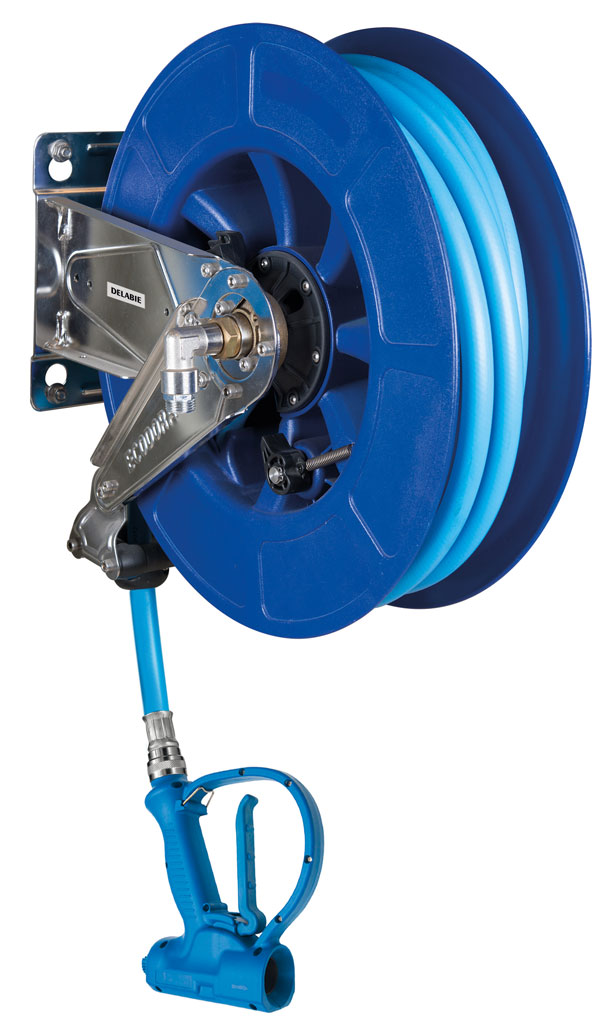

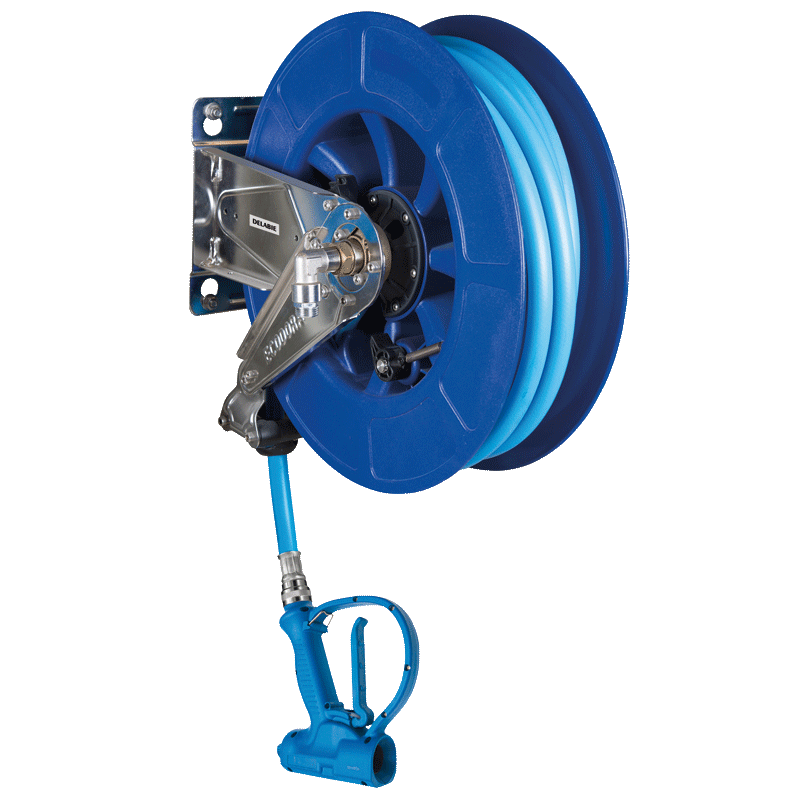

Auto-rewind hose reel
Ref. 5676T2Auto-rewind hose reel with flexible hose L. 15m and guide rollers:
Maximum temperature 70°C.
Flow rate 23 lpm at 3 bar.
Maximum pressure 20 bar, 12 bar with trigger-op hand spray.
Hose reel with ABS drum Ø 425mm.
304 Stainless steel bracket.
Order separately: an angled stopcock with integrated vacuum breaker to prevent the back flow of polluted water into the mains supply.
Hose reel with 30-year warranty.
Maximum temperature 70°C.
Flow rate 23 lpm at 3 bar.
Maximum pressure 20 bar, 12 bar with trigger-op hand spray.
Hose reel with ABS drum Ø 425mm.
304 Stainless steel bracket.
Order separately: an angled stopcock with integrated vacuum breaker to prevent the back flow of polluted water into the mains supply.
Hose reel with 30-year warranty.
ADVANTAGES
Easy to clean: smooth surfaces
Stainless steel hose reel with hose lock

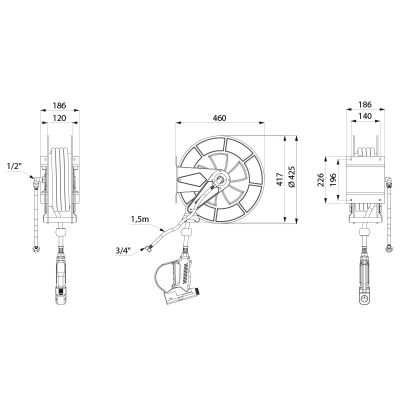

TECHNICAL CHARACTERISTICS
Auto-rewind hose reel
Ref. 5676T2| Connector | 3/4" |
| Height | 417mm |
| Depth | 460mm |
| Length | 186mm |
| Finish | ABS |
| Warranty |
|
| Repairability |  |
Spare parts
SPARE PARTS
Auto-rewind hose reel
Ref. 5676T2
| 1. | 435576 |
|
Flexible hose for auto-rewind hose reel |
| 2. | 433011 |
|
Shock-resistant trigger-operated hand spray |
VARIANTS
| 5675T2 | 304 stainless steel auto-rewind hose reel | ||
|---|---|---|---|
| 433011 | Shock-resistant trigger-operated hand spray | ||
| 435576 | Hose for hose reel | ||
| 5679 | Swivelling bracket for auto rewind hose reel |
Associated products
Shock-resistant trigger-operated hand spray
With adjustable jet
Ref. 433011
Swivelling bracket for auto rewind hose reel
304 Stainless steel
Ref. 5679
M1/2" stopcock
Integrated back flow prevention device
Ref. 158100
VARIANTS
| 5675T2 | 304 stainless steel auto-rewind hose reel | ||
|---|---|---|---|
| 433011 | Shock-resistant trigger-operated hand spray | ||
| 435576 | Hose for hose reel | ||
| 5679 | Swivelling bracket for auto rewind hose reel |
