Deck-mounted single-hole mixer - 60 lpm

Ref. 5652
Swivelling spout H. 685mm L. 300mm
See variants See variants
Deck-mounted single-hole mixer - 60 lpm

Presentation

DESCRIPTION

Deck-mounted single-hole mixer - 60 lpm

Ref. 5652
Deck-mounted single hole mixer with extension column for installation on stove tops.
Swivelling tubular spout Ø 22mm, H. 685mm L. 300mm with hygienic flow straightener.
Ceramic cartridge Ø 45mm.
Flow rate 60 lpm at 3 bar.
Spout with smooth interior.
Slimline control lever.
Chrome-plated brass body and spout.
Soldered copper pipe water inlets.
Reinforced fixing.
30-year warranty.

ADVANTAGES

Remplissage rapide

Rapid-fill: flow rate 60 lpm at 3 bar

Anti-vandalisme

Body and spout suitable for professional use

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: spout with smooth interior

Endurance - Fiabilité

Reinforced fixing

Characteristics

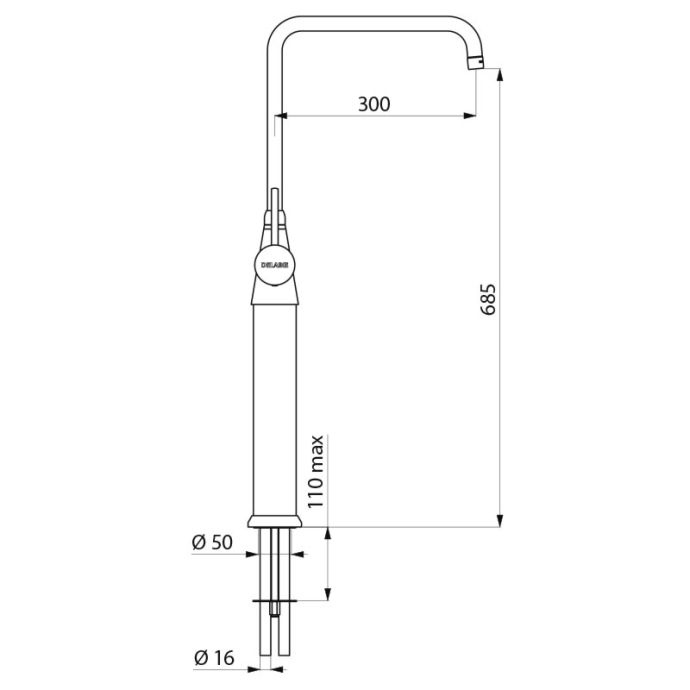

TECHNICAL CHARACTERISTICS

Deck-mounted single-hole mixer - 60 lpm

Ref. 5652
Connector Copper tails
Drop height 685mm
Spout length 300mm
Flow rate 60 lpm
Finish Chrome-plated brass
Certificates ACS Logo WRAS
Warranty 30-Year
Repairability
Deck-mounted single-hole mixer - 60 lpm
Ref. 5652

Downloads

DOWNLOADS

Deck-mounted single-hole mixer - 60 lpm

Ref. 5652

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

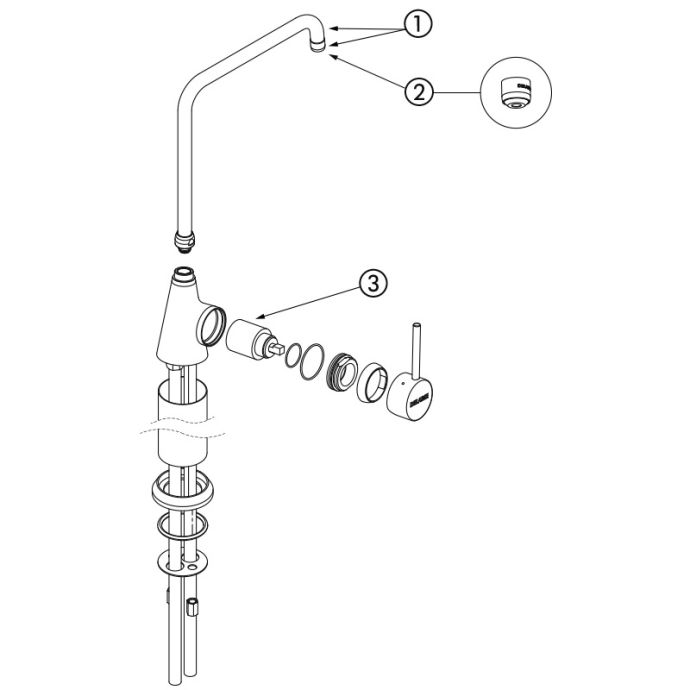

SPARE PARTS

Deck-mounted single-hole mixer - 60 lpm

Ref. 5652
1. 963300245F
Swivelling, tubular spout
2. 921022.2P
Star-shaped flow straightener
3. NS565
Ø45mm ceramic cartridge

VARIANTS

5650T2 Single hole mixer 60 lpm - H.255 L.200
5650T3 Single hole mixer 60 lpm - H.355 L.300
