DESCRIPTION

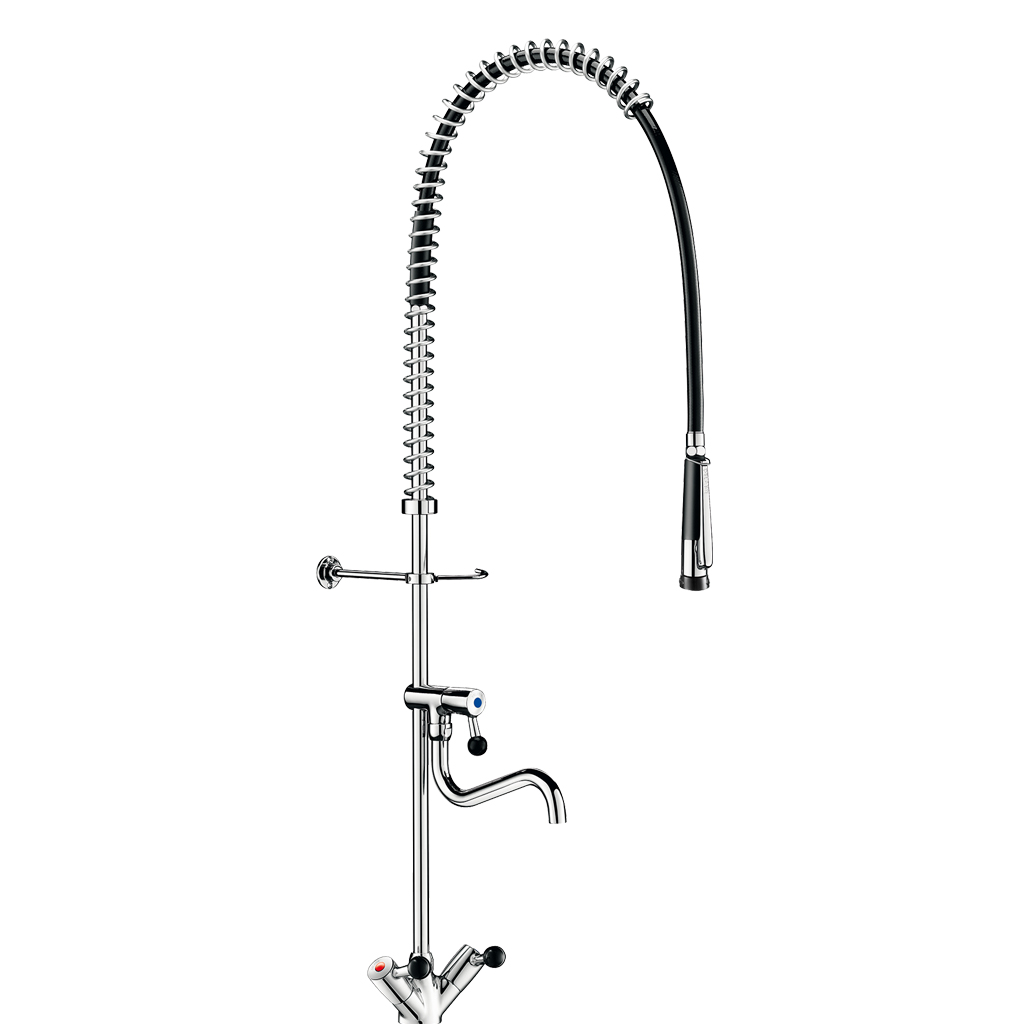

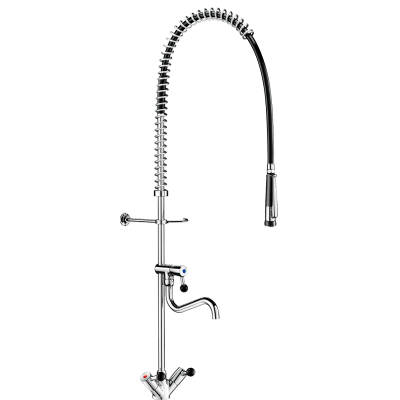

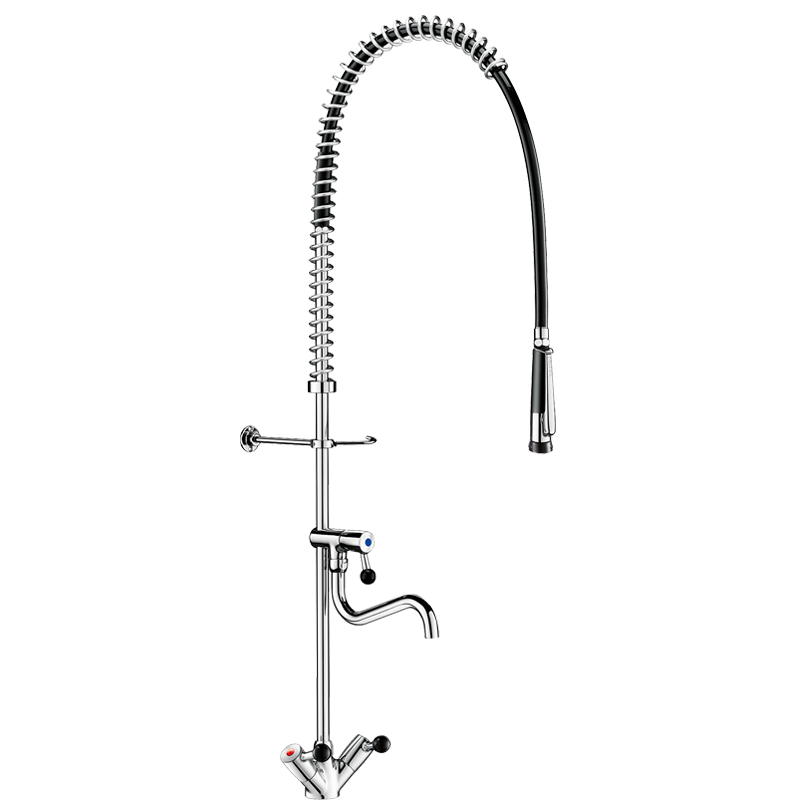

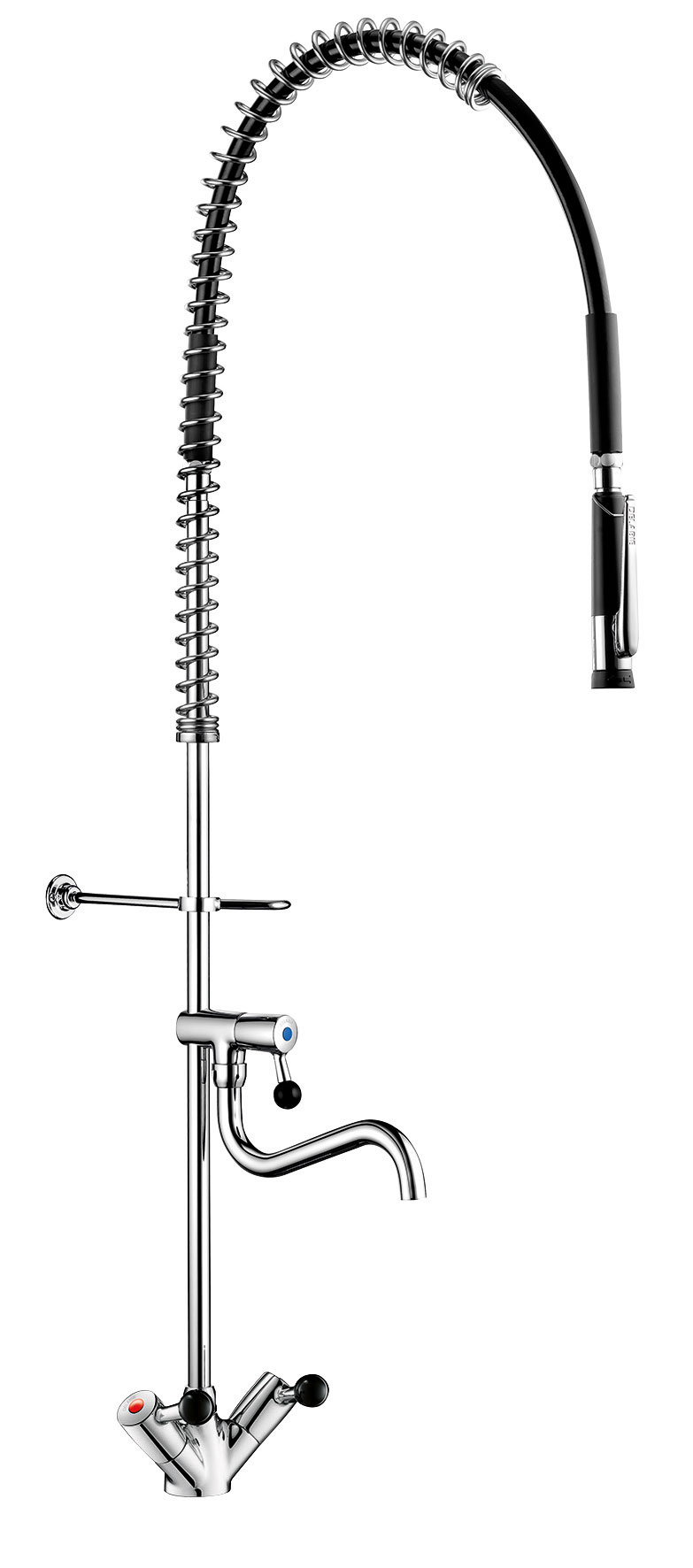

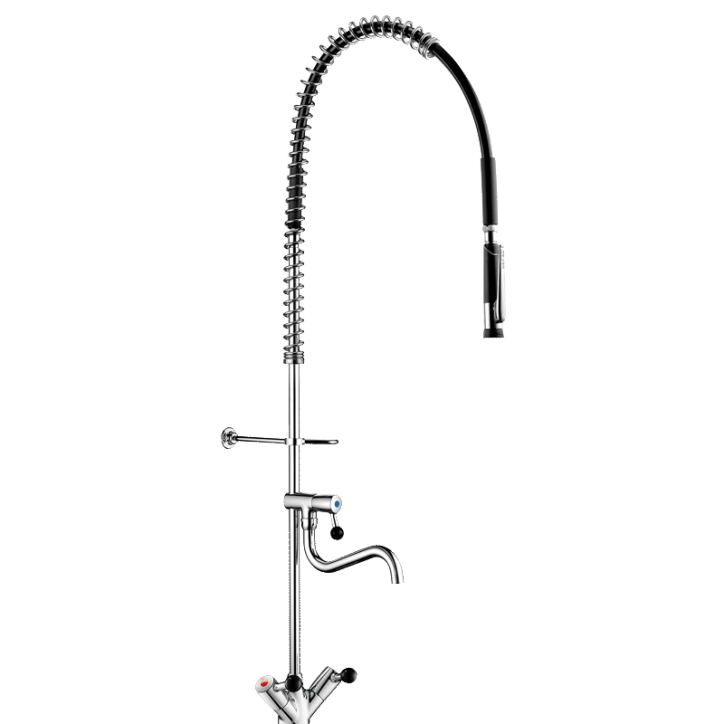

Pre-rinse set with mixer
Ref. 5632Complete pre-rinse set with bib tap suitable for intensive use in professional kitchens.
Deck-mounted single hole mixer with:
- valve heads with reinforced mechanisms and ergonomic control levers.
- F3/8" flexibles and non-return valves.
- reinforced fixing via 2 threaded rods with back-nuts.
Bib tap with swivelling, tubular spout L. 200mm.
- 20 lpm full flow rate achieved within the first 90°.
- valve head with reinforced mechanism and ergonomic control lever.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
Deck-mounted single hole mixer with:
- valve heads with reinforced mechanisms and ergonomic control levers.
- F3/8" flexibles and non-return valves.
- reinforced fixing via 2 threaded rods with back-nuts.
Bib tap with swivelling, tubular spout L. 200mm.
- 20 lpm full flow rate achieved within the first 90°.
- valve head with reinforced mechanism and ergonomic control lever.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
ADVANTAGES
Rapid fill: full flow rate within 90°
Anti-torsion rotating nut and PVC sheath
Comfort: ergonomic controls, swivelling spout
Hygiene: PVC flexible, scale-resistant spray

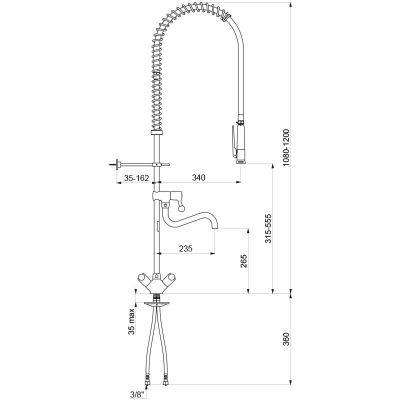

TECHNICAL CHARACTERISTICS
Pre-rinse set with mixer
Ref. 5632Connector | F3/8" |
Height | 1080 - 1200mm |
Drop height | 315 - 555mm |
Flow rate | 20 lpm with the bib tap; 9 lpm via the hand spray |
Width to the wall | 35 - 162mm |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

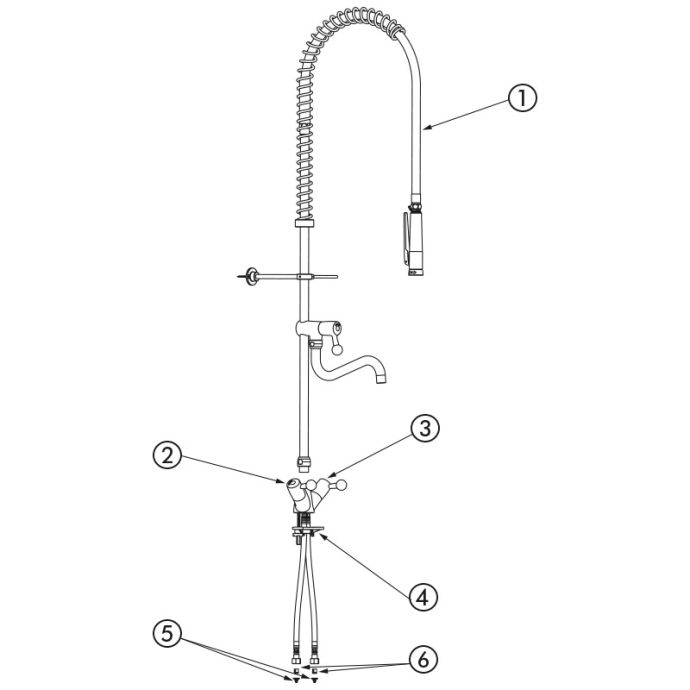

SPARE PARTS
Pre-rinse set with mixer
Ref. 56321. | 433722 |
|
Black pre-rinse set with no valve |
2. | P271AA85 |
|
Valve head 1/4 left turn |
3. | P272AA85 |
|
Valve head 1/4 right turn |
4. | 2510SES |
|
Locking kit |
5. | 256P |
|
Fixing plate |
6. | 60438.10P |
|
Conical filter |
7. | 900010 |
|
Non-return valve |
VARIANTS
5830 | Hand spray with scale-resistant nipples - Without bib tap | ||
---|---|---|---|
5832 | Hand spray with scale-resistant nipples - With bib tap & tubular spout | ||
5630 | Hand spray with scale-resistant nozzle - Without bib tap |
VARIANTS
5830 | Hand spray with scale-resistant nipples - Without bib tap | ||
---|---|---|---|
5832 | Hand spray with scale-resistant nipples - With bib tap & tubular spout | ||
5630 | Hand spray with scale-resistant nozzle - Without bib tap |
