DESCRIPTION

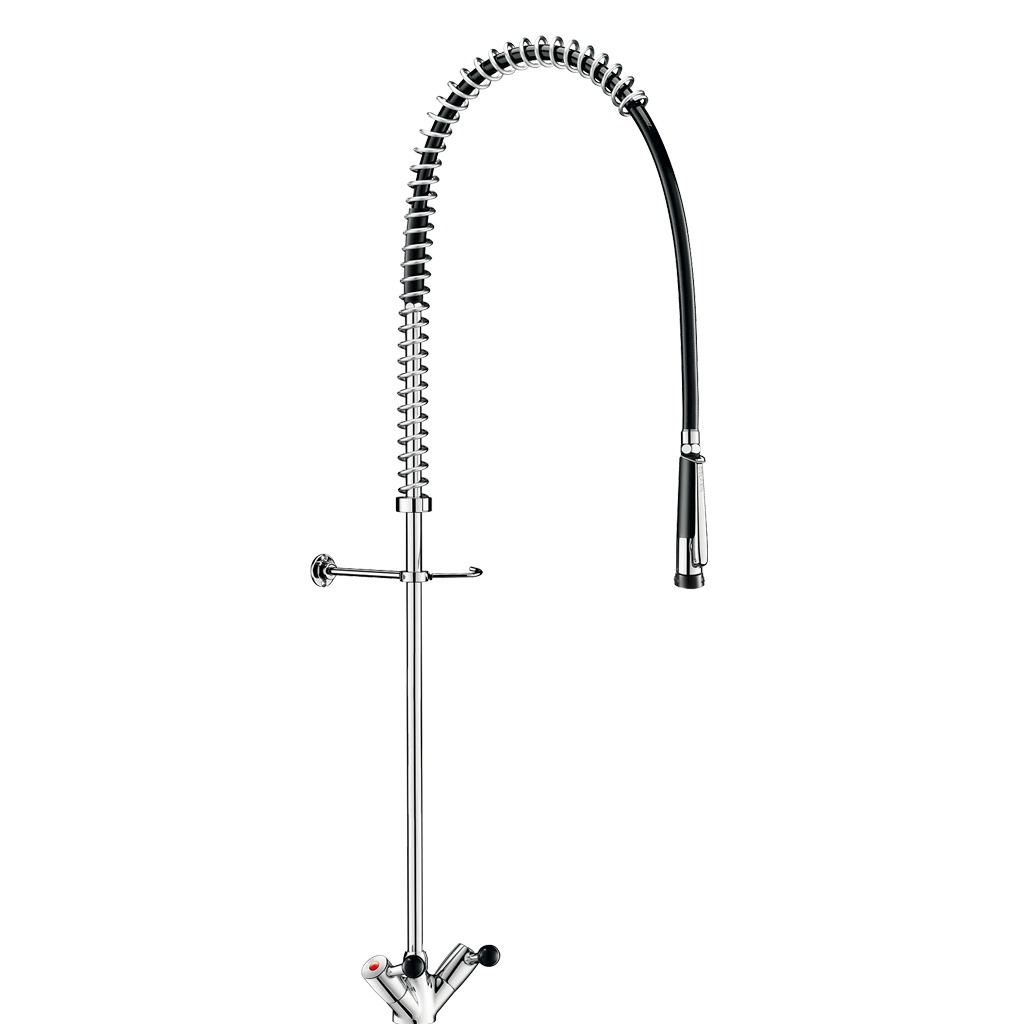

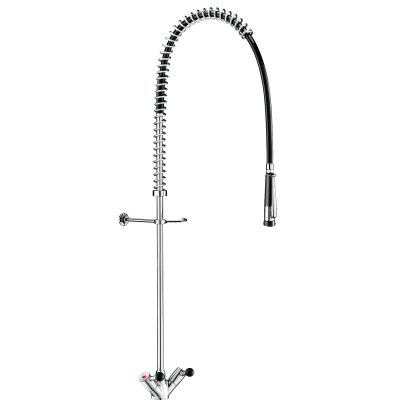

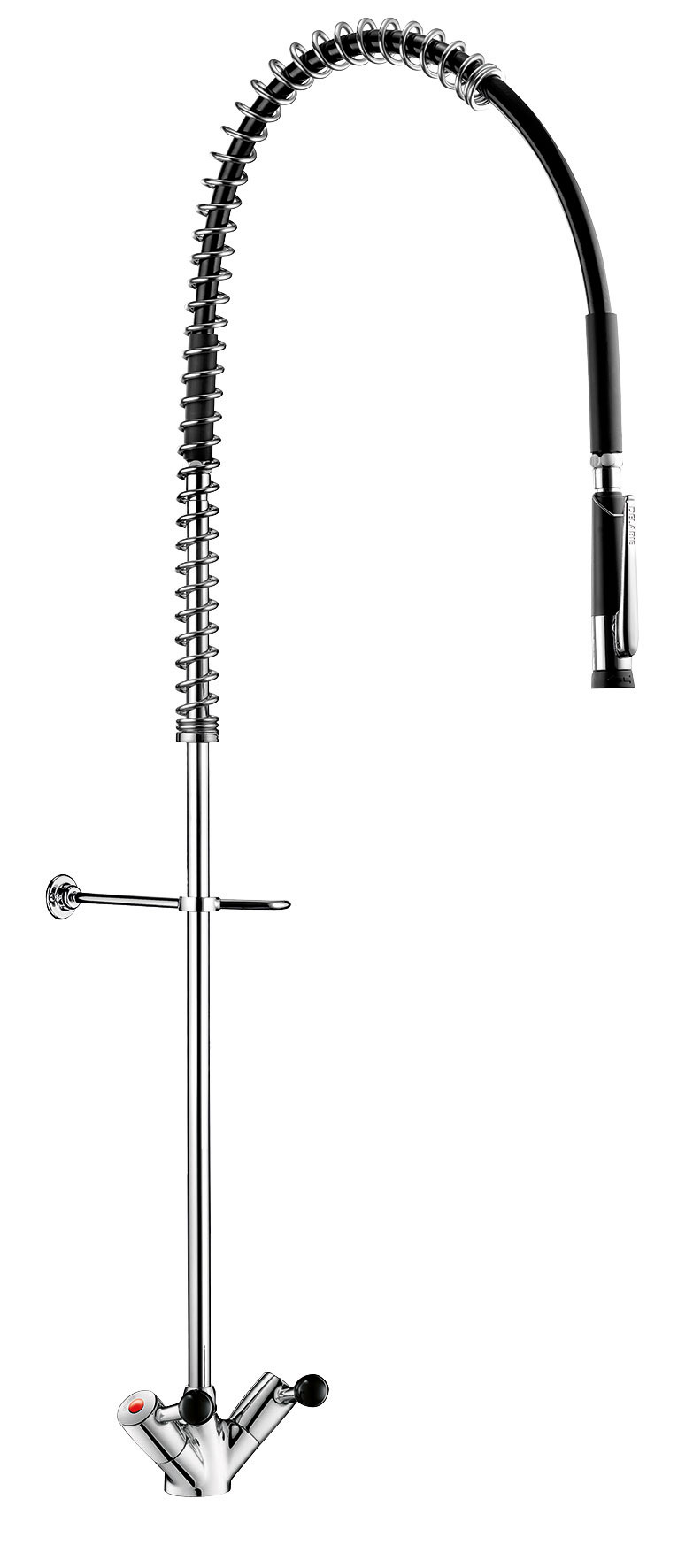

Pre-rinse set with mixer
Ref. 5630Complete pre-rinse set without bib tap suitable for intensive use in professional kitchens.
Deck-mounted single hole mixer with:
- valve heads with reinforced mechanisms and ergonomic control levers.
- F3/8" flexibles and non-return valves.
- reinforced fixing via 2 threaded rods with back-nuts.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
Deck-mounted single hole mixer with:
- valve heads with reinforced mechanisms and ergonomic control levers.
- F3/8" flexibles and non-return valves.
- reinforced fixing via 2 threaded rods with back-nuts.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
ADVANTAGES
Anti-torsion rotating nut and PVC sheath
Comfort: ergonomic controls
Hygiene: PVC flexible, scale-resistant spray
Increased resistance: high quality flexible

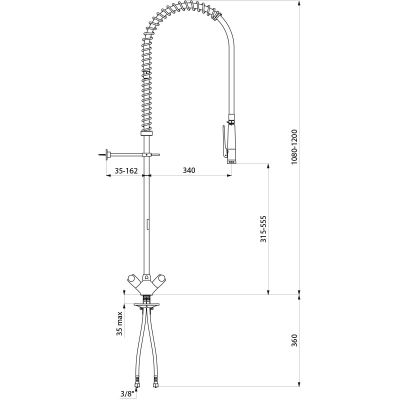

TECHNICAL CHARACTERISTICS
Pre-rinse set with mixer
Ref. 5630| Connector | F3/8" |
| Height | 1080 - 1200mm |
| Drop height | 315 - 555mm |
| Flow rate | 9 lpm via the hand spray |
| Width to the wall | 35 - 162mm |
| Finish | Chrome-plated brass |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Spare parts
SPARE PARTS
Pre-rinse set with mixer
Ref. 5630
| 1. | 433720 |
|
Black pre-rinse set with no valve |
| 2. | P271AA85 |
|
Valve head 1/4 left turn |
| 3. | P272AA85 |
|
Valve head 1/4 right turn |
| 4. | 2510SES |
|
Locking kit |
| 5. | 256P |
|
Fixing plate |
| 6. | 60438.10P |
|
Conical filter |
| 7. | 900010 |
|
Non-return valve |
VARIANTS
| 5830 | Hand spray with scale-resistant nipples - Without bib tap | ||
|---|---|---|---|

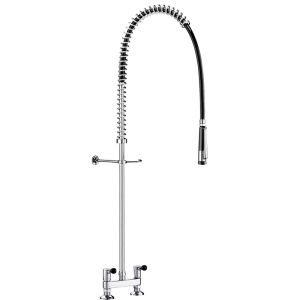

| 5832 | Hand spray with scale-resistant nipples - With bib tap & tubular spout | ||
| 5632 | Hand spray with scale-resistant nozzle - With bib tap and tubular spout |
Associated products
Food-grade flexible hose for catering
Black, L.0.95m
Ref. 433095CH
Twin hole pre-rinse set with mixer
Without bib tap
Ref. 5680
Black M1/2" hand spray
Scale-resistant nozzle
Ref. 433010
VARIANTS
| 5830 | Hand spray with scale-resistant nipples - Without bib tap | ||
|---|---|---|---|
| 5832 | Hand spray with scale-resistant nipples - With bib tap & tubular spout | ||
| 5632 | Hand spray with scale-resistant nozzle - With bib tap and tubular spout |
