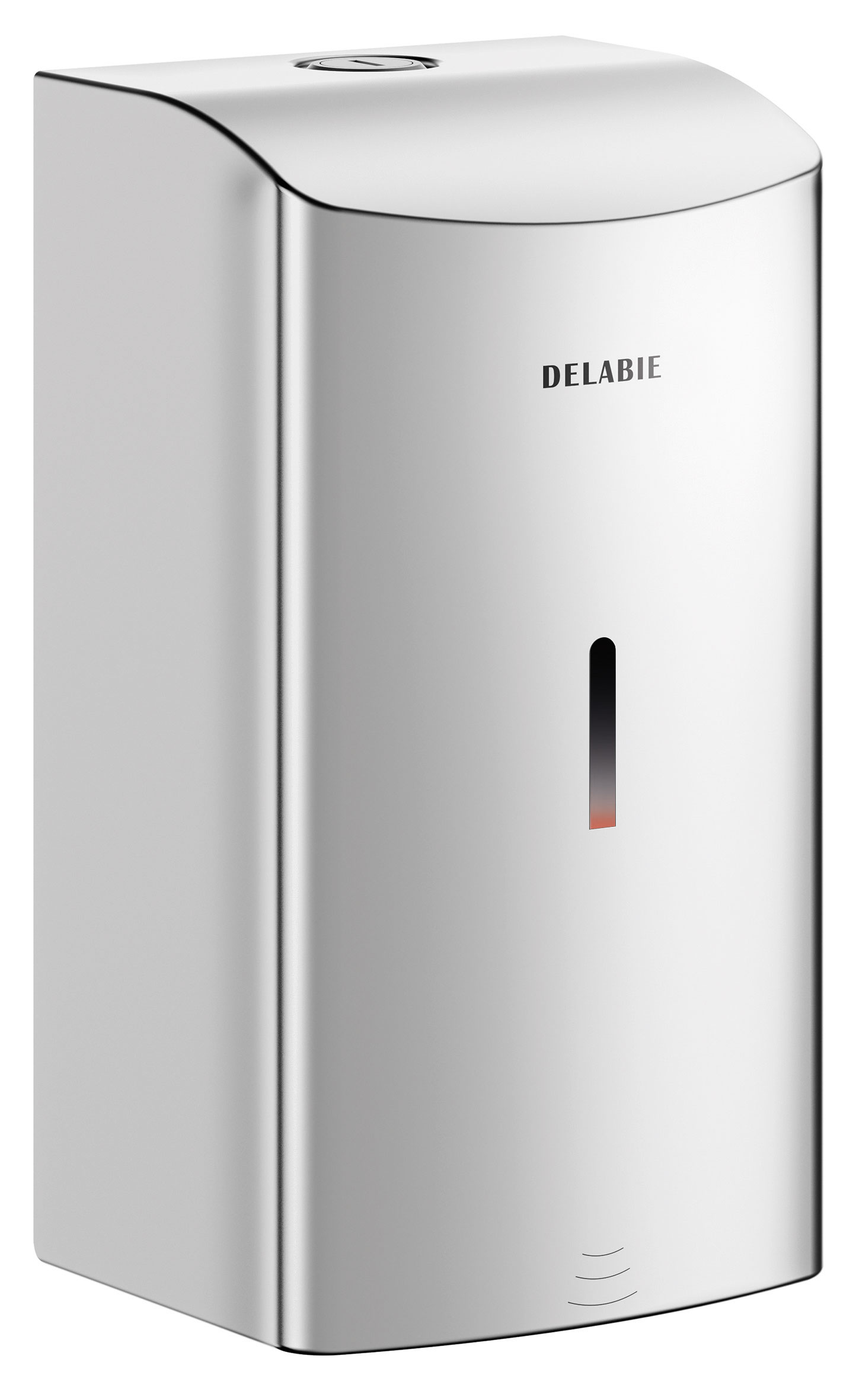

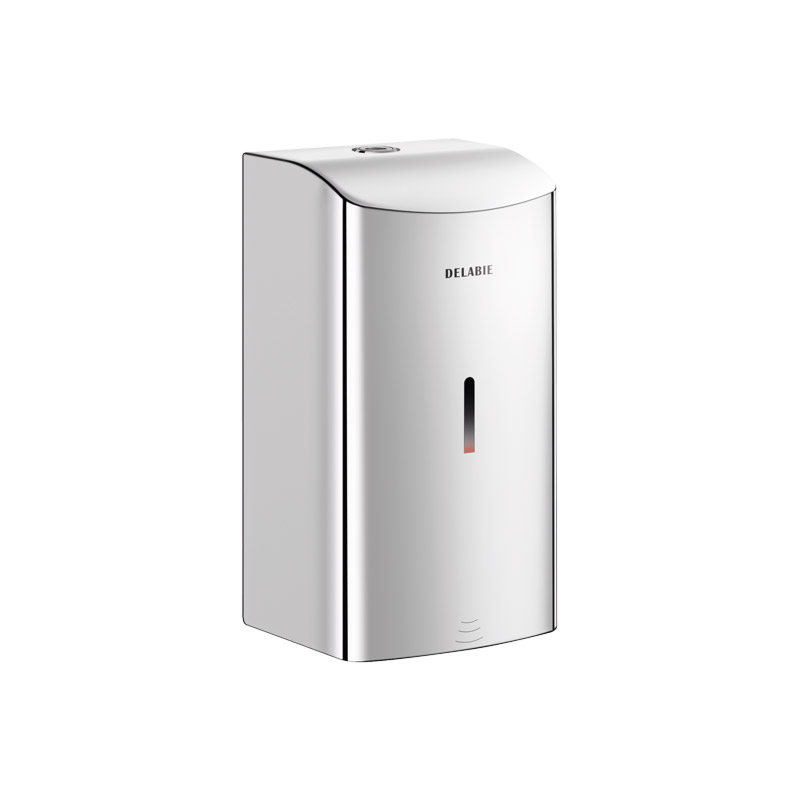

Wall-mounted electronic liquid soap dispenser, 0.5 litre
Ref. 512566P
Liquid soap or hydroalcoholic gel dispenser
Liquid soap or hydroalcoholic gel dispenser
DESCRIPTION
Wall-mounted electronic liquid soap dispenser, 0.5 litre
Ref. 512566PWall-mounted electronic soap dispenser.
Liquid soap or hydroalcoholic gel dispenser.
Vandal-resistant model with lock and standard DELABIE key.
No manual contact: hands are automatically detected by infrared cell (detection distance can be adjusted).
Bacteriostatic 304 stainless steel cover.
One-piece hinged cover for easy maintenance and improved hygiene.
No-waste pump dispenser: dispenses 0.8ml (can be adjusted up to 7 doses per activation).
Option of operation in anti-clogging mode.
Automatic soap dispenser: 6 AA -1.5V (DC9V) batteries supplied integrated in the soap dispenser body.
Low battery indicator light.
Tank with large opening: easy to fill from large containers.
Window allows soap level to be checked.
Bright polished 304 stainless steel.
Stainless steel thickness: 1mm.
Capacity: 0.5 litre.
Dimensions: 90 x 105 x 196mm.
For vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s.
Compatible with hydroalcoholic gel.
CE marked.
Wall-mounted electronic soap dispenser with 30-year warranty.
Liquid soap or hydroalcoholic gel dispenser.
Vandal-resistant model with lock and standard DELABIE key.
No manual contact: hands are automatically detected by infrared cell (detection distance can be adjusted).
Bacteriostatic 304 stainless steel cover.
One-piece hinged cover for easy maintenance and improved hygiene.
No-waste pump dispenser: dispenses 0.8ml (can be adjusted up to 7 doses per activation).
Option of operation in anti-clogging mode.
Automatic soap dispenser: 6 AA -1.5V (DC9V) batteries supplied integrated in the soap dispenser body.
Low battery indicator light.
Tank with large opening: easy to fill from large containers.
Window allows soap level to be checked.
Bright polished 304 stainless steel.
Stainless steel thickness: 1mm.
Capacity: 0.5 litre.
Dimensions: 90 x 105 x 196mm.
For vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s.
Compatible with hydroalcoholic gel.
CE marked.
Wall-mounted electronic soap dispenser with 30-year warranty.
ADVANTAGES
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Total hygiene: no manual contact
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Comfort: automatic soap dispenser
![Economie d'eau](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/5/9/2/2959-12-eng-US/economie-deau.png)
No-waste pump dispenser
![Universel](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/5/1/3/3155-12-eng-US/universel.png)
Liquid soap or hydroalcoholic gel
TECHNICAL CHARACTERISTICS
Wall-mounted electronic liquid soap dispenser, 0.5 litre
Ref. 512566PSupply | 6 AA batteries |
Technology | Electronic |
Height | 196mm |
Depth | 90mm |
Width | 105mm |
Volume | 0.5 litre tank |
Thickness | 1mm |
Finish | Bright polished 304 stainless steel |
Certificates |
![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts
SPARE PARTS
Wall-mounted electronic liquid soap dispenser, 0.5 litre
Ref. 512566P![](https://www.delabie.com/var/site/storage/images/0/0/7/2/3522700-1-fre-FR/PD_512566P.jpg)
1. | 51206BC |
|
Electronic control unit and o-ring |
2. | SER2911V |
|
Lock with key |
VARIANTS
512066P | 1litre - Bright polished 304 stainless steel | ||
---|---|---|---|
512066S | 1L electronic soap dispenser - Polished satin 304 stainless steel | ||
512066W | 1L electronic soap dispenser - White powder-coated 304 stainless steel | ||
512566S | 0.5L electronic soap dispenser - Polished satin 304 stainless steel | ||
512566W | 0.5L electronic soap dispenser - White powder-coated 304 stainless steel |
VARIANTS
512066P | 1litre - Bright polished 304 stainless steel | ||
---|---|---|---|
512066S | 1L electronic soap dispenser - Polished satin 304 stainless steel | ||
512066W | 1L electronic soap dispenser - White powder-coated 304 stainless steel | ||
512566S | 0.5L electronic soap dispenser - Polished satin 304 stainless steel | ||
512566W | 0.5L electronic soap dispenser - White powder-coated 304 stainless steel |
