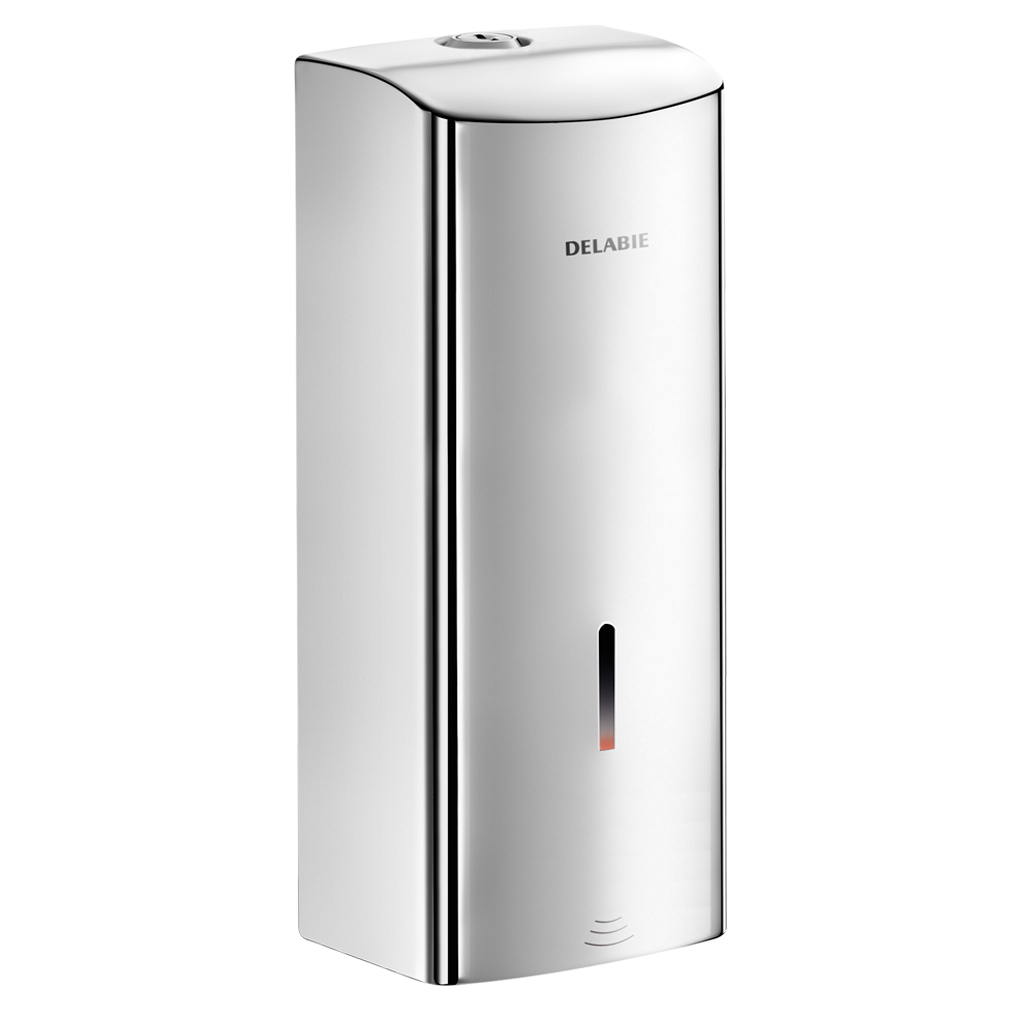

Wall-mounted electronic liquid soap dispenser, 1 litre

Ref. 512066P
Liquid soap or hydroalcoholic gel dispenser
Wall-mounted electronic liquid soap dispenser, 1 litre

Presentation

DESCRIPTION

Wall-mounted electronic liquid soap dispenser, 1 litre

Ref. 512066P
Wall-mounted electronic soap dispenser.
Liquid soap or hydroalcoholic gel dispenser.
Vandal-resistant model with lock and standard DELABIE key.
No manual contact: hands are automatically detected by infrared cell (detection distance can be adjusted).
Bacteriostatic 304 stainless steel cover.
One-piece hinged cover for easy maintenance and better hygiene.
No-waste pump dispenser: dispenses 0.8ml (can be adjusted up to 7 doses per activation).
Option of operation in anti-clogging mode.
Automatic soap dispenser: 6 AA -1.5V (DC9V) batteries supplied integrated in the soap dispenser body.
Low battery indicator light.
Tank with large opening: easy to fill from large containers.
Window allows soap level to be checked.
Bright polished 304 stainless steel.
Stainless steel thickness: 1mm.
Capacity: 1 litre.
Dimensions: 90 x 105 x 256mm.
For vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s.
Compatible with hydroalcoholic gel.
CE marked.
Wall-mounted electronic soap dispenser with 30-year warranty.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

Total hygiene: no manual contact

Confort - Ergonomie - Déclenchement souple

Comfort: automatic soap dispenser

Economie d'eau

No waste pump dispenser

Universel

Liquid soap or hydroalcoholic gel

Characteristics

TECHNICAL CHARACTERISTICS

Wall-mounted electronic liquid soap dispenser, 1 litre

Ref. 512066P
Supply 6 AA batteries
Technology Infrared sensor
Height 256mm
Depth 90mm
Width 105mm
Volume Tank: 1 litre
Thickness 1mm
Finish Bright polished 304 stainless steel
Certificates Logo CE Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Wall-mounted electronic liquid soap dispenser, 1 litre

Ref. 512066P

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Wall-mounted electronic liquid soap dispenser, 1 litre

Ref. 512066P
1. 51206BC
Electronic control unit and o-ring
2. SER2911V
Lock with key

VARIANTS

512566P 0.5L electronic soap dispenser - Bright polished 304 stainless steel
512066S 1L electronic soap dispenser - Polished satin 304 stainless steel
512566S 0.5L electronic soap dispenser - Polished satin 304 stainless steel
512066W 1L electronic soap dispenser - White powder-coated 304 stainless steel
512566W 0.5L electronic soap dispenser - White powder-coated 304 stainless steel
