TEMPOMATIC MIX PRO electronic mixer

Ref. 495253
Mains supply
TEMPOMATIC MIX PRO electronic mixer

Presentation

DESCRIPTION

TEMPOMATIC MIX PRO electronic mixer

Ref. 495253

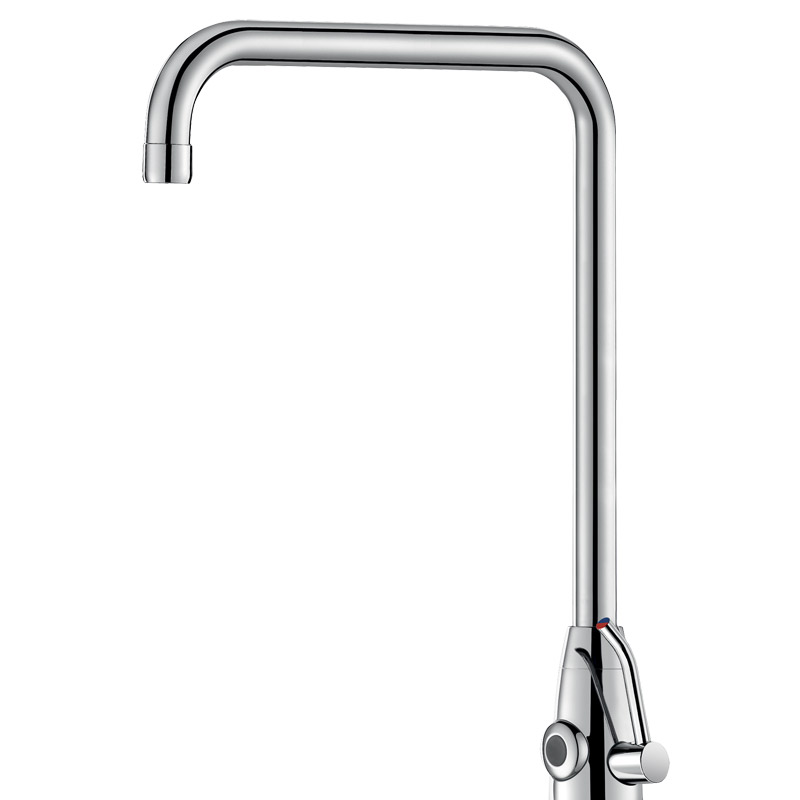

Deck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 4 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Shock-resistant infrared presence detection sensor.
Chrome-plated solid brass body with fixing reinforced by 2 stainless steel rods.
PEX flexibles with filters and solenoid valves M⅜".
360° swivelling spout with smooth interior (reduces bacterial development).
Removable spout for cleaning.
Anti-blocking security.
Side temperature control with ergonomic long lever and adjustable maximum temperature limiter.
Solenoid valves upstream of the mixing chamber.
Suitable for people with reduced mobility.
30-year warranty.

Two shut-off options on 230/12V models:
Standard mode: timed flow with automatic shut-off.
ON/OFF mode: user shuts off flow voluntarily or automatic shut-off after 30 minutes of flow.
Thermal shocks are possible.

ADVANTAGES

Economie d'eau

Exceptional water savings: 85%

Sans contact manuel

Hygiene: no manual contact

Confort - Ergonomie - Déclenchement souple

Multiple modes of operation

Secteur

Independent IP65 electronic control unit

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMATIC MIX PRO electronic mixer

Ref. 495253
Supply 230/12V mains supply
Connector M3/8"
Technology Electronic

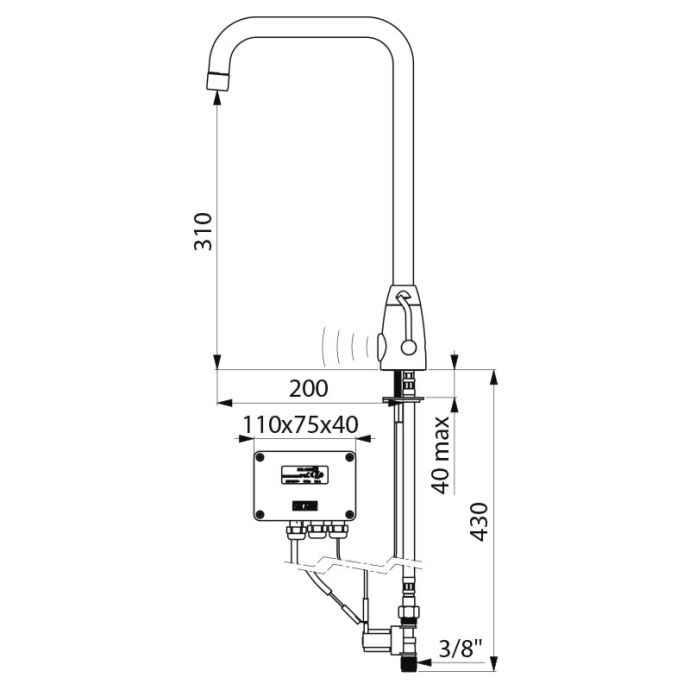

Drop height 310mm
Spout length 200mm
Flow rate 4 lpm
Certificates ACS Logo PZH Logo NF Logo CE SINTEF
Warranty 30-Year

Downloads

DOWNLOADS

Mitigeur de lavabo automatique TEMPOMATIC MIX PRO

Ref. 495253

To download one or several documents linked to this product, please select the type of file you require :
