TEMPOMATIC MIX 2 electronic mixer

Ref. 494000
Electronic mains supply
TEMPOMATIC MIX 2 electronic mixer

Presentation

DESCRIPTION

TEMPOMATIC MIX 2 electronic mixer

Ref. 494000
Deck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 4 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Shock-resistant infrared presence detection sensor.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valves M3/8".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Solenoid valves are upsteream of the mixing chamber.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 85%

Sans contact manuel

Hygiene: no manual contact

Maintenance aisée - Installation aisée

LED diagnostic aid

Secteur

Independent IP65 electronic unit

Characteristics

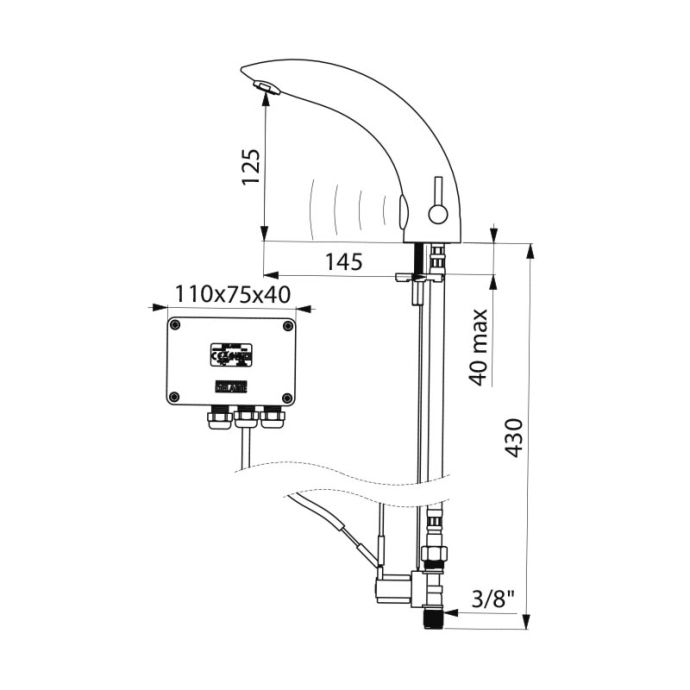

TECHNICAL CHARACTERISTICS

TEMPOMATIC MIX 2 electronic mixer

Ref. 494000
Supply 230/12V mains supply
Connector M3/8"
Technology Electronic
Drop height 125mm
Spout length 145mm
Flow rate 4 lpm
Certificates ACS Logo CE Logo PZH Logo NF SINTEF
Warranty 30-Year

Downloads

DOWNLOADS

Mitigeur de lavabo automatique TEMPOMATIC MIX 2

Ref. 494000

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

494006 Battery-operated - Standard lever - M3/8"

VARIANTS

494006 Battery-operated - Standard lever - M3/8"
