DESCRIPTION

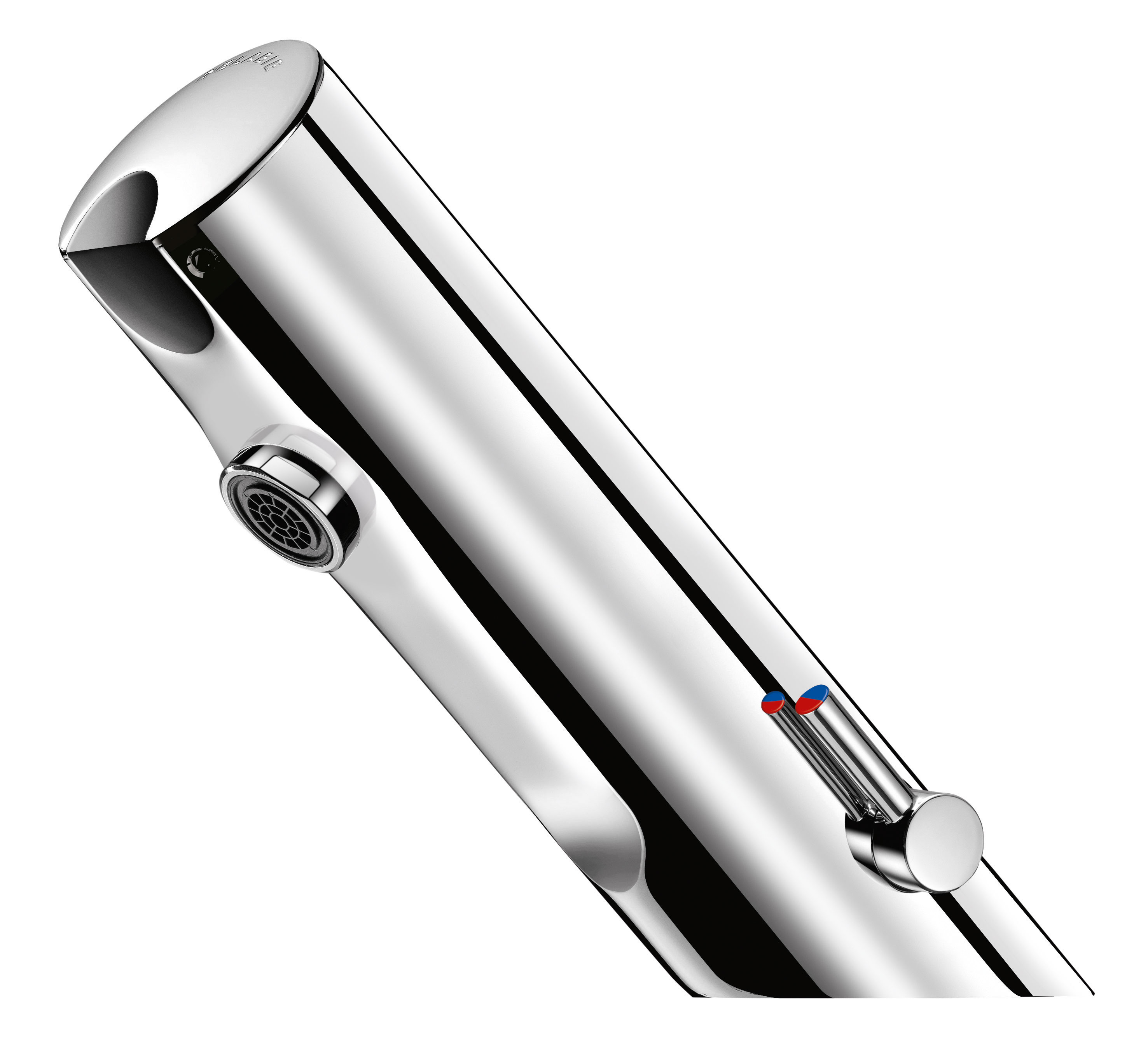

TEMPOMATIC MIX 4 electronic mixer
Ref. 490100Deck-mounted electronic basin mixer:
230/6V recessed mains supply.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24hr after last use).
Sensor at the end of the spout optimises presence detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control with standard lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
230/6V recessed mains supply.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24hr after last use).
Sensor at the end of the spout optimises presence detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control with standard lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Recessed mains supply
Integrated solenoid valve
TECHNICAL CHARACTERISTICS
TEMPOMATIC MIX 4 electronic mixer
Ref. 490100Supply | 230/6V mains supply (recessed) |
Connector | F3/8" |
Technology | Electronic |
Drop height | 70mm |
Spout length | 105mm |
Flow rate | 3 lpm |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
TEMPOMATIC MIX 4 electronic mixer
Ref. 4901001. | 490452T |
|
Electronic control unit |
2. | 479650 |
|
Solenoid valve |
3. | 922016.2P |
|
Flow straightener |
4. | 742MSP |
|
Mixing key |
5. | 490240 |
|
Power supply |
6. | 900010 |
|
Non-return valve |
7. | 60440.10P |
|
Filter with mesh screen |
VARIANTS
490000 | Mains supply, recessed unit - standard lever - Stopcocks | ||
---|---|---|---|
49000015 | Mains supply, recessed unit - standard lever Stopcocks - Ø15mm | ||
490000LH | Mains supply, recessed unit - long lever - With stopcocks | ||
490100LH | Mains supply, recessed unit - long lever -Without stopcocks | ||
490001 | Mains supply, plug - standard lever - With stopcocks | ||
49000115 | Mains supply, UK plug - standard lever - With stopcocks- Ø15mm | ||
490101 | Mains supply, plug - standard lever - Without stopcocks | ||
490006 | Battery operated - standard lever - With stopcocks | ||
49000615 | Battery operated - standard lever - With stopcocks - Ø15mm | ||
490006LH | Battery operated - long lever - With stopcocks | ||
490106 | Battery operated - standard lever - Without stopcocks | ||
490106LH | Battery operated - long lever - Without stopcocks |
VARIANTS
490000 | Mains supply, recessed unit - standard lever - Stopcocks | ||
---|---|---|---|
49000015 | Mains supply, recessed unit - standard lever Stopcocks - Ø15mm | ||
490000LH | Mains supply, recessed unit - long lever - With stopcocks | ||
490100LH | Mains supply, recessed unit - long lever -Without stopcocks | ||
490001 | Mains supply, plug - standard lever - With stopcocks | ||
49000115 | Mains supply, UK plug - standard lever - With stopcocks- Ø15mm | ||
490101 | Mains supply, plug - standard lever - Without stopcocks | ||
490006 | Battery operated - standard lever - With stopcocks | ||
49000615 | Battery operated - standard lever - With stopcocks - Ø15mm | ||
490006LH | Battery operated - long lever - With stopcocks | ||
490106 | Battery operated - standard lever - Without stopcocks | ||
490106LH | Battery operated - long lever - Without stopcocks |
