DESCRIPTION

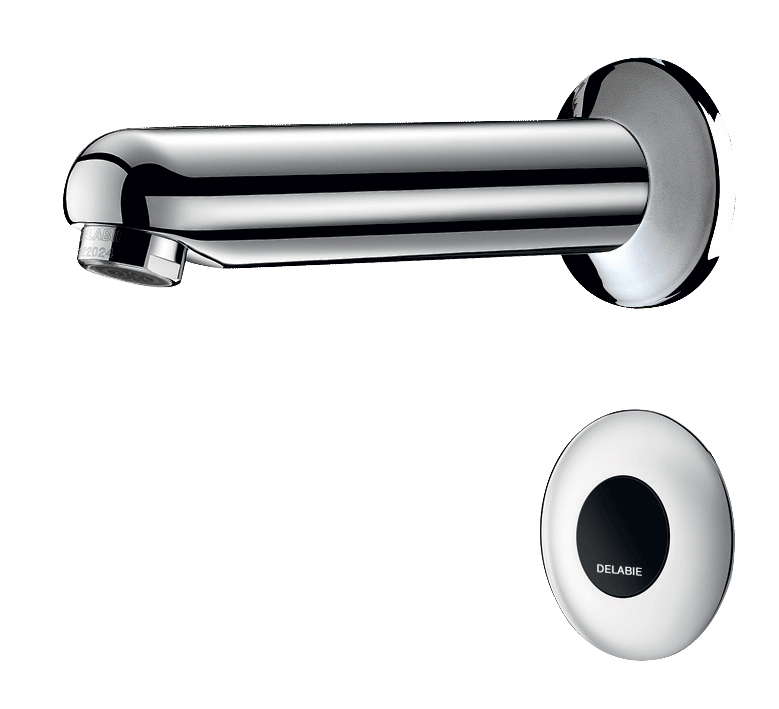

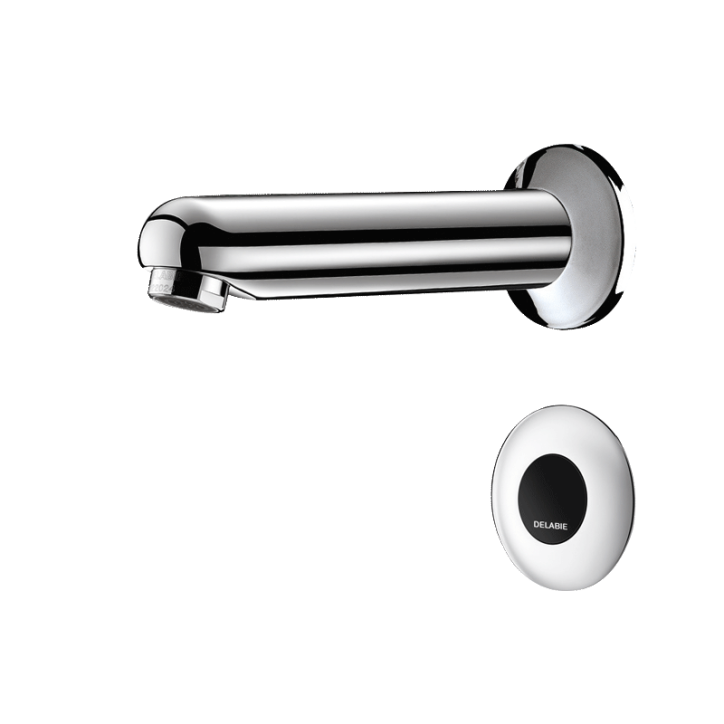

TEMPOMATIC Electronic tap
Ref. 441157Cross wall electronic basin tap:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Chrome-plated fixed spout L. 170mm with anti-rotating pin and back-nut.
Plate is flush to wall.
Shockproof infrared presence detection sensor for wall ≤ 155mm
Anti-blocking security.
For walls ≤ 155mm.
Solenoid valve with integrated filter.
Threaded rods can be cut-to-size.
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Chrome-plated fixed spout L. 170mm with anti-rotating pin and back-nut.
Plate is flush to wall.
Shockproof infrared presence detection sensor for wall ≤ 155mm
Anti-blocking security.
For walls ≤ 155mm.
Solenoid valve with integrated filter.
Threaded rods can be cut-to-size.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Total hygiene: no manual contact
90% water savings
Independent IP65 electronic control unit
Anti-bacterial proliferation duty flush

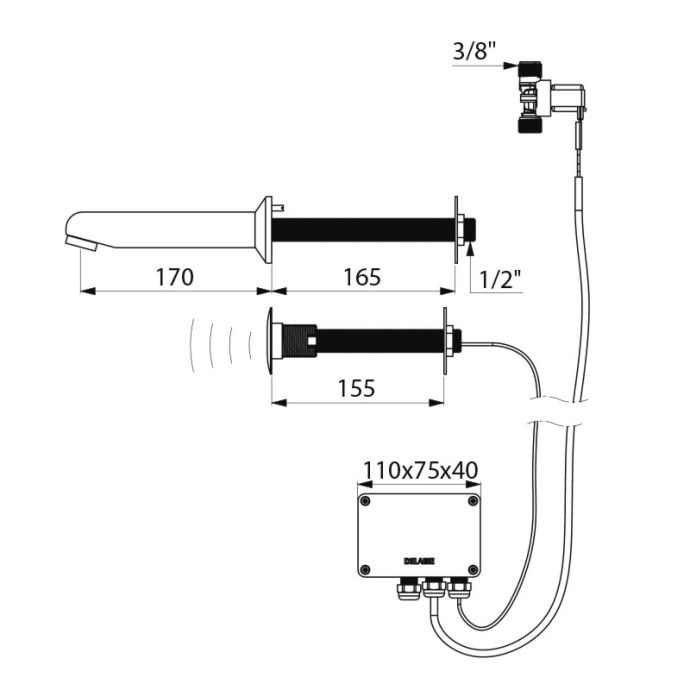

TECHNICAL CHARACTERISTICS
TEMPOMATIC Electronic tap
Ref. 441157Supply | 230/12V mains supply |
Connector | M3/8" |
Technology | Electronic |
Depth | 165mm |
Spout length | 170mm |
Flow rate | 3 lpm |
Certificates | |
Warranty | |
Repairability |
Spare parts

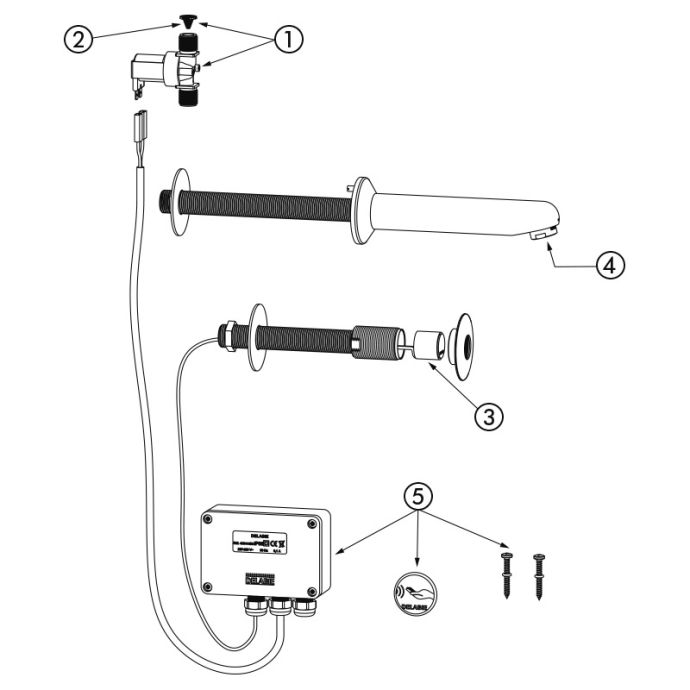

SPARE PARTS
TEMPOMATIC Electronic tap
Ref. 4411571. | 495612 |
|
Solenoid valve |
2. | 60438.10P |
|
Conical filter |
3. | 495149 |
|
Detector |
4. | 922024.2P |
|
ECO flow straightener |
5. | 495444BC |
|
Electronic control unit |
