DESCRIPTION

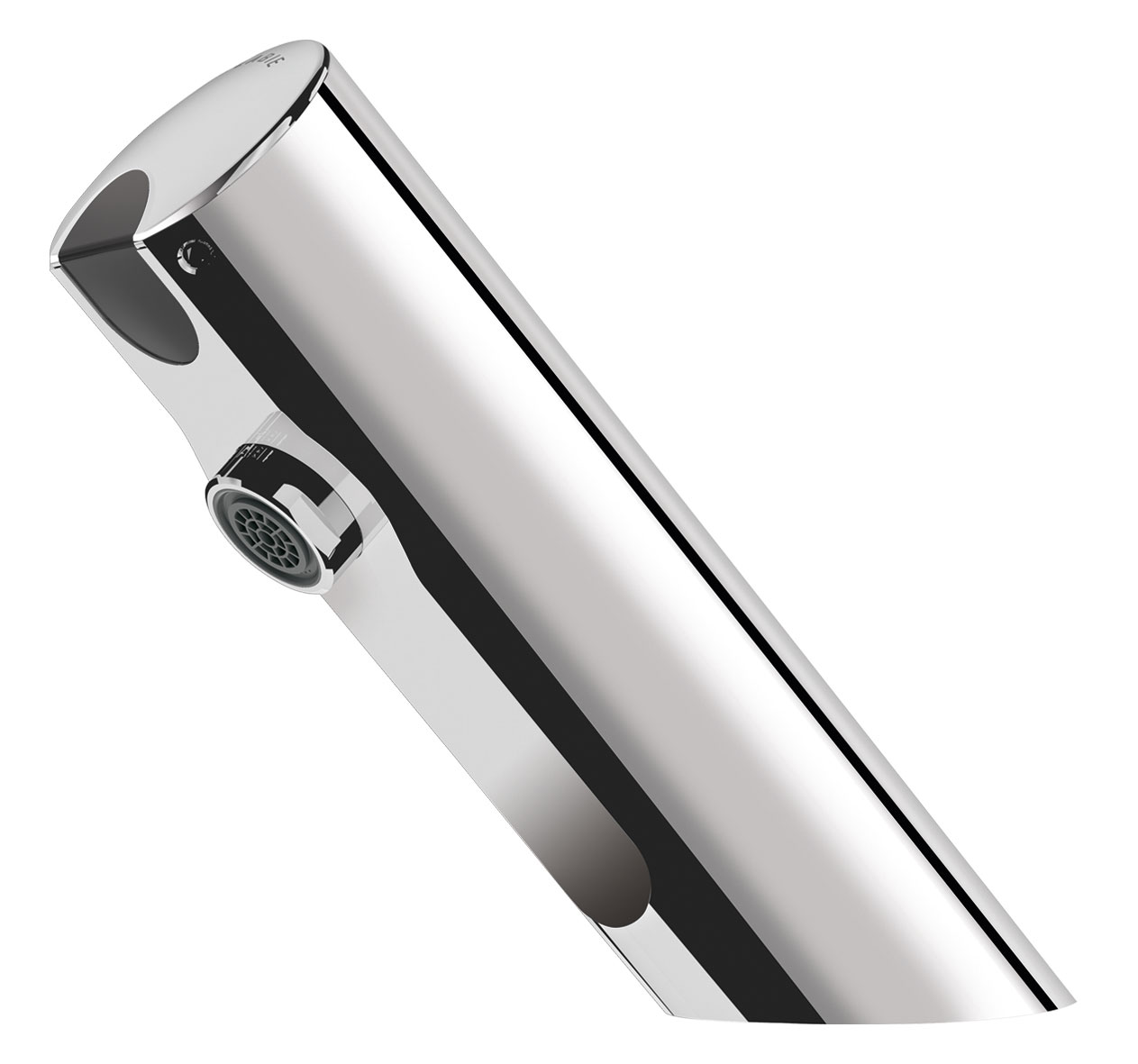

TEMPOMATIC 4 electronic tap
Ref. 440000Deck-mounted electronic basin tap:
230/6V recessed mains supply.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the tap.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexible F3/8” with stopcock and filter.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Suitable for people with reduced mobility.
30-year warranty.
230/6V recessed mains supply.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the tap.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexible F3/8” with stopcock and filter.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Recessed mains supply
Anti-bacterial proliferation duty flush
TECHNICAL CHARACTERISTICS
TEMPOMATIC 4 electronic tap
Ref. 440000Supply | 230/6V mains supply (recessed) |
Connector | F3/8" |
Technology | Electronic |
Drop height | 70mm |
Spout length | 105mm |
Flow rate | 3 lpm |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
TEMPOMATIC 4 electronic tap
Ref. 4400001. | 490452T |
|
Electronic control unit |
2. | 479650 |
|
Solenoid valve |
3. | 922016.2P |
|
Flow straightener |
4. | 490240 |
|
Power supply |
5. | 60440.10P |
|
Filter with mesh screen |
6. | 825212 |
|
In-line STOP union |
VARIANTS
44000015 | Mains supply, recessed unit - Stopcocks - Ø15mm compression fittings | ||
---|---|---|---|
440100 | Mains supply, recessed unit - Without stopcocks | ||
440101 | Mains supply, plug - Without stopcocks | ||
440006 | Battery operated - With stopcocks | ||
44000615 | Battery operated - With stopcocks - Ø15mm compression fittings | ||
440106 | Battery operated - Without stopcocks |
VARIANTS
44000015 | Mains supply, recessed unit - Stopcocks - Ø15mm compression fittings | ||
---|---|---|---|
440100 | Mains supply, recessed unit - Without stopcocks | ||
440101 | Mains supply, plug - Without stopcocks | ||
440006 | Battery operated - With stopcocks | ||
44000615 | Battery operated - With stopcocks - Ø15mm compression fittings | ||
440106 | Battery operated - Without stopcocks |
