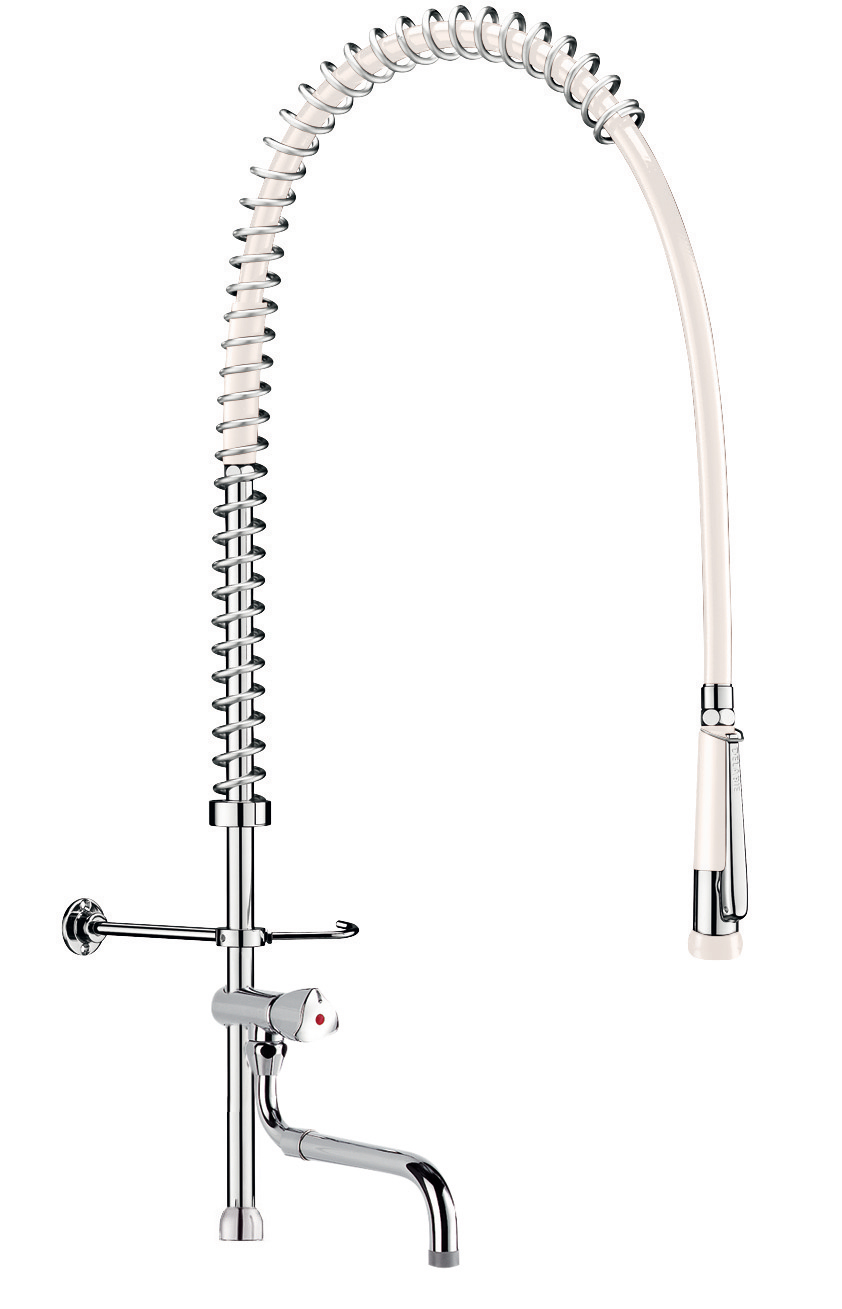

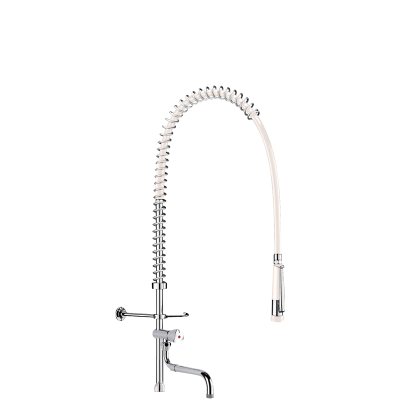

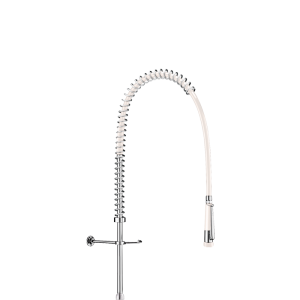

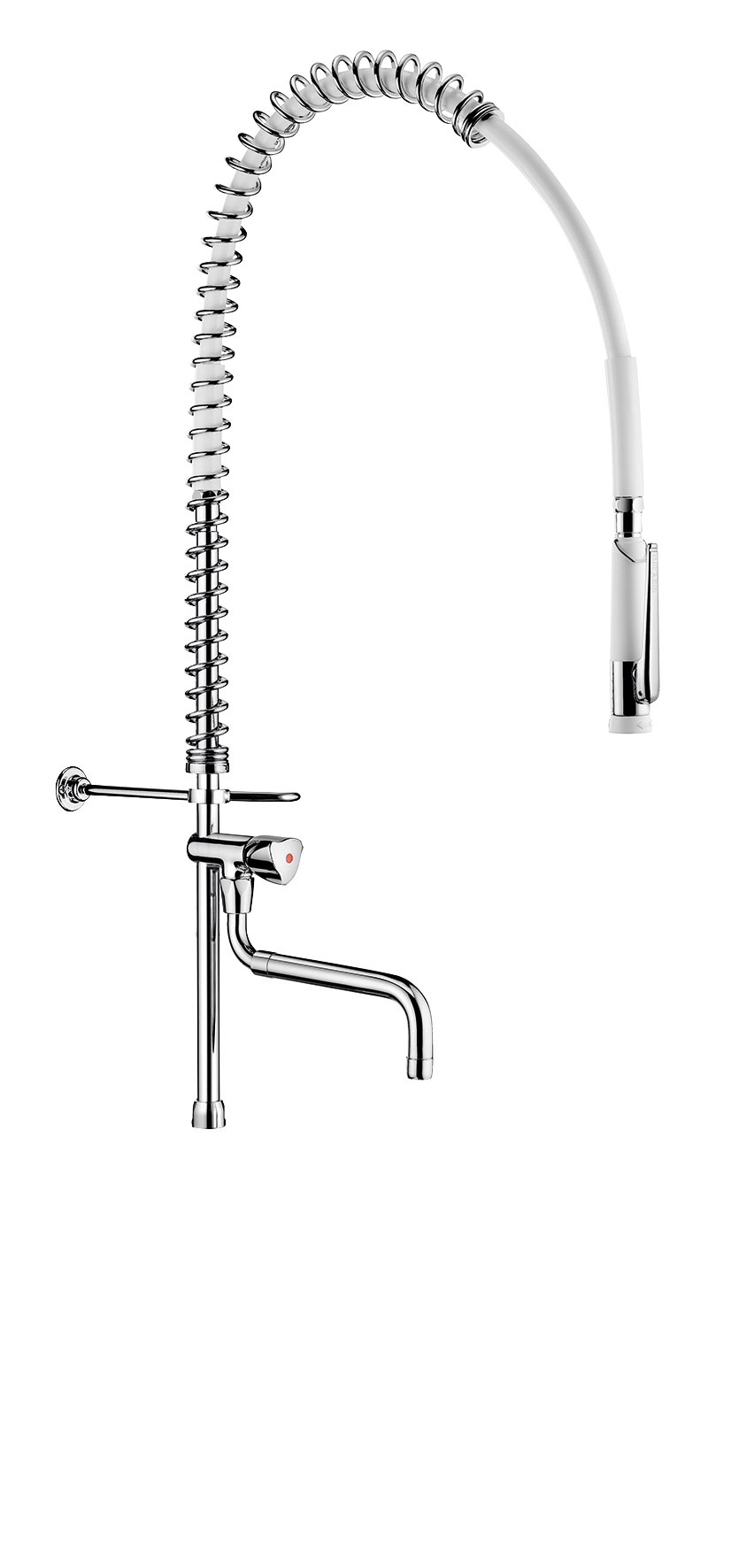

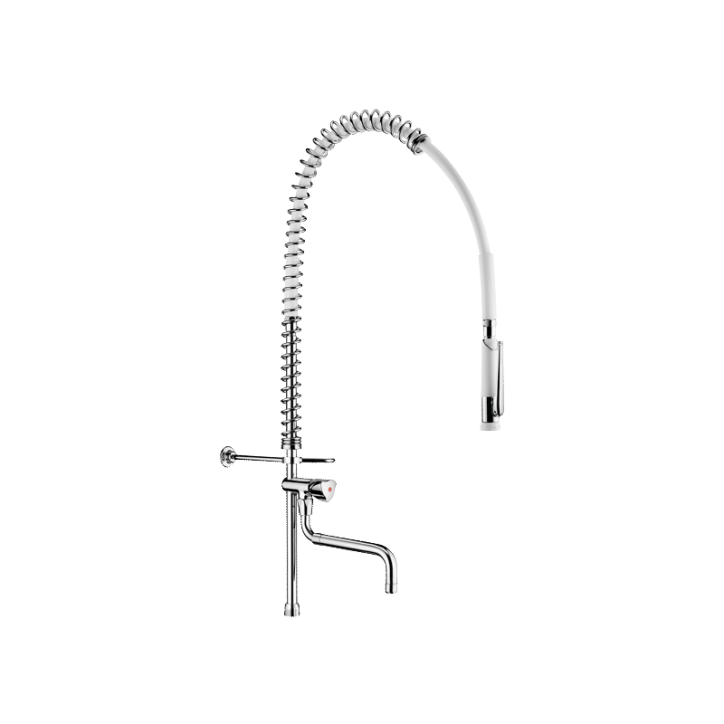

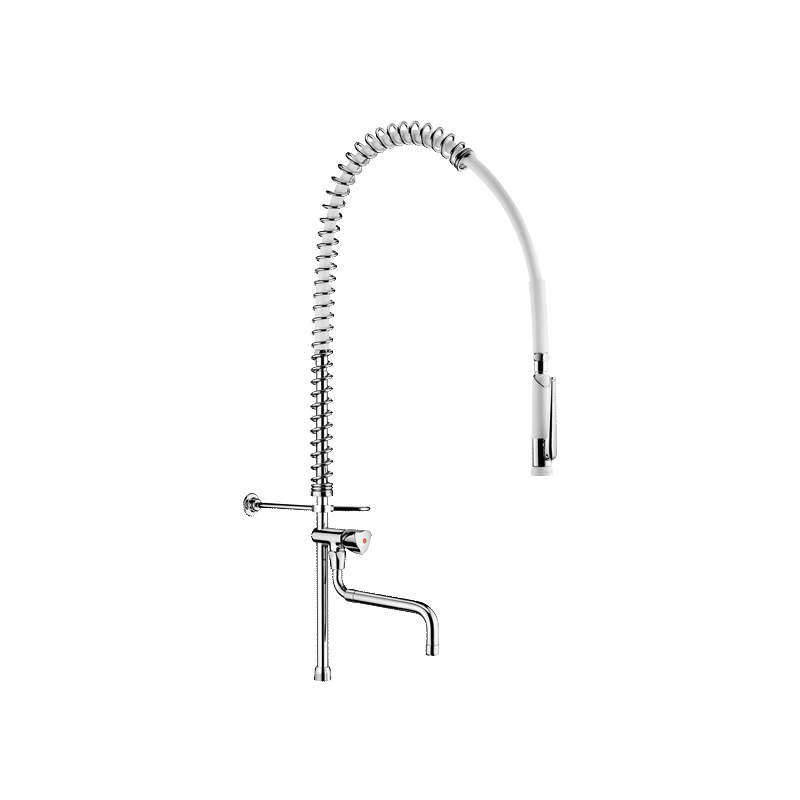

White pre-rinse set with no valve

Ref. 433422
With bib tap and swivelling tubular spout
See variants See variants
White pre-rinse set with no valve

Presentation

DESCRIPTION

White pre-rinse set with no valve

Ref. 433422
White pre-rinse set without valve suitable for intensive use in professional kitchens.
Bib tap with telescopic, swivelling spout L. 200 - 290mm and valve head with control knob.
White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
Short brass column 3/4" for wall-mounted water control valve.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
This pre-rinse set, with no water control valve, comprises spare parts for repairing pre-rinse sets.

ADVANTAGES

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic control, telescopic spout

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: PVC flexible, scale-resistant spray

Anti-vandalisme

Increased resistance: high quality flexible

Characteristics

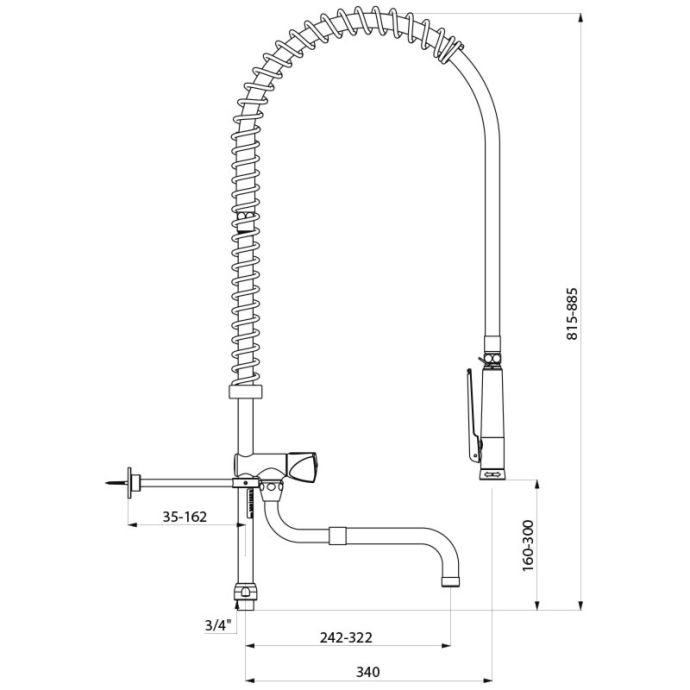

TECHNICAL CHARACTERISTICS

White pre-rinse set with no valve

Ref. 433422
Connector 3/4"
Height 815 - 885mm
Drop height 160 - 300mm
Flow rate depends on the valve
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates ACS Logo PZH
Warranty 30-Year
Repairability
White pre-rinse set with no valve
Ref. 433422

Downloads

DOWNLOADS

White pre-rinse set with no valve

Ref. 433422

To download one or several documents linked to this product, please select the type of file you require :

Compatible products

COMPATIBLE PRODUCTS

White pre-rinse set with no valve

Ref. 433422
G6432
Wall-mounted pre-rinse set with mixer and telescopic spout
Wall-mounted pre-rinse set with mixer and telescopic spout

Spare parts

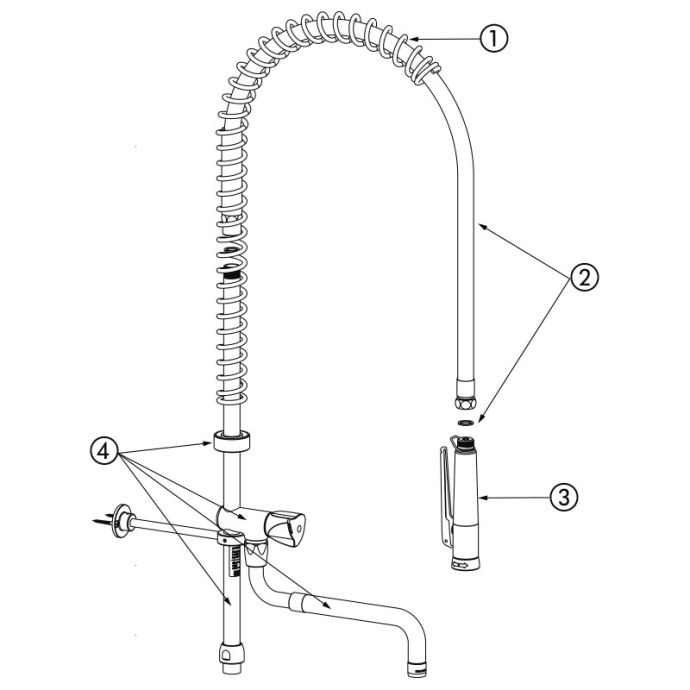

SPARE PARTS

White pre-rinse set with no valve

Ref. 433422
1. 433038
Stainless steel spring guide
2. 433095
Food-grade flexible hose for catering
3. 433000
White M1/2" hand spray
4. 433402
Pre-rinse short column
