DESCRIPTION

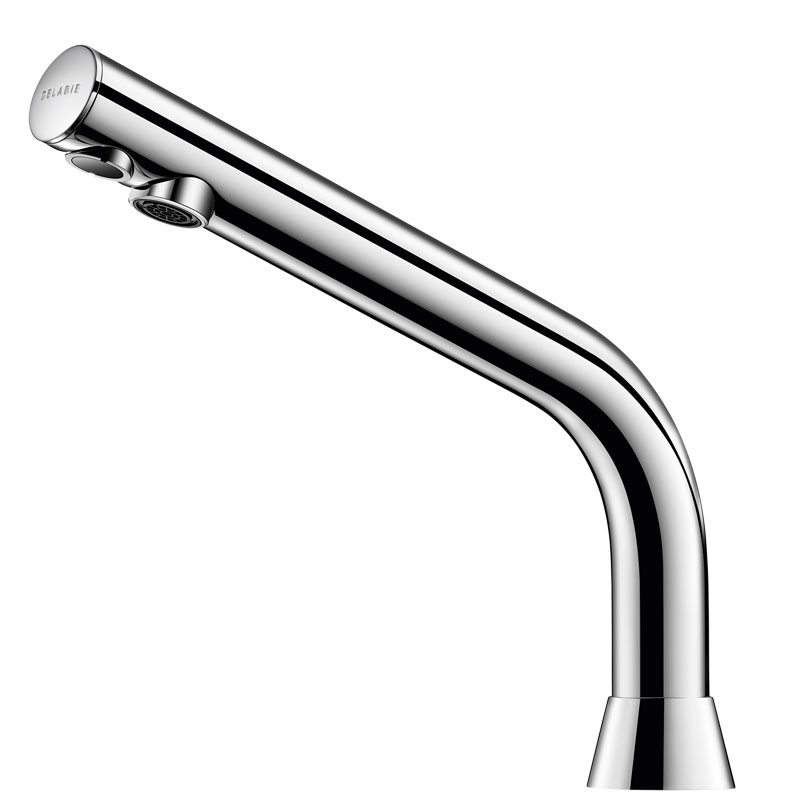

BINOPTIC electronic tap
Ref. 388015Deck-mounted electronic basin tap:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexible with filter and solenoid valve M3/8".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low volume of water (reduces bacterial development).
Drop height: 170mm for semi-recessed washbasins.
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexible with filter and solenoid valve M3/8".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low volume of water (reduces bacterial development).
Drop height: 170mm for semi-recessed washbasins.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
![Economie d'eau](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/5/9/2/2959-12-eng-US/economie-deau.png)
90% water savings
![Sans contact manuel](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/9/0/3/3099-12-eng-US/sans-contact.png)
Hygiene: no manual contact
![Maintenance aisée - Installation aisée](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
LED diagnostic aids
![Design](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/4/9/2/2945-12-eng-US/design.png)
Sleek design

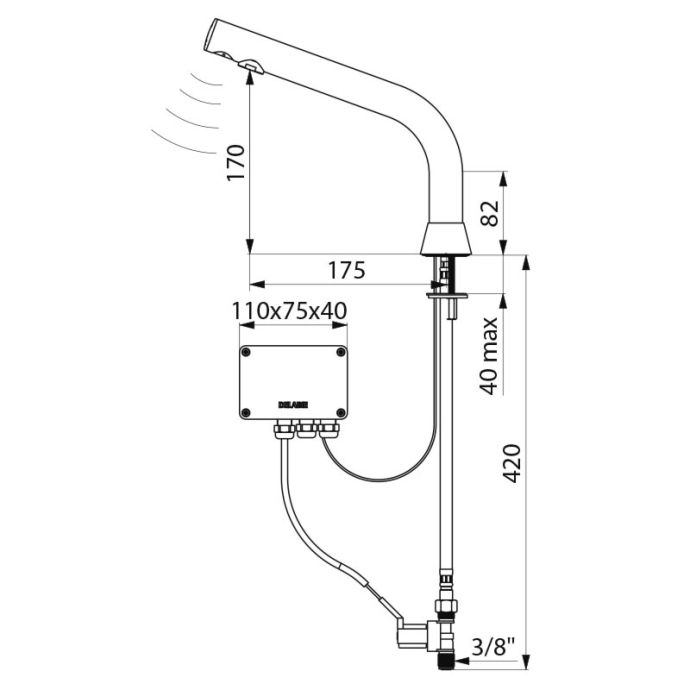

TECHNICAL CHARACTERISTICS
BINOPTIC electronic tap
Ref. 388015Supply | Main supply 230/12 V |
Connector | M3/8" |
Technology | Electronic |
Drop height | 170mm |
Spout length | 175mm |
Flow rate | 3 lpm |
Certificates |
![]() ![]() ![]() ![]() |
Warranty | ![]() |
VARIANTS
38801515 | Mains supply - Spout H. 170mm - Ø15mm compression fittings | ||
---|---|---|---|
398015 | Mains supply - Spout H. 250mm - M3/8" | ||
39801515 | Mains supply - Spout H. 250mm - Ø15mm compression fittings | ||
488015 | Battery operated - Spout H. 170mm - M3/8" | ||
48801515 | Battery operated - Spout H. 170mm - Ø15mm compression fittings | ||
498015 | Battery operated - Spout H. 250mm - M3/8" | ||
49801515 | Battery operated - Spout H.250mm - Ø15mm compression fittings |
