DESCRIPTION

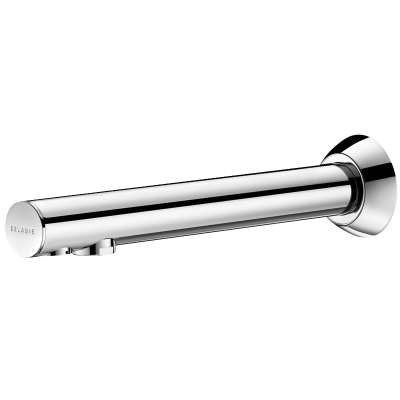

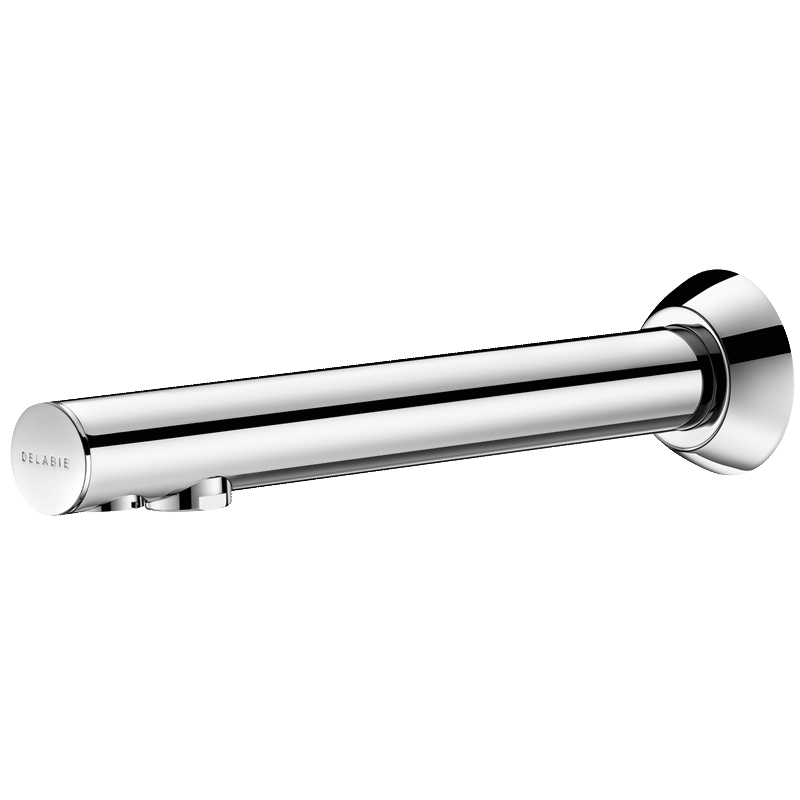

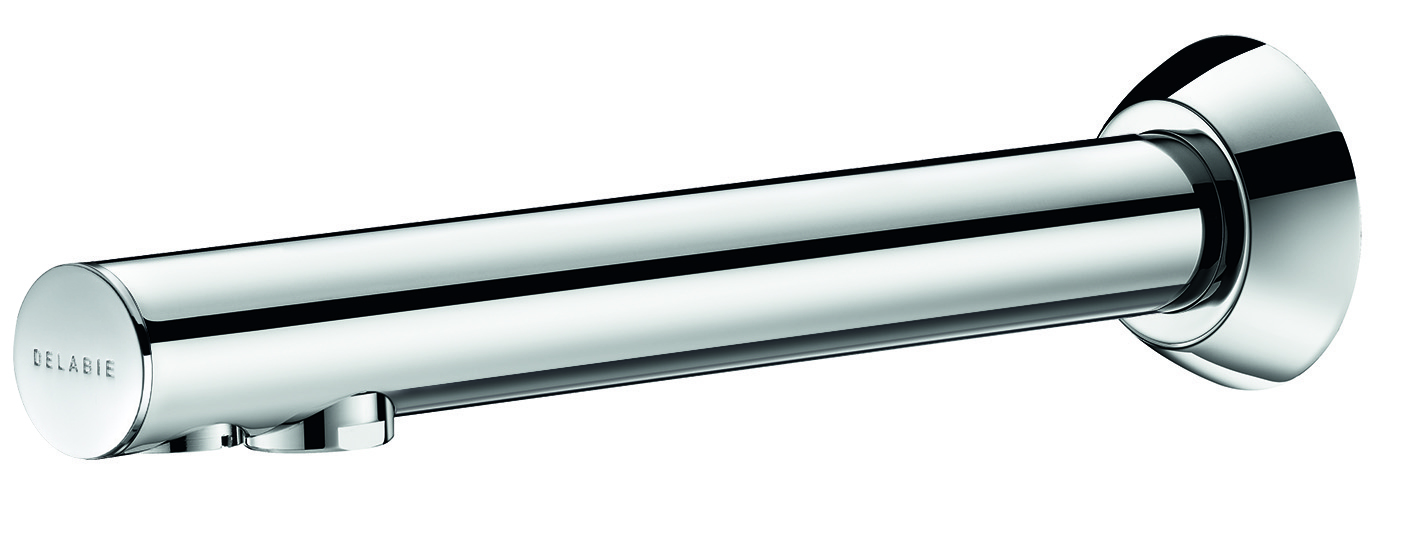

BINOPTIC electronic tap
Ref. 379ENCRecessed electronic basin tap:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Filter and solenoid valve M3/8".
Chrome-plated brass body.
Chrome-plated spout for recessed installation.
Anti-blocking security.
Spout with smooth interior and low volume of water (limits bacterial niches).
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Filter and solenoid valve M3/8".
Chrome-plated brass body.
Chrome-plated spout for recessed installation.
Anti-blocking security.
Spout with smooth interior and low volume of water (limits bacterial niches).
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
LED diagnostic aids
Independent IP65 electronic unit
TECHNICAL CHARACTERISTICS
BINOPTIC electronic tap
Ref. 379ENCSupply | 230/12V mains supply |
Connector | M3/8" |
Technology | Electronic |

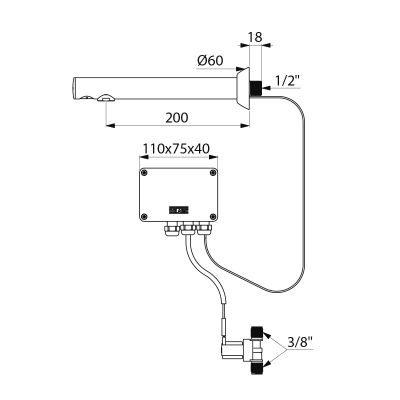

Spout length | 200mm |
Flow rate | 3 lpm |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
BINOPTIC electronic tap
Ref. 379ENC1. | CEL378150V |
|
Detector |
2. | 922024.2P |
|
ECO flow straightener |
3. | 495444BC |
|
Electronic control unit |
4. | 495612 |
|
Solenoid valve |
VARIANTS
379ENC15 | Recessed - Spout L.200mm - Ø15mm compression fittings | ||
---|---|---|---|
379DER | For walls from 1 to 190mm - Spout L. 205mm | ||
379DER15 | For walls 1 - 190mm - Spout L. 205mm - Ø15mm compression fittings | ||
379D13 | For walls from 1 to 190mm - Spout L. 135mm | ||
379D1315 | For walls 1 - 190mm - Spout L. 135mm - Ø15mm compression fittings |
VARIANTS
379ENC15 | Recessed - Spout L.200mm - Ø15mm compression fittings | ||
---|---|---|---|
379DER | For walls from 1 to 190mm - Spout L. 205mm | ||
379DER15 | For walls 1 - 190mm - Spout L. 205mm - Ø15mm compression fittings | ||
379D13 | For walls from 1 to 190mm - Spout L. 135mm | ||
379D1315 | For walls 1 - 190mm - Spout L. 135mm - Ø15mm compression fittings |
