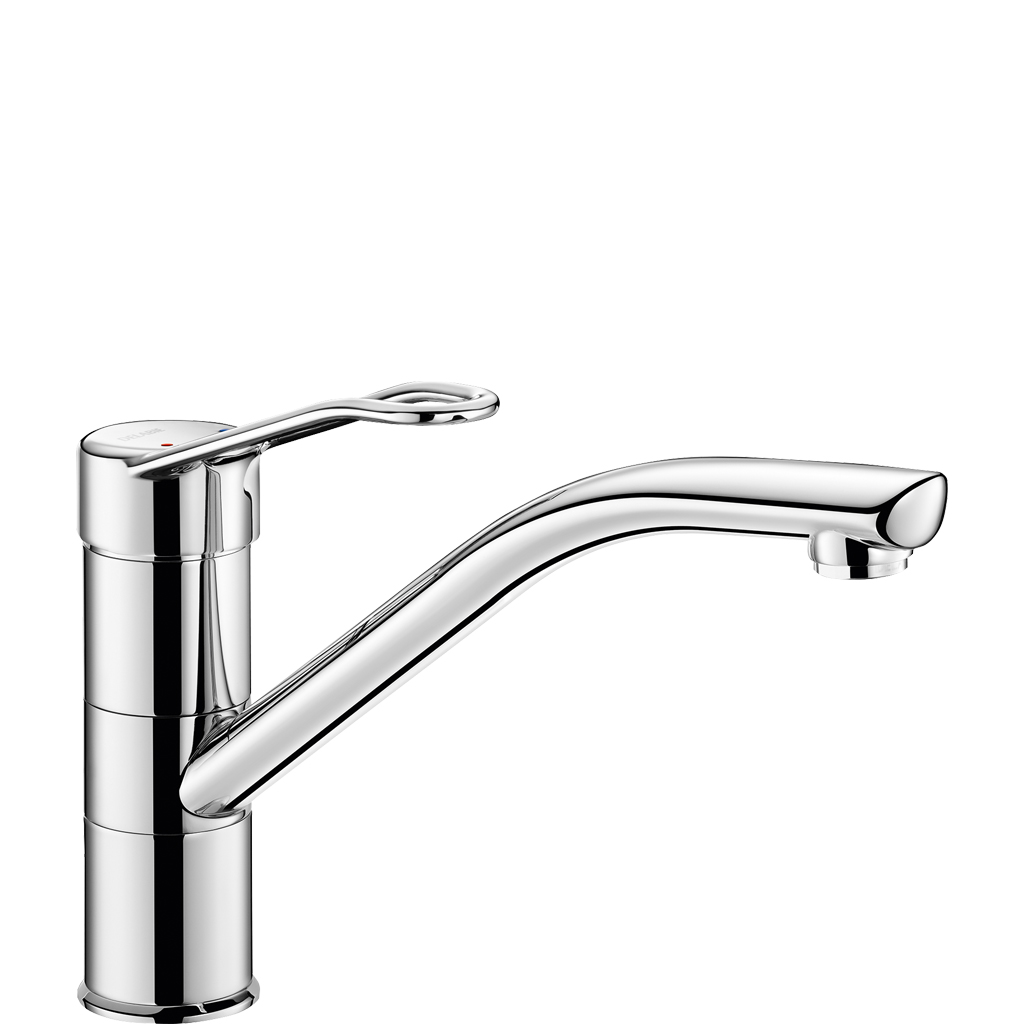

Mechanical mixer for sinks or troughs

Ref. 2510
Single hole mechanical mixer with swivelling spout H. 155mm L. 230mm
Mechanical mixer for sinks or troughs

Presentation

DESCRIPTION

Mechanical mixer for sinks or troughs

Ref. 2510
Deck-mounted mechanical sink mixer.
Single hole mixer with swivelling spout H. 155mm L. 230mm fitted with hygienic flow straightener.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 40mm standard ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors.
Body and spout made from chrome-plated brass.
Flow limited to 9 lpm at 3 bar.
Sculptured control lever.
Supplied with PEX flexibles F3/8".
Fixing reinforced by 2 stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Sécurité anti-brûlure

Pre-set maximum temperature limiter

Confort - Ergonomie - Déclenchement souple

Ergonomic sculptured control lever is easy to grip

Confort - Ergonomie - Déclenchement souple

Comfort: optimum drop height and spout projection

Characteristics

TECHNICAL CHARACTERISTICS

Mechanical mixer for sinks or troughs

Ref. 2510
Connector F3/8"
Height 178mm
Drop height 155mm
Spout length 230mm
Flow rate 9 lpm at 3 bar
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo NF Logo PZH Logo DoP
Warranty 30-Year
Repairability
Mechanical mixer for sinks or troughs
Ref. 2510

Downloads

DOWNLOADS

Mitigeur d'évier mécanique

Ref. 2510

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

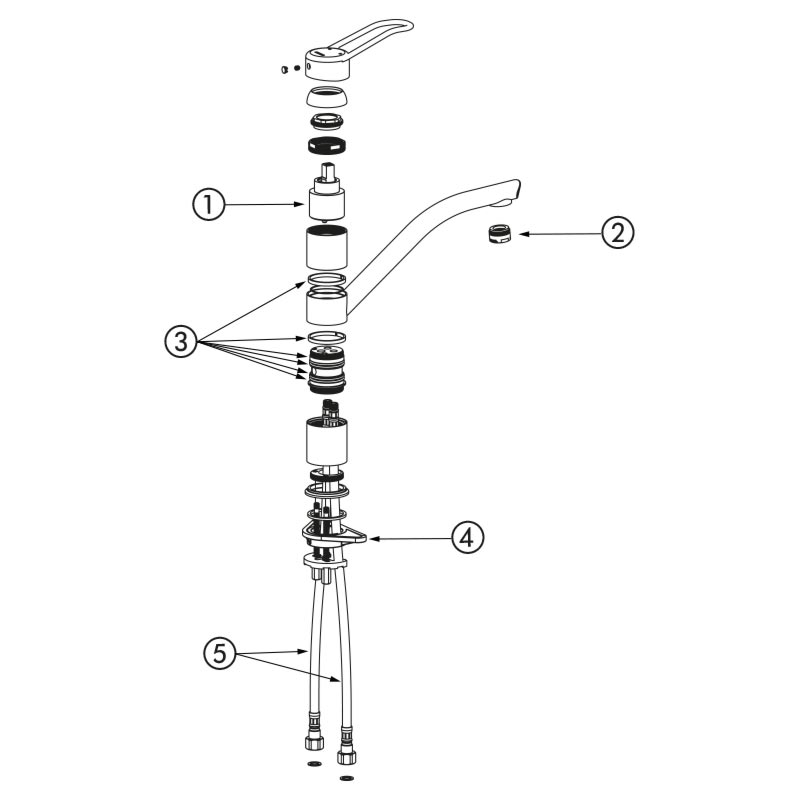

SPARE PARTS

Mechanical mixer for sinks or troughs

Ref. 2510
1. N249AA75
Ø40mm ceramic cartridge
2. 921024.2P
Star-shaped flow straightener
3. 753256
Replacement O-ring joints
4. 2510SES
Locking kit
5. 256P
Fixing plate
6. FLEXPEX2
F3/8" PEX flexible hoses

VARIANTS

2510T Spout H.155 L.230 - 9 lpm - Solid control lever
2510L Spout H.155 L.230 - 9 lpm - Hygiene lever
2210 Spout H.145 L.215 - 9 lpm - Sculptured lever
2210L Spout H.145 L.215 - 9 lpm - Hygiene lever
