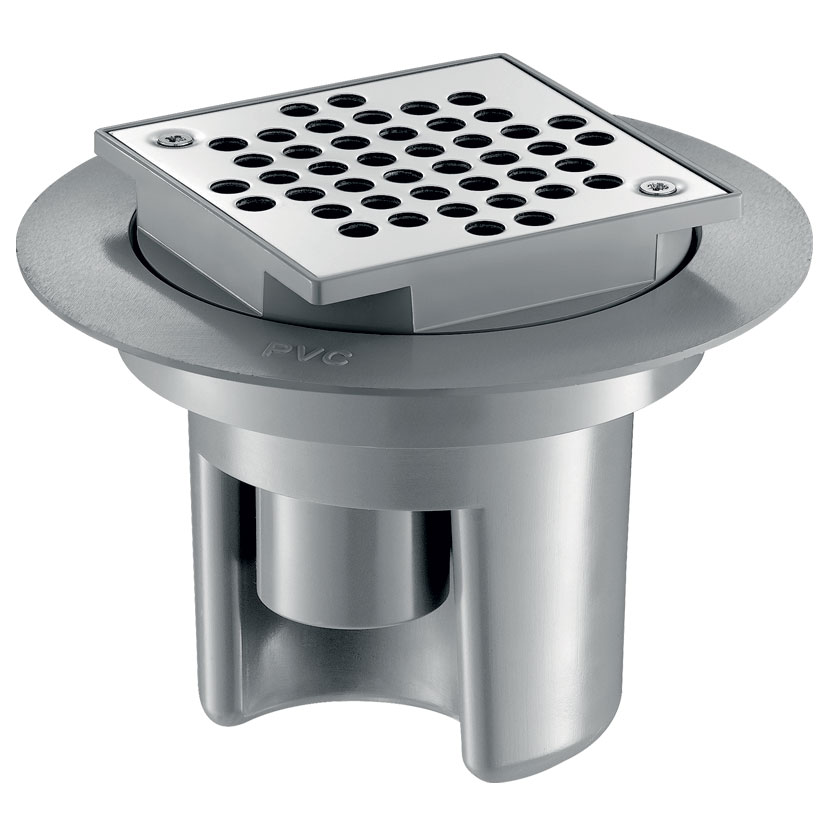

Floor trap

Ref. 682001
For tiled or concrete floors
See variants See variants
Floor trap

Presentation

DESCRIPTION

Floor trap

Ref. 682001
Floor trap for hard floors (tiles or concrete floors) with adjustable height:
Flow rate 36 lpm (meets standards).
Water level 50mm.
100x100mm bright polished stainless steel grid.
Horizontal (elbow joint not supplied) or vertical outlet Ø 40mm integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 80mm with extension.
Grid fixed with 2 stainless steel screws.
30-year warranty.

ADVANTAGES

Maintenance aisée - Installation aisée

Trap adaptable to type of floor, adjustable height

Nettoyage aisé

Plunger with handle,body is completely smooth

Anti-vandalisme

Tamperproof stainless steel grid

Characteristics

TECHNICAL CHARACTERISTICS

Floor trap

Ref. 682001
Height 190mm max
Length 100mm
Width 100mm
Flow rate 36 lpm
Certificates Logo DoP
Warranty 30-Year
Floor trap
Ref. 682001

Downloads

DOWNLOADS

Floor trap

Ref. 682001

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

682001DE Ø 50mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
682001UK Ø 43mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm

Associated products

VARIANTS

682001DE Ø 50mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
682001UK Ø 43mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
