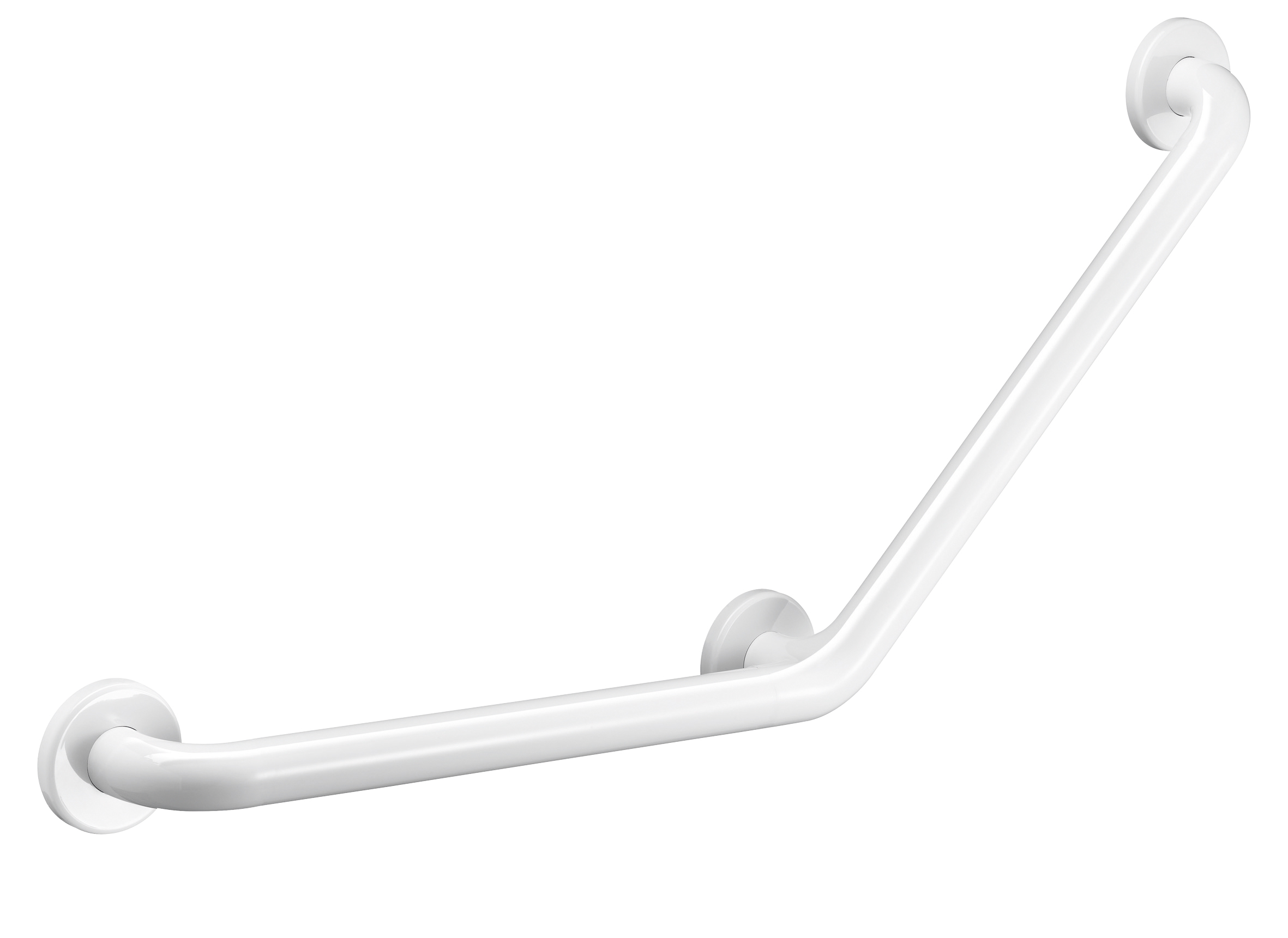

Angled stainless steel grab bar 135°, white, 400 x 400mm
Ref. 5082W
White powder-coated stainless steel, 3 fixing points
White powder-coated stainless steel, 3 fixing points
DESCRIPTION
Angled stainless steel grab bar 135°, white, 400 x 400mm
Ref. 5082WAngled grab bar 135° for people with reduced mobility, Ø 32mm.
For use as a handrail (horizontal part) or as a grab bar (135° part) for WCs, showers or baths.
Universal for either left or right side.
Dimensions: 400 x 400mm.
Bacteriostatic 304 stainless steel tube, white powder-coated.
Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings, secured to wall on a 3-hole, 304 stainless steel plate, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Tested to over 250kg. Maximum recommended user weight: 170kg.
Angled grab bar with a 30-year warranty.
CE marked.
For use as a handrail (horizontal part) or as a grab bar (135° part) for WCs, showers or baths.
Universal for either left or right side.
Dimensions: 400 x 400mm.
Bacteriostatic 304 stainless steel tube, white powder-coated.
Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings, secured to wall on a 3-hole, 304 stainless steel plate, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Tested to over 250kg. Maximum recommended user weight: 170kg.
Angled grab bar with a 30-year warranty.
CE marked.
ADVANTAGES
![Sécurité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/2/1/3/3127-12-eng-US/securite.png)
Tested to over 250kg
![Maintenance aisée - Installation aisée](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
3 fixing points: easy to install
![Faible espacement au mur - Encombrement limité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/8/9/2/2987-12-eng-US/encombrement-limite.png)
40mm gap between bar and wall: minimal space
![Nettoyage aisé](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/2/0/3/3029-12-eng-US/nettoyage-aise.png)
Smooth surface easy to clean
TECHNICAL CHARACTERISTICS
Angled stainless steel grab bar 135°, white, 400 x 400mm
Ref. 5082WHeight | 400mm |
Length | 400mm |
Diameter | 32mm |
Width to the wall | 40mm |
Finish | 304 stainless steel, white powder-coated |
Certificates |
![]() ![]() |
Warranty | ![]() |
VARIANTS
5082P | Bright polished stainless steel UltraPolish - Ø 32, 400 x 400mm | ||
---|---|---|---|
5082S | Polished satin stainless steel UltraSatin -Ø 32, 400 x 400mm | ||
5087P | Bright polished stainless steel UltraPolish - Ø 25, 400 x 400mm |
VARIANTS
5082P | Bright polished stainless steel UltraPolish - Ø 32, 400 x 400mm | ||
---|---|---|---|
5082S | Polished satin stainless steel UltraSatin -Ø 32, 400 x 400mm | ||
5087P | Bright polished stainless steel UltraPolish - Ø 25, 400 x 400mm |
