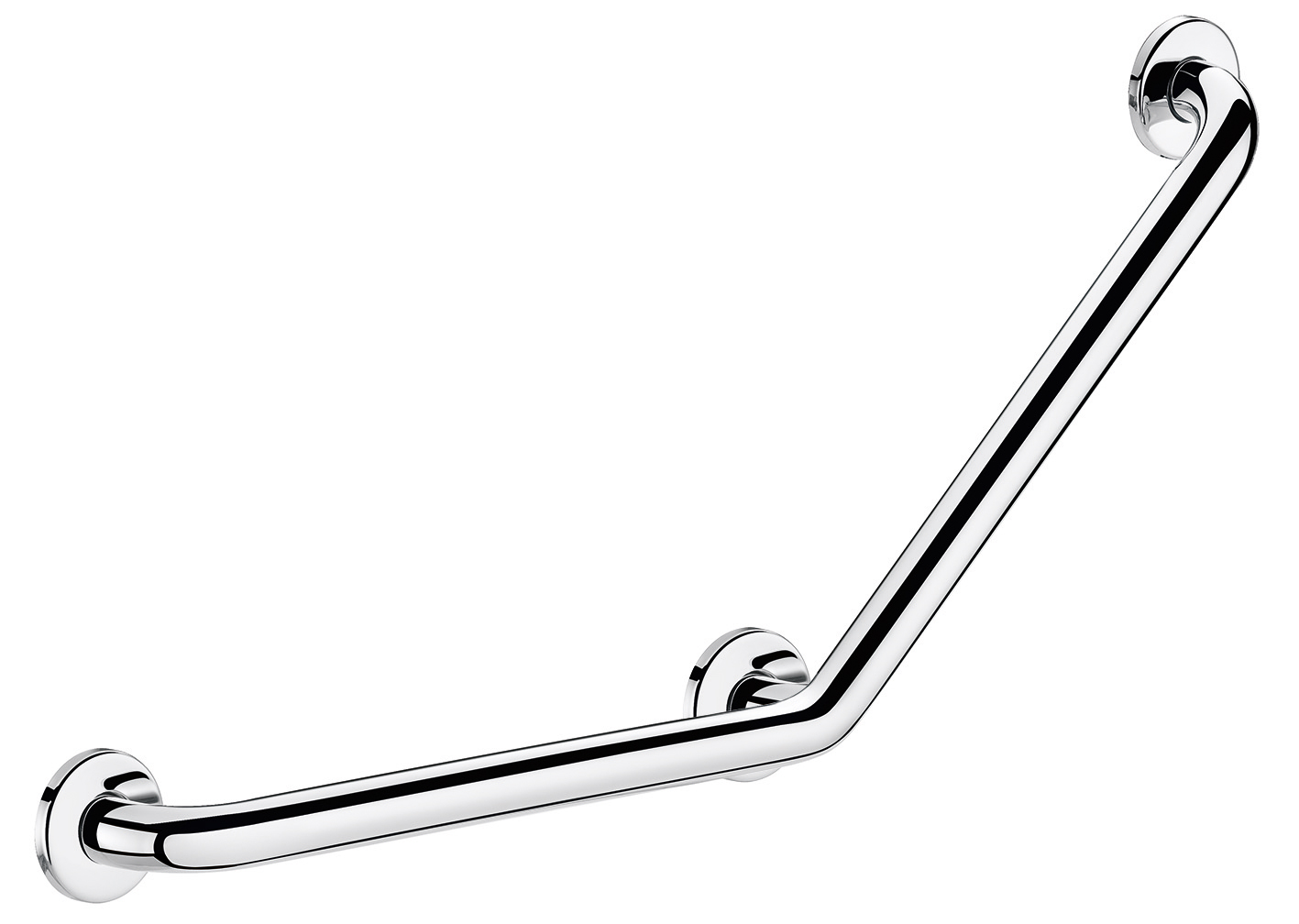

Angled stainless steel grab bar 135°, bright, 400 x 400mm

Ref. 5082P
UltraPolish bright polished stainless steel, 3 fixing points
Angled stainless steel grab bar 135°, bright, 400 x 400mm

Presentation

DESCRIPTION

Angled stainless steel grab bar 135°, bright, 400 x 400mm

Ref. 5082P
Angled grab bar 135° for people with reduced mobility, Ø 32mm.
For use as a handrail (horizontal part) or as a grab bar (135° part) for WCs, showers or baths.
Universal for either left or right side.
Dimensions: 400 x 400mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraPolish bright polished finish, non-porous uniform surface for easy maintenance and hygiene.
Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings, secured to wall on a 3-hole, 304 stainless steel plate, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Tested to over 250kg. Maximum recommended user weight: 170kg.
Angled grab bar with a 30-year warranty.
CE marked.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: reduces bacterial development

Sécurité

Tested to over 250kg

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: minimal space

Nettoyage aisé

UltraPolish: smooth surface, easy to clean

Characteristics

TECHNICAL CHARACTERISTICS

Angled stainless steel grab bar 135°, bright, 400 x 400mm

Ref. 5082P
Height 400mm
Length 400mm
Diameter 32mm
Width to the wall 40mm
Finish UltraPolish 304 stainless steel, bright polished
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Barre de maintien coudée 135° Inox brillant, 400 x 400 mm

Ref. 5082P

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

5082S Polished satin stainless steel UltraSatin -Ø 32, 400 x 400mm
5082W White powder-coated stainless steel - Ø 32, 400 x 400mm
5087P Bright polished stainless steel UltraPolish - Ø 25, 400 x 400mm

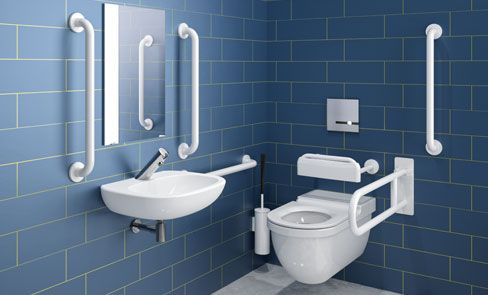

Standards and regulations for disabled toilets
