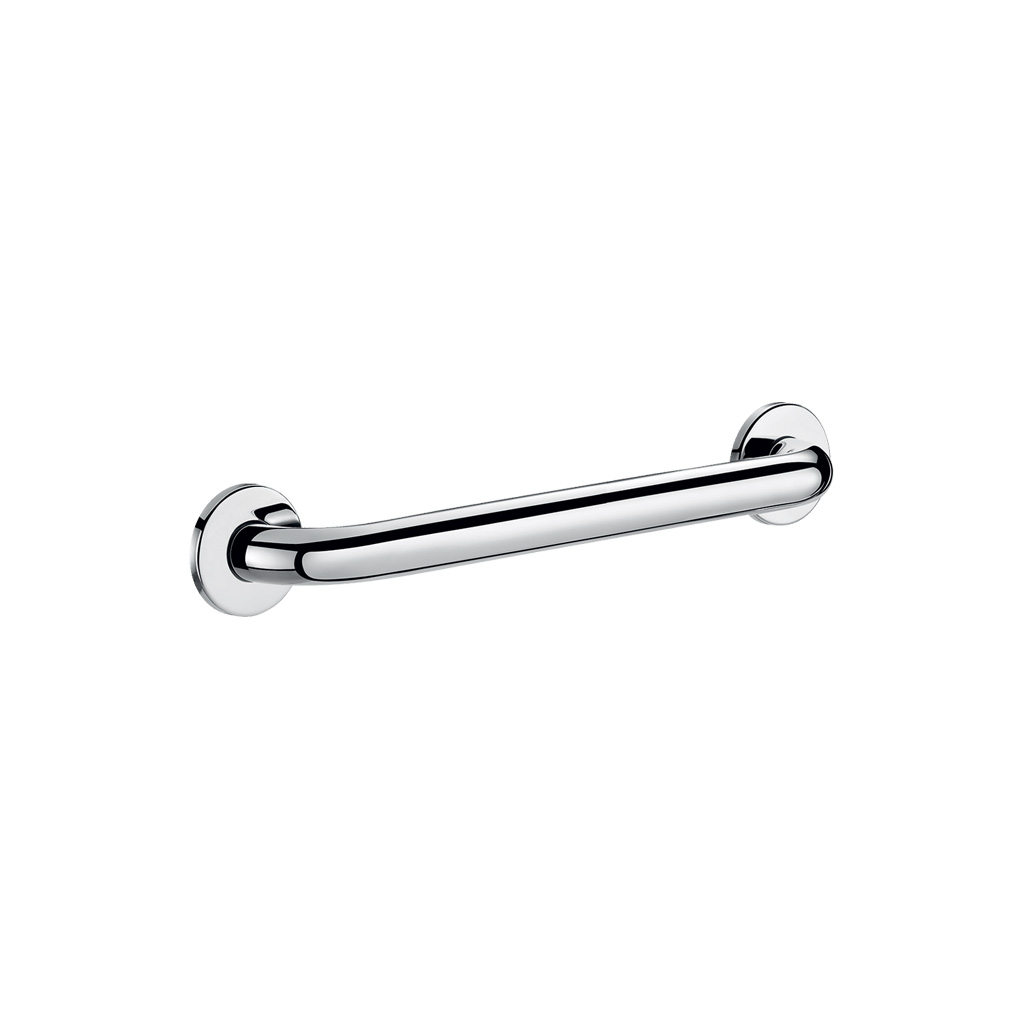

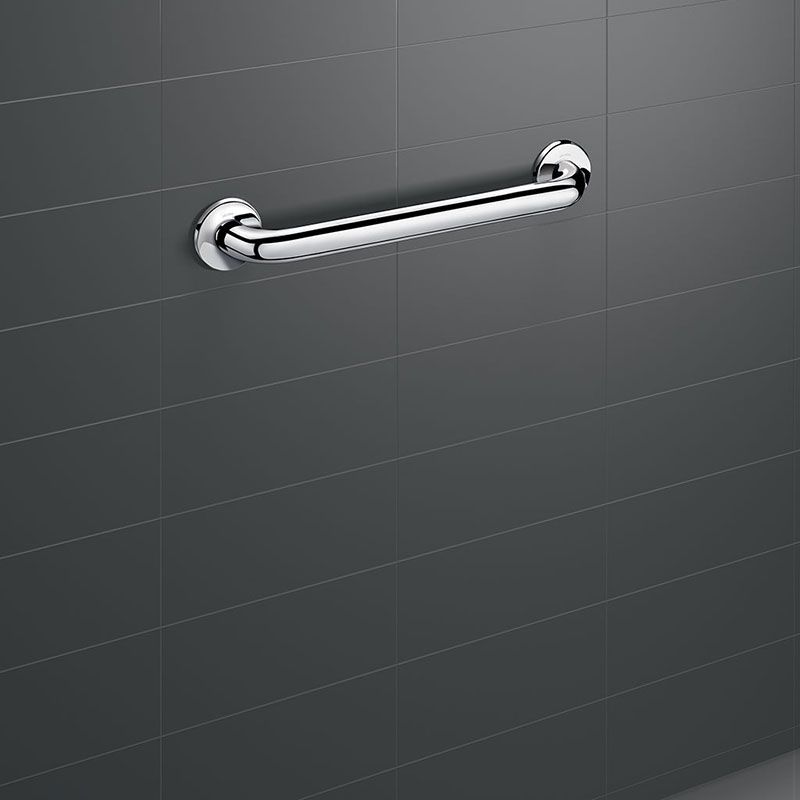

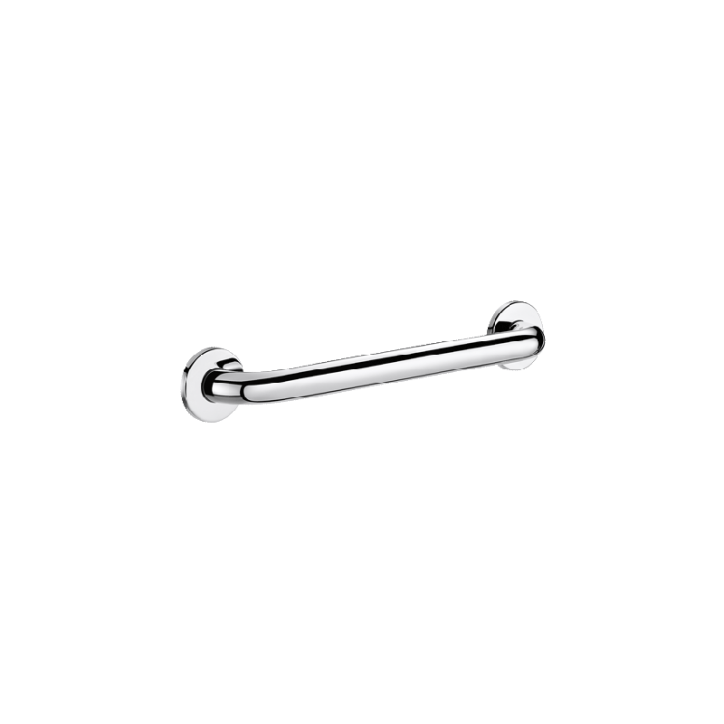

Straight stainless steel grab bar, bright, Ø 32mm, 300mm

Ref. 5050P2
UltraPolish bright polished stainless steel
Straight stainless steel grab bar, bright, Ø 32mm, 300mm

Presentation

DESCRIPTION

Straight stainless steel grab bar, bright, Ø 32mm, 300mm

Ref. 5050P2
Straight grab bar for people with reduced mobility.
Tube Ø 32mm, 300mm centres.
For use as a handrail and grab or support bar for WCs, showers or baths.
Straight grab bar made from bacteriostatic 304 stainless steel.
Stainless steel with UltraPolish bright polished finish, non-porous uniform surface for easy maintenance and hygiene.
Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Fixings concealed by a 3-hole cover plate, 304 stainless steel, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 250kg. Maximum recommended user weight: 170kg.
30-year warranty.
CE marked.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: reduces bacterial development

Sécurité

Tested to over 250kg

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: space saving

Nettoyage aisé

UltraPolish: smooth surface, easy to clean

Characteristics

TECHNICAL CHARACTERISTICS

Straight stainless steel grab bar, bright, Ø 32mm, 300mm

Ref. 5050P2

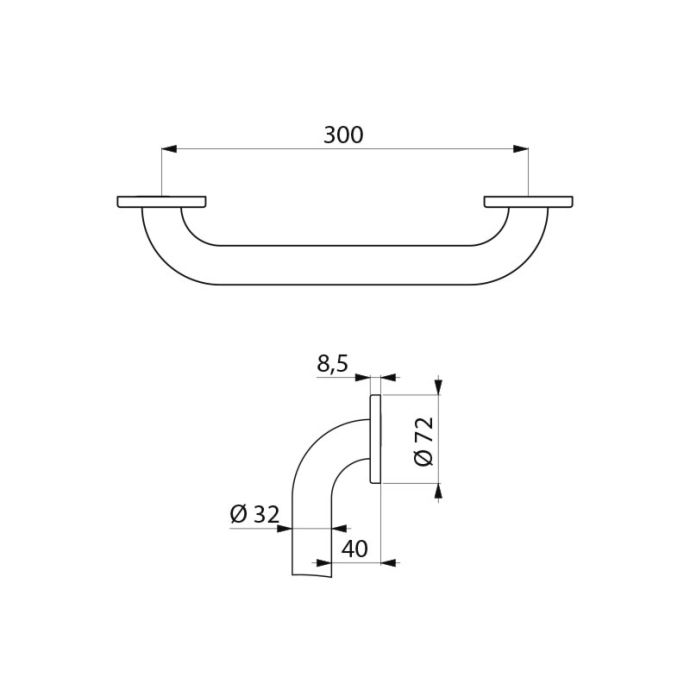

Length 300mm
Diameter 32mm
Width to the wall 40mm
Finish UltraPolish 304 stainless steel, bright polished
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Straight stainless steel grab bar, bright, Ø 32mm, 300mm

Ref. 5050P2

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

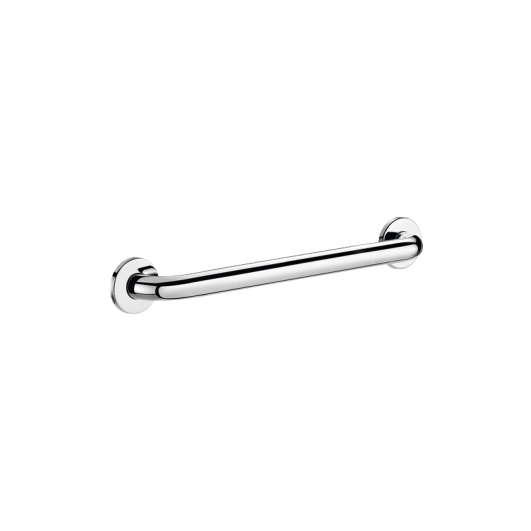

50504P2 Bright polished stainless steel UltraPolish - Ø 32, 400mm centres
50505P2 Bright polished stainless steel UltraPolish - Ø 32, 500mm centres
50506P2 Bright polished stainless steel UltraPolish - Ø 32, 600mm centres
50509P2 Bright polished stainless steel UltraPolish - Ø 32, 900mm centres
5050S Polished satin stainless steel UltraSatin - Ø 32, 300mm centres
50504S Polished satin stainless steel UltraSatin - Ø 32, 400mm centres
50505S Polished satin stainless steel UltraSatin - Ø 32, 500mm centres
50506S Polished satin stainless steel UltraSatin - Ø 32, 600mm centres
50509S Polished satin stainless steel UltraSatin - Ø 32, 900mm centres
50510S Polished satin stainless steel UltraSatin - Ø 32, 1,050mm centres
5055P2 Bright polished stainless steel UltraPolish - Ø 25, 300mm centres
5057P2 Bright polished stainless steel UltraPolish - Ø 25, 500mm centres
5058P2 Bright polished stainless steel UltraPolish - Ø 25, 600mm centres
5059P2 Bright polished stainless steel UltraPolish - Ø 25, 900mm centres

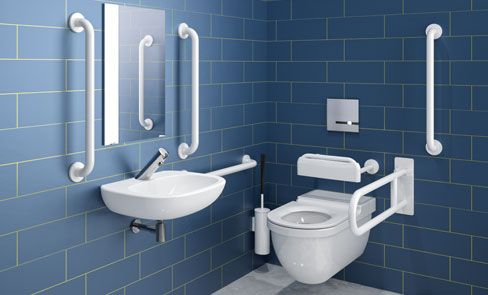

Standards and regulations for disabled toilets
