Corner grab bar with sliding vertical bar, anti-bacterial white Nylon

Ref. 5481N
Bright white NylonClean anti-bacterial HR Nylon,
Corner grab bar with sliding vertical bar, anti-bacterial white Nylon

Presentation

DESCRIPTION

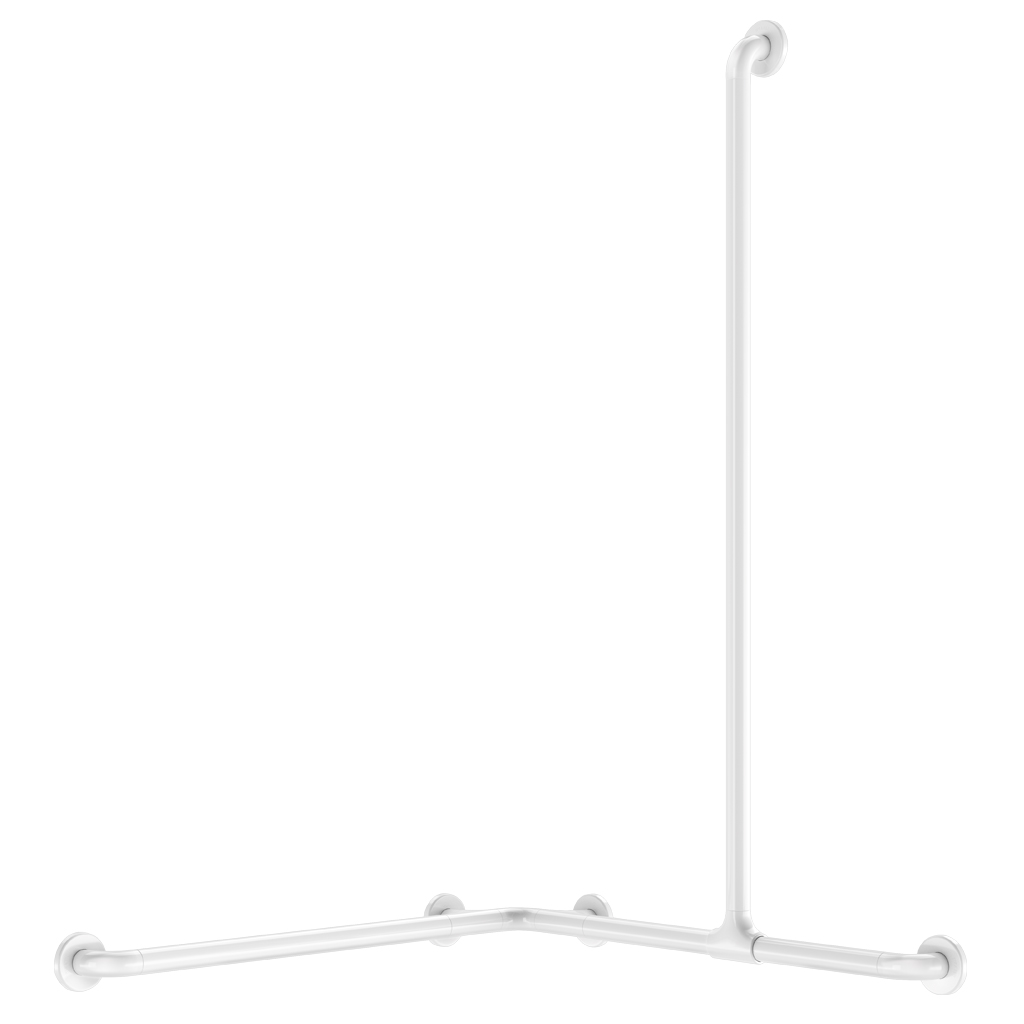

Corner grab bar with sliding vertical bar, anti-bacterial white Nylon

Ref. 5481N
Two-wall shower grab bar with sliding vertical bar Ø 32mm, for people with reduced mobility.
Use as a grab bar to support the user in an upright position.
Helps and secures entry and movement in the shower.
Use as a shower rail by adding a sliding shower head holder and/or soap dish.
Can support a removable shower seat (order separately).
NylonClean anti-bacterial treatment: optimal protection against bacterial development.
Upright position can be adjusted during installation: can be moved to the left or the right in order to adapt the space (positioning of shower, depth of shower seat...).
Montage possible avec remontée verticale à gauche ou à droite.
Suitable for intensive use in commercial environment or healthcare.
High-strength polyamide (Nylon): with 2mm reinforced steel core treated against corrosion.
Uniform non-porous surface for easy maintenance and hygiene.
Good resistance to chemical products and cleaning. Anti-UV treatment.
Warm to the touch.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings, secured to wall by a 6-hole plate, Ø 73mm.
Supplied with stainless steel screws for concrete walls.
Dimensions: 1 150 x 750 x 750mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.

ADVANTAGES

Maintenance aisée - Installation aisée

Upright position can be adjusted

Hygiène - Anti-bactérien - BIOSAFE

NylonClean anti-bacterial treatment

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

38mm gap between bar and wall: space saving

Characteristics

TECHNICAL CHARACTERISTICS

Corner grab bar with sliding vertical bar, anti-bacterial white Nylon

Ref. 5481N
Height 1,150mm
Length 750mm
Width 750mm
Diameter Ø 32mm
Width to the wall 38mm
Thickness Nylon: 3.5mm; Steel: 2mm
Finish Bright white anti-bacterial HR Nylon
Certificates Logo CE Logo PZH
Warranty 30-Year
