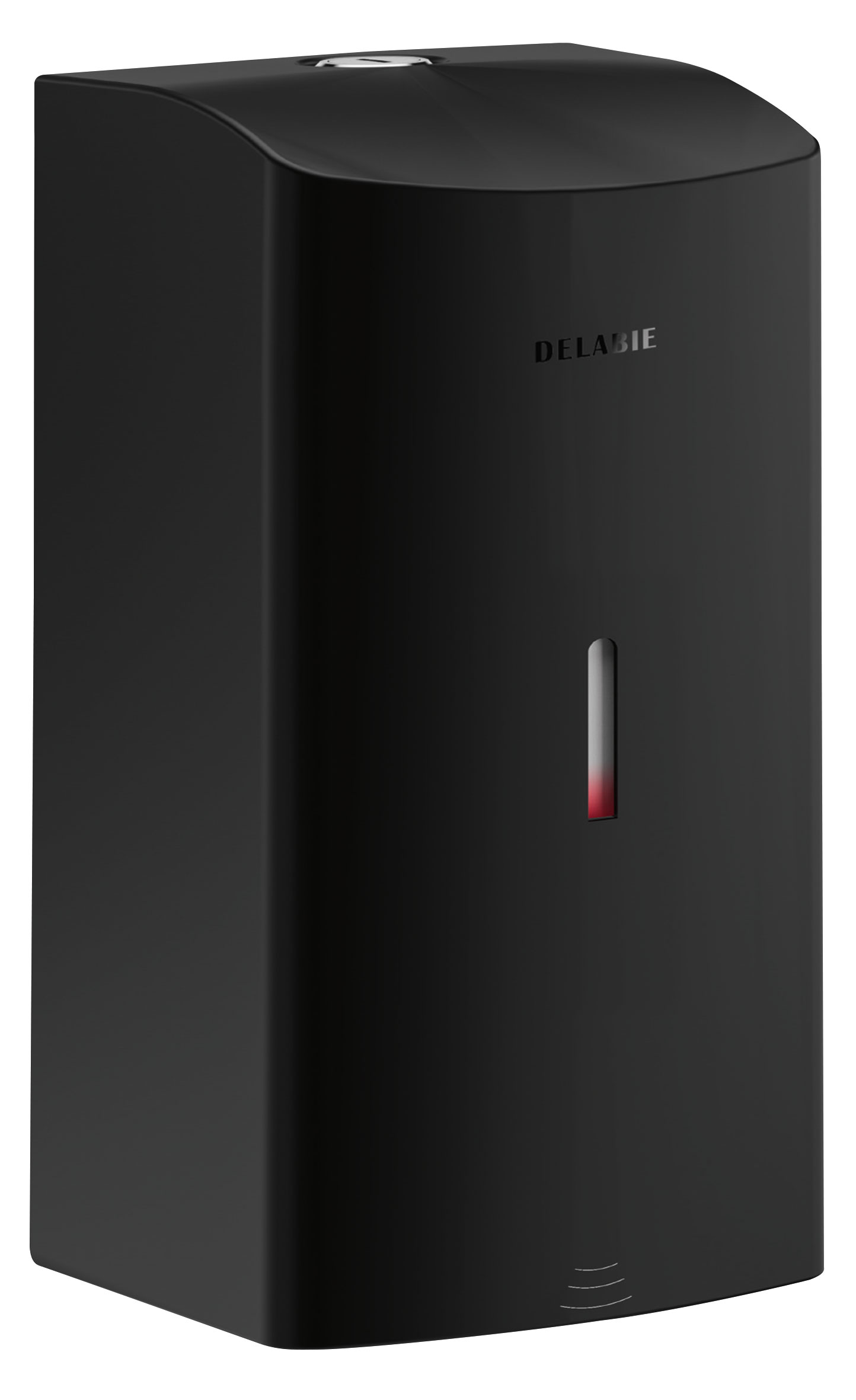

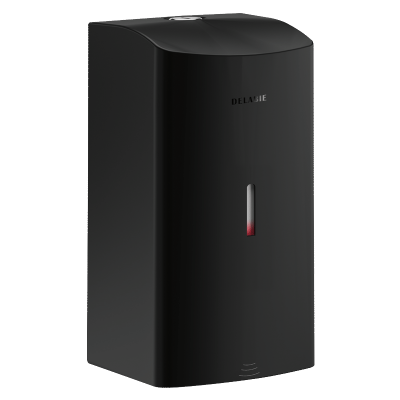

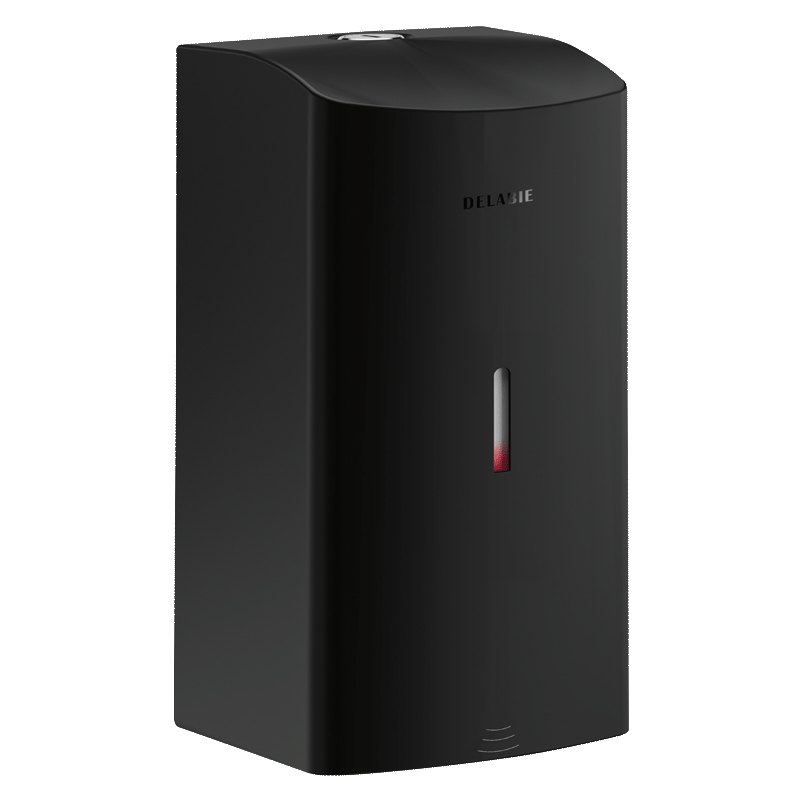

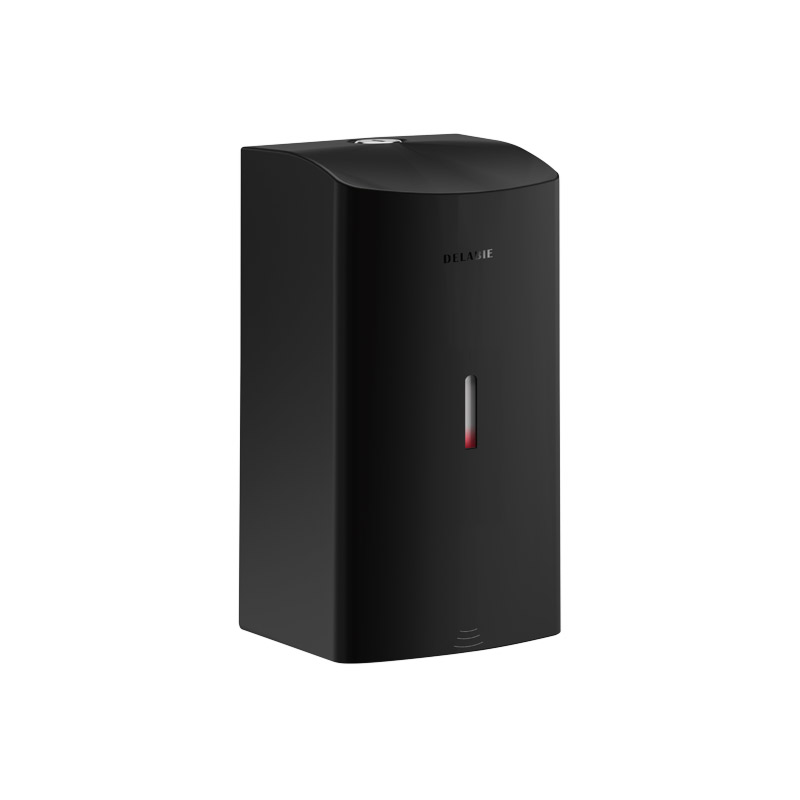

Wall-mounted electronic liquid soap dispenser, 0.5 litre

Ref. 512566BK
Liquid soap or hydroalcoholic gel dispenser
Wall-mounted electronic liquid soap dispenser, 0.5 litre

Presentation

DESCRIPTION

Wall-mounted electronic liquid soap dispenser, 0.5 litre

Ref. 512566BK
Wall-mounted electronic soap dispenser.
Liquid soap or hydroalcoholic gel dispenser.
Vandal-resistant model with lock and standard DELABIE key.
No manual contact: hands are automatically detected by infrared cell (detection distance can be adjusted).
Bacteriostatic 304 stainless steel cover.
One-piece hinged cover for easy maintenance and improved hygiene.
No-waste pump dispenser: dispenses 0.8ml (can be adjusted up to 7 doses per activation).
Option of operation in anti-clogging mode.
Automatic soap dispenser: 6 AA -1.5V (DC9V) batteries supplied integrated in the soap dispenser body.
Low battery indicator light.
Tank with large opening: easy to fill from large containers.
Window allows soap level to be checked.
Matte black 304 stainless steel.
Stainless steel thickness: 1mm.
Capacity: 0.5 litre.

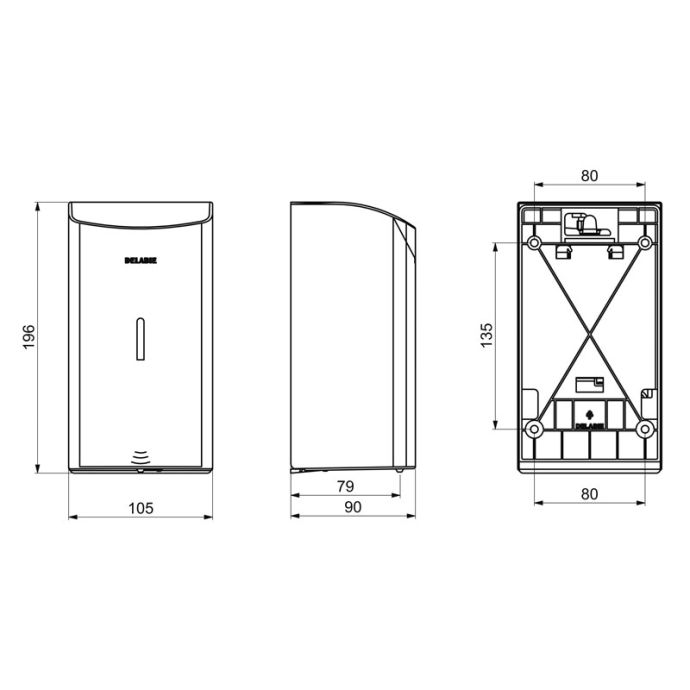

Dimensions: 90 x 105 x 196mm.
For vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s.
Compatible with hydroalcoholic gel.
CE marked.
Wall-mounted electronic soap dispenser with 30-year warranty.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

Total hygiene: no manual contact

Design

Design: matte black finish

Economie d'eau

No-waste pump dispenser

Universel

Liquid soap or hydroalcoholic gel

Characteristics

TECHNICAL CHARACTERISTICS

Wall-mounted electronic liquid soap dispenser, 0.5 litre

Ref. 512566BK
Supply 6 AA batteries
Technology Infrared sensor

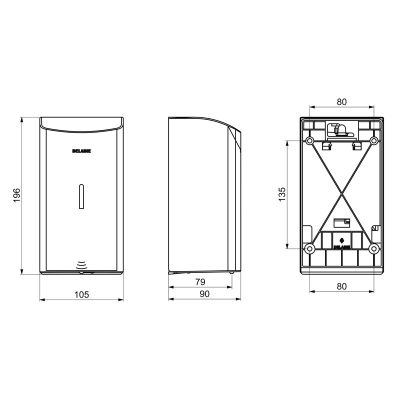

Height 196mm
Depth 90mm
Width 105mm
Volume 0.5 litre tank
Thickness 1mm
Finish Matte black 304 stainless steel
Certificates Logo CE
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Distributeur de savon mural automatique, 0,5 litre

Ref. 512566BK

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Wall-mounted electronic liquid soap dispenser, 0.5 litre

Ref. 512566BK
1. 51206BC
Electronic control unit and o-ring
2. SER2911V
Lock with key

VARIANTS

512566P 0.5L electronic soap dispenser - Bright polished 304 stainless steel
512566S 0.5L electronic soap dispenser - Polished satin 304 stainless steel
512566W 0.5L electronic soap dispenser - White powder-coated 304 stainless steel
