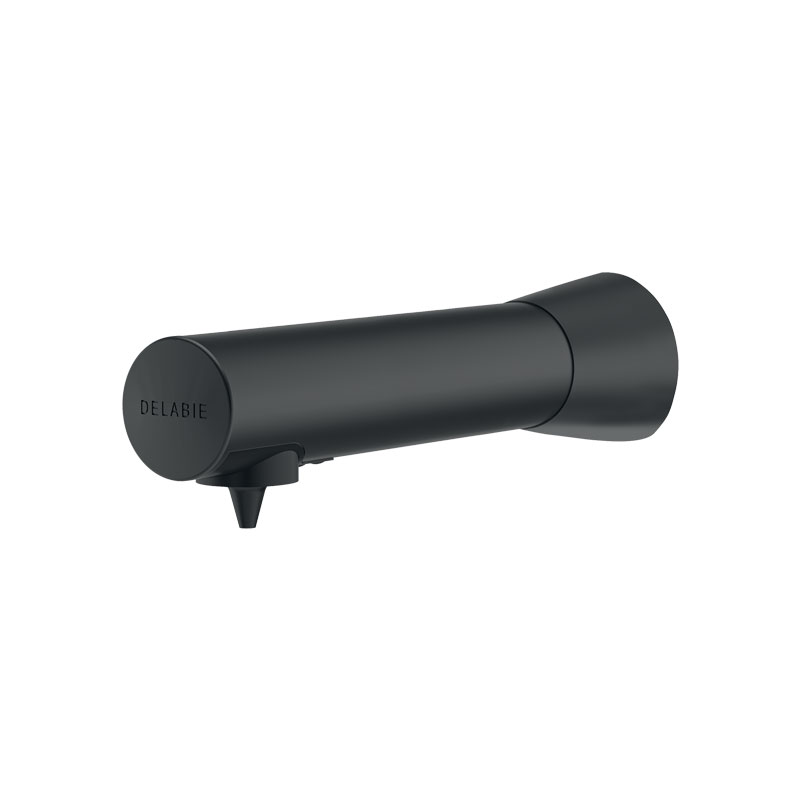

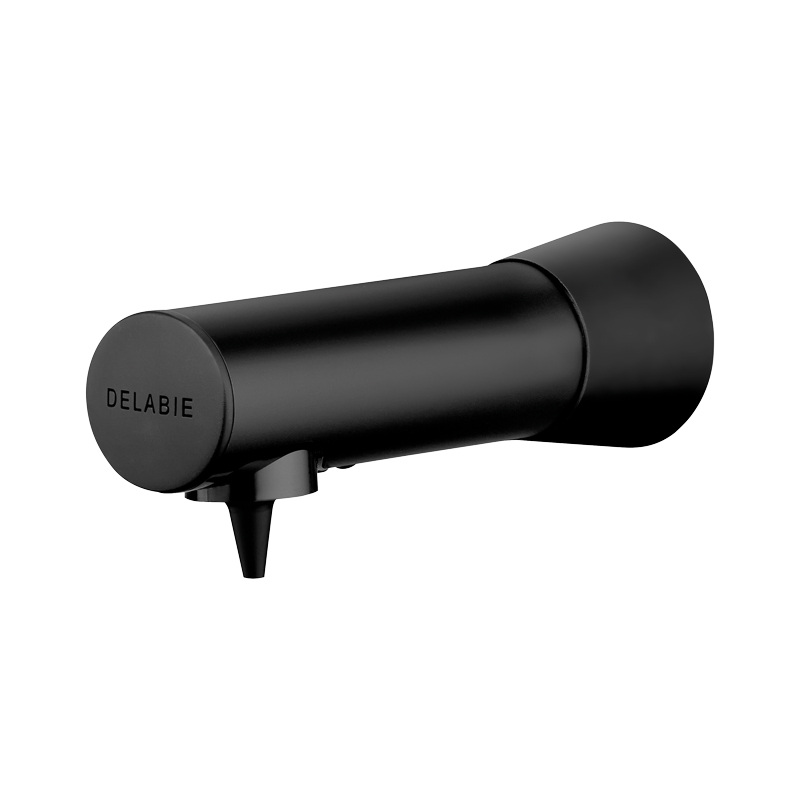

BINOPTIC wall-mounted electronic soap dispenser
Ref. 512051BK
Liquid or foam soap or hydroalcoholic gel dispenser
Liquid or foam soap or hydroalcoholic gel dispenser
DESCRIPTION
BINOPTIC wall-mounted electronic soap dispenser
Ref. 512051BKWall-mounted electronic soap dispenser.
Liquid or foam soap or hydroalcoholic gel dispenser.
No manual contact: infrared cell detects hands automatically.
Matte black 304 stainless steel spout.
No waste pump dispenser.
Independent electronic housing and removable tank enable installation beneath the washbasin.
Automatic soap dispenser: mains supply with 230/6V transformer.
For vegetable-based liquid soap with maximum viscosity of 3,000 mPa.s or specific foam soap.
Compatible with hydroalcoholic gel
Total spout length: 115mm.
Supplied with 1-litre tank.
30-year warranty.
CE marked.
Liquid or foam soap or hydroalcoholic gel dispenser.
No manual contact: infrared cell detects hands automatically.
Matte black 304 stainless steel spout.
No waste pump dispenser.
Independent electronic housing and removable tank enable installation beneath the washbasin.
Automatic soap dispenser: mains supply with 230/6V transformer.
For vegetable-based liquid soap with maximum viscosity of 3,000 mPa.s or specific foam soap.
Compatible with hydroalcoholic gel
Total spout length: 115mm.
Supplied with 1-litre tank.
30-year warranty.
CE marked.
ADVANTAGES
Total hygiene: no manual contact
Comfort: automatic soap dispenser
No waste pump dispenser
Liquid or foam soap or gel dispenser

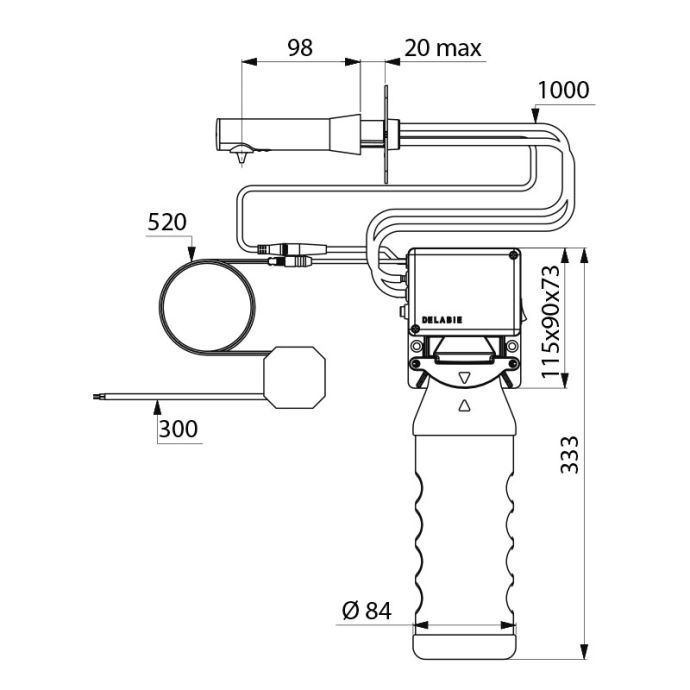

TECHNICAL CHARACTERISTICS
BINOPTIC wall-mounted electronic soap dispenser
Ref. 512051BK| Supply | Mains 230/6V |
| Technology | Infrared sensor |
| Height | 333mm (tank + electronic unit) |
| Length | 115mm |
| Spout length | 98mm |
| Volume | 1 litre tank |
| Finish | Matte black 304 stainless steel |
| Certificates |
|
| Warranty |
|
| Repairability |  |

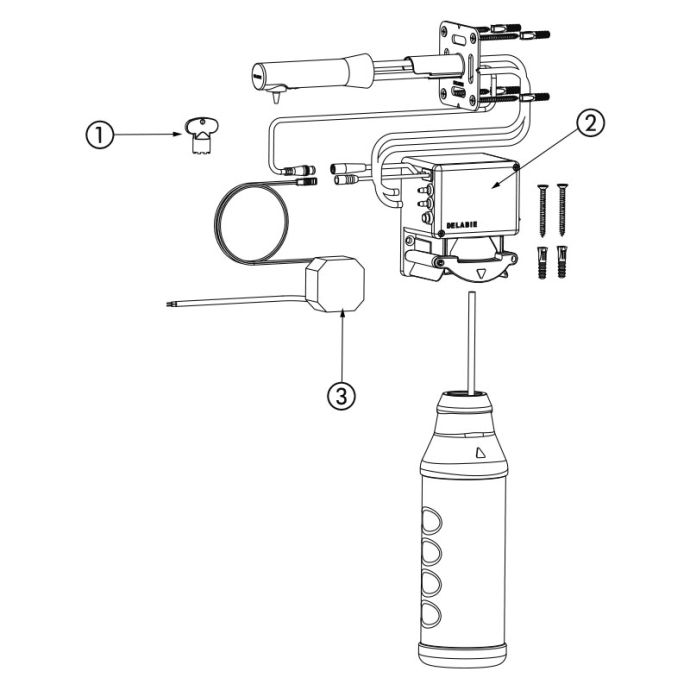

Spare parts
SPARE PARTS
BINOPTIC wall-mounted electronic soap dispenser
Ref. 512051BK
| 1. | 222429 |
|
Service key |
| 2. | 512BC |
|
Electronic control unit |
| 3. | 490240 |
|
Power supply |
VARIANTS
| 512051P | With 1 litre tank - chrome-plated 304 stainless steel | ||
|---|---|---|---|
| 512051S | With 1 litre tank - satin finish 304 stainless steel | ||
| 512151BK | With 1.20m flexible tube for remote tank - 304 stainless steel | ||
| 512151P | With 1.2m flexible tube for remote tank - chrome-plated 304 st. steel | ||
| 512151S | With 1.2m flexible tube for remote tank - satin finish 304 st. steel | ||
| 512111BK | CW - 1.20m flexible tube for remote tank - Stainless steel | ||
| 512111P | Cross wall, 1.2m flexible tube for remote tank - chrome 304 st. st | ||
| 512111S | Cross wall, 1.2m flexible tube for remote tank - satin finish 304 st. st |
