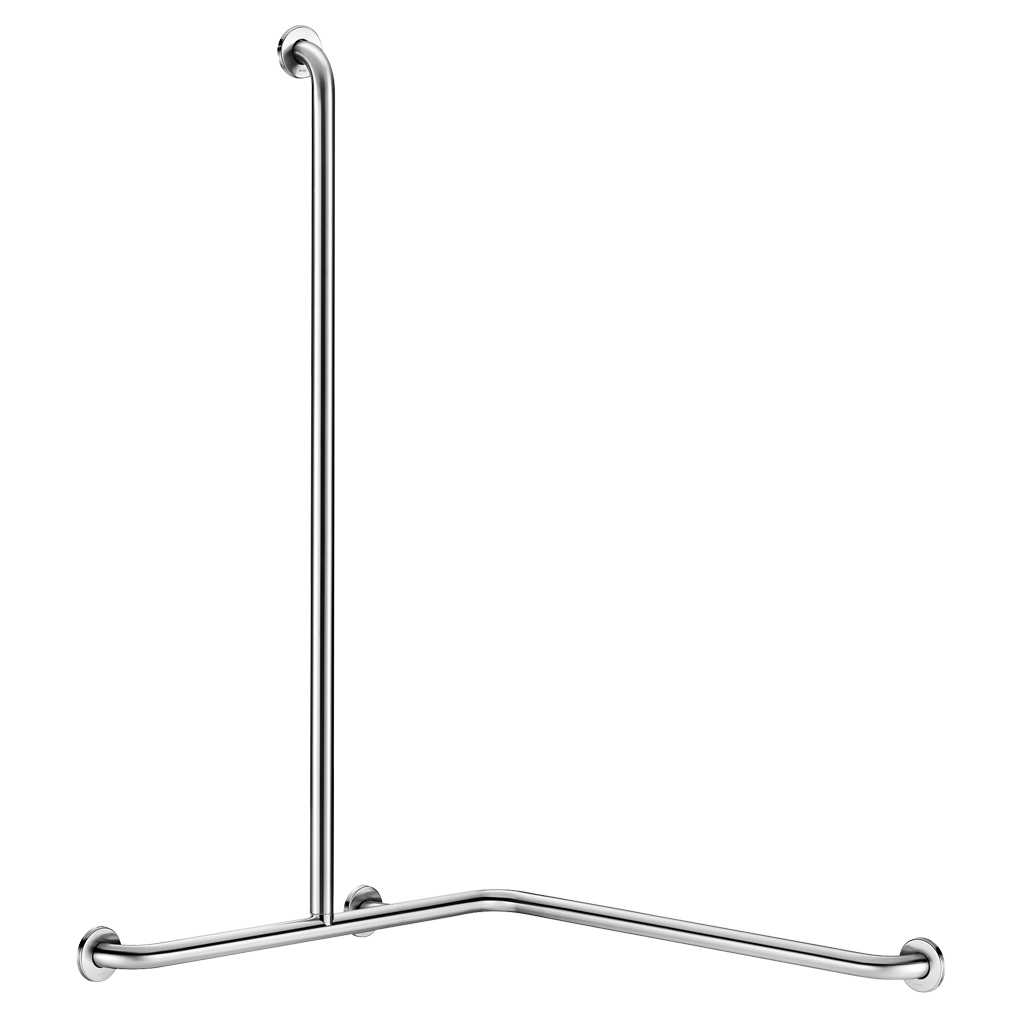

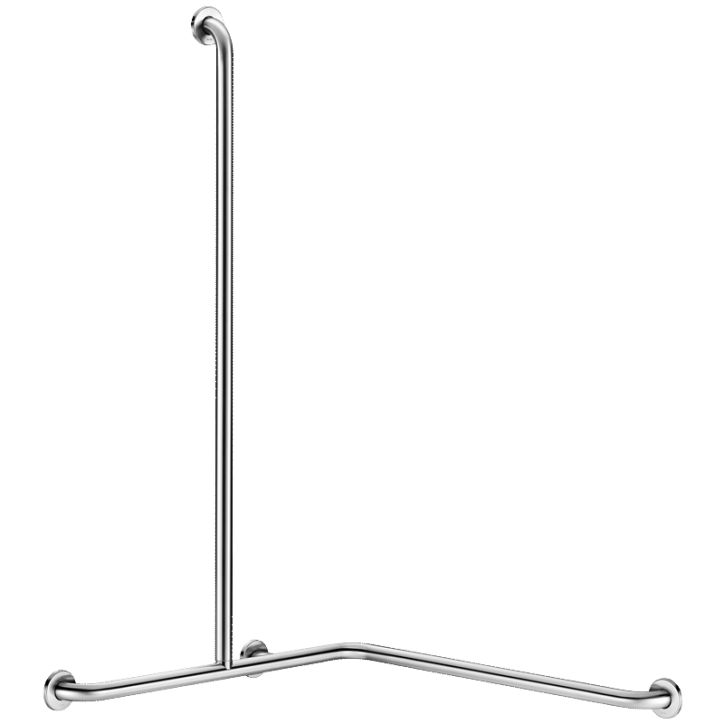

Angled shower grab bar with vertical bar, satin stainless steel

Ref. 5481GS
UltraSatin polished satin stainless steel, left model
Angled shower grab bar with vertical bar, satin stainless steel

Presentation

DESCRIPTION

Angled shower grab bar with vertical bar, satin stainless steel

Ref. 5481GS
Angled, two-wall shower grab bar with vertical bar Ø 32mm, for people with reduced mobility.
Left model.
Can support a removable shower seat (order separately).
Can be used as a support rail to support the user in an upright position.
Helps and secures entry and movement in the shower.
Can be used as a shower rail by adding a shower head holder and/or soap dish.
Dimensions: 1,150 x 750 x 750mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit”).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Fixings concealed by a 3-hole cover plate, Ø 72mm.
304 stainless steel plates and covers.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
30-year warranty. CE marked.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: reduces bacterial development

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: minimal space

Nettoyage aisé

UltraSatin: smooth surface is easy to clean

Characteristics

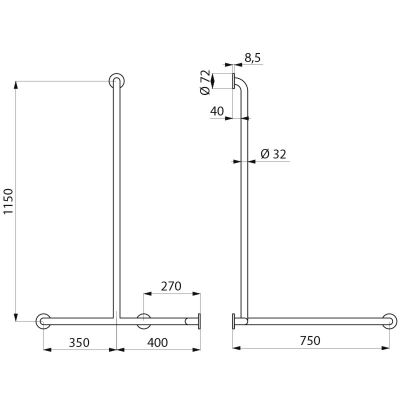

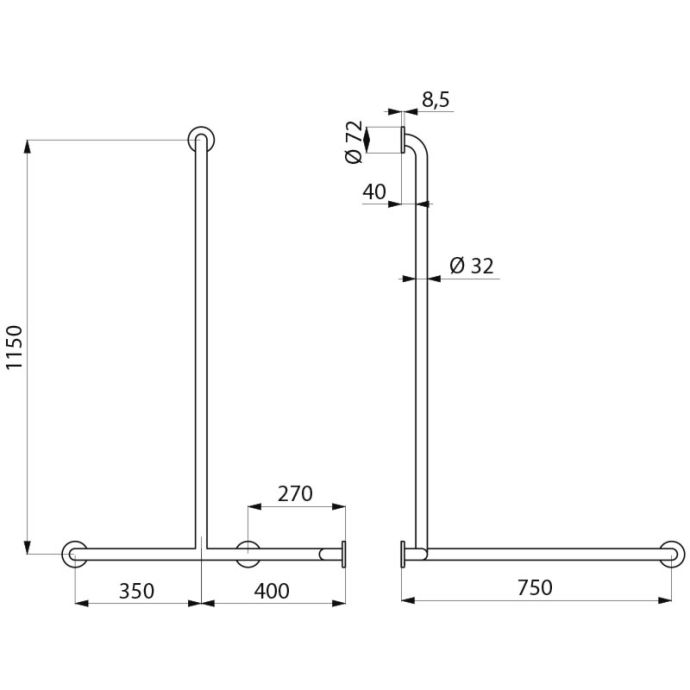

TECHNICAL CHARACTERISTICS

Angled shower grab bar with vertical bar, satin stainless steel

Ref. 5481GS
Height 1,150mm
Length 750mm
Width 750mm
Diameter Ø 32mm
Width to the wall 40mm
Finish 304 stainless steel UltraSatin polished satin
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Barre de douche d'angle avec remontée verticale Inox satiné

Ref. 5481GS

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

5481P Bright polished stainless steel UltraPolish - Sliding vertical riser rail
5481S Polished satin stainless steel UltraSatin - Sliding vertical riser rail
5481GP2 Bright polished stainless steel UltraPolish - Fixed vertical riser rail on the left
5481DP2 Bright polished stainless steel UltraPolish - Fixed vertical riser rail on the right
5481DS Polished satin stainless steel UltraSatin - Fixed vertical riser rail on the right
How to specify a disabled toilet
How to specify a disabled toilet

VARIANTS

5481P Bright polished stainless steel UltraPolish - Sliding vertical riser rail
5481S Polished satin stainless steel UltraSatin - Sliding vertical riser rail
5481GP2 Bright polished stainless steel UltraPolish - Fixed vertical riser rail on the left
5481DP2 Bright polished stainless steel UltraPolish - Fixed vertical riser rail on the right
5481DS Polished satin stainless steel UltraSatin - Fixed vertical riser rail on the right
